EMERSON – AVENTICS G 1 1/4 Regulator - 10 bar, R412006575 16500 L/min MU1-RGS
- RS Stock No.:
- 299-426
- Mfr. Part No.:
- R412006575
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£618.05
(exc. VAT)
£741.66
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £618.05 |
*price indicative
- RS Stock No.:
- 299-426
- Mfr. Part No.:
- R412006575
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Port Size | G 1 1/4 | |
| Product Type | Regulator | |
| Series | MU1-RGS | |
| Body Material | Die Cast Aluminium | |
| Maximum Flow Rate | 16500L/min | |
| Maximum Operating Pressure | 10 bar | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | No | |
| Overall Width | 118.5mm | |
| Overall Height | 225mm | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Port Size G 1 1/4 | ||
Product Type Regulator | ||
Series MU1-RGS | ||
Body Material Die Cast Aluminium | ||
Maximum Flow Rate 16500L/min | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals No | ||
Overall Width 118.5mm | ||
Overall Height 225mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

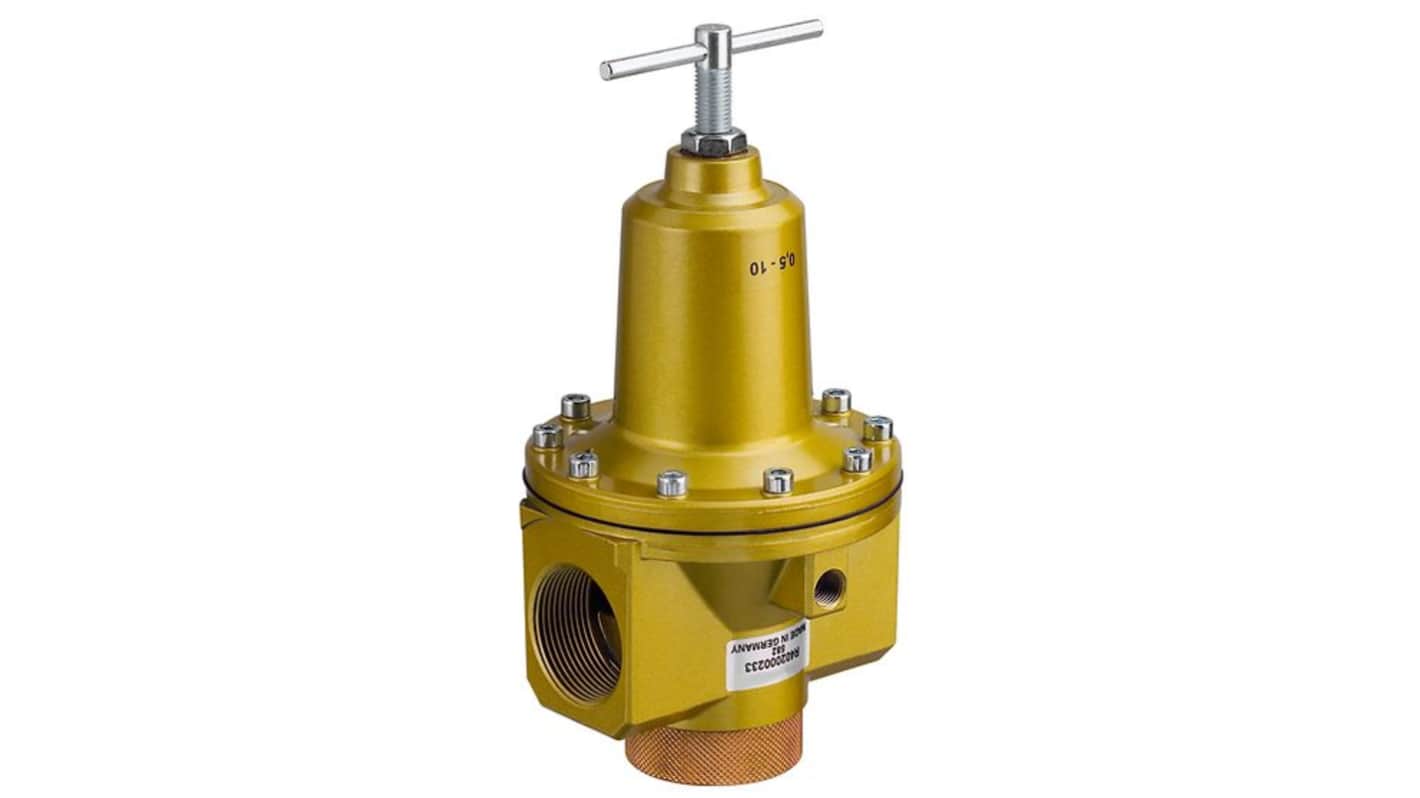

The Aventics Pressure regulator, Series MU1-RGS is designed for harsh environments, featuring large thread connections to ensure a high compressed air flow rate. It provides reliable filtration, regulation, and lubrication for optimal performance.
Regulation range Minimum 0.5 bar
Regulation range Maximum 10 bar
Working pressure Minimum 0.5 bar
Working pressure max 25 bar
