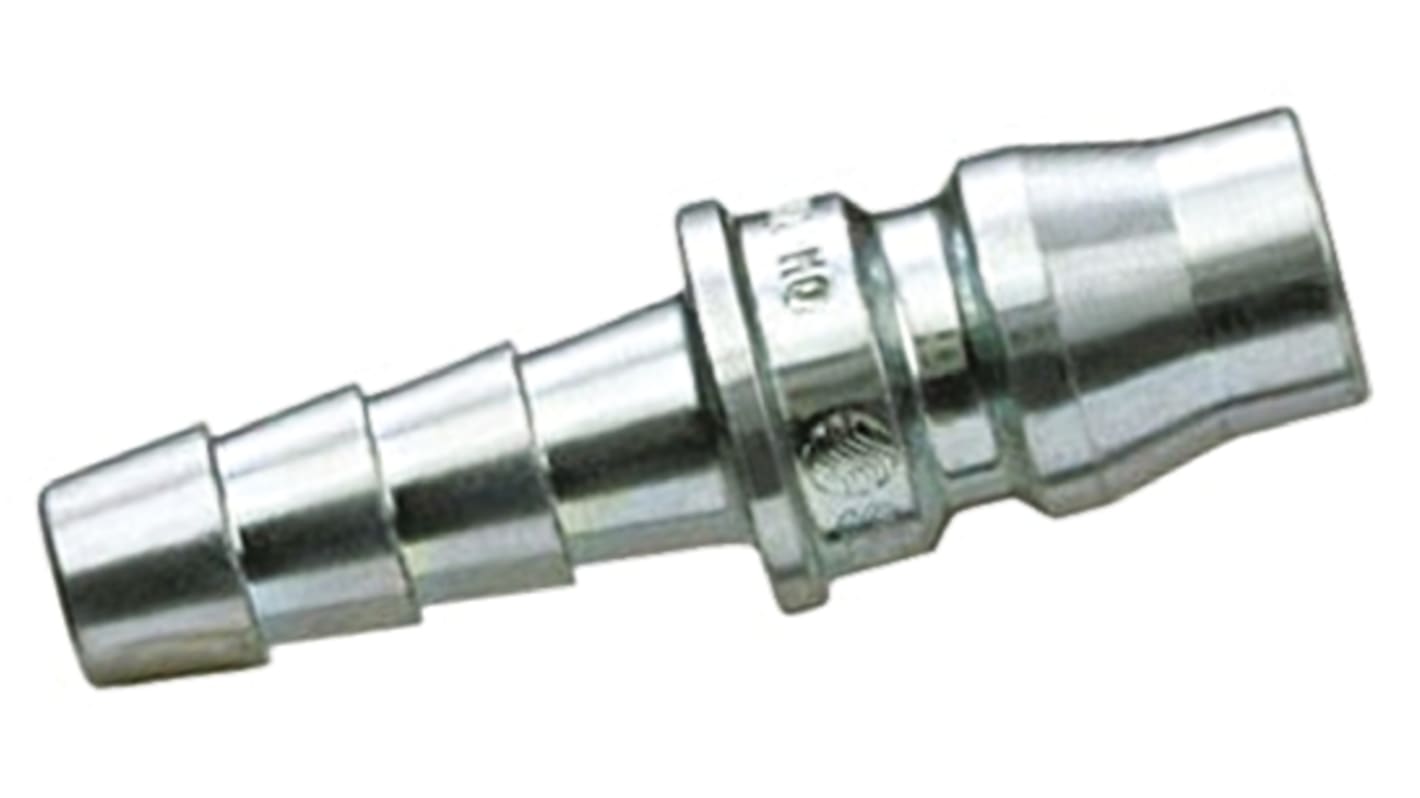

SMC Structural Steel Male Pneumatic Quick Connect Coupling, 12mm Hose Barb
- RS Stock No.:
- 743-8843
- Mfr. Part No.:
- KK130P-13B
- Brand:
- SMC
Image representative of range
Bulk discount available
Subtotal (1 bag of 5 units)*
£20.24
(exc. VAT)
£24.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £20.24 | £4.048 |
5 - 9 | £18.85 | £3.77 |
10 - 24 | £18.25 | £3.65 |
25 + | £17.86 | £3.572 |
*price indicative
- RS Stock No.:
- 743-8843
- Mfr. Part No.:
- KK130P-13B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Coupling Gender | Male | |
Coupling Type | Quick Connect Coupling Plug | |
Manufacturer Series | KK130 | |
Connection Type | Hose Barb | |
Hose Barb Connection | 12mm | |
Material | Structural Steel | |
Maximum Operating Pressure | 1.5 MPa | |
Finish | Zinc Chromated | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Coupling Gender Male | ||
Coupling Type Quick Connect Coupling Plug | ||
Manufacturer Series KK130 | ||
Connection Type Hose Barb | ||
Hose Barb Connection 12mm | ||
Material Structural Steel | ||
Maximum Operating Pressure 1.5 MPa | ||
Finish Zinc Chromated | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Non Compliant
- COO (Country of Origin):
- CN
KKA and KK130 Series
S type quick coupler KKA and KK130
Body material - stainless steel
Seal material - Fluoro rubber FKM
Integral check valve as standard
For water or air applications
Operating temp -5 to 100° C
Reduced liquid drip feature when uncoupling
Seal material - Fluoro rubber FKM
Integral check valve as standard
For water or air applications
Operating temp -5 to 100° C
Reduced liquid drip feature when uncoupling
SMC S Couplers
KK Series has a unique connection method. A slim body design and large effective area are achieved with a construction that does not use steel balls and therefore does not restrict the flow path. Blocks are avoided due to no valve spring located within the flow path. This is a lightweight coupler smaller in body size.
Note
Do not use the S couplers with a leak tester or for vacuum retention because they are not guaranteed for zero leakage
