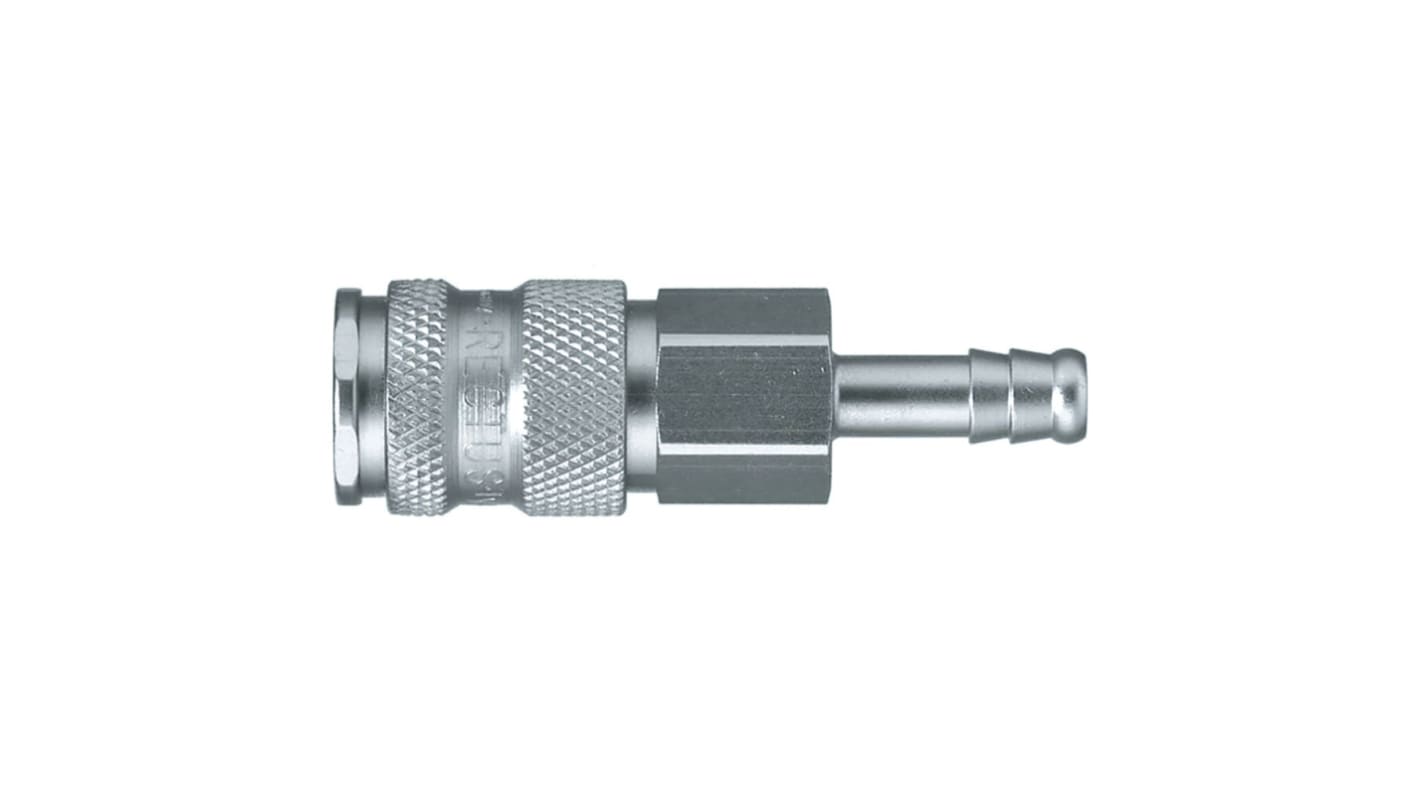

Legris Nickel Plated Brass Pneumatic Quick Connect Coupling Female/Male 23mm Universal Industrial Coupling
- RS Stock No.:
- 283-1441
- Mfr. Part No.:
- 25KBTF13MPN
- Brand:
- Legris
Subtotal (1 unit)*
£29.23
(exc. VAT)
£35.08
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 7 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £29.23 |
*price indicative
- RS Stock No.:
- 283-1441
- Mfr. Part No.:
- 25KBTF13MPN
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Series | 25 | |
| Sub Type | Universal Industrial Coupling | |
| Hose Barb Connection | 23mm | |
| Material | Nickel Plated Brass | |
| Thread Gender | Female/Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum Operating Pressure | 35 bar | |
| Finish | Nickel | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Legris | ||
Product Type Pneumatic Quick Connect Coupling | ||
Series 25 | ||
Sub Type Universal Industrial Coupling | ||
Hose Barb Connection 23mm | ||
Material Nickel Plated Brass | ||
Thread Gender Female/Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
Maximum Operating Pressure 35 bar | ||
Finish Nickel | ||
Standards/Approvals No | ||
The Legris Quick Coupling from 25 series is an universal industrial coupling with an European profile. This coupling system has single hand operation. It has an UltraFlo valve for optimum flow and low pressure drop. This series stands out for its robust design and long service life even with the harshest use.
Lower connection forces
Easy and fast connection
