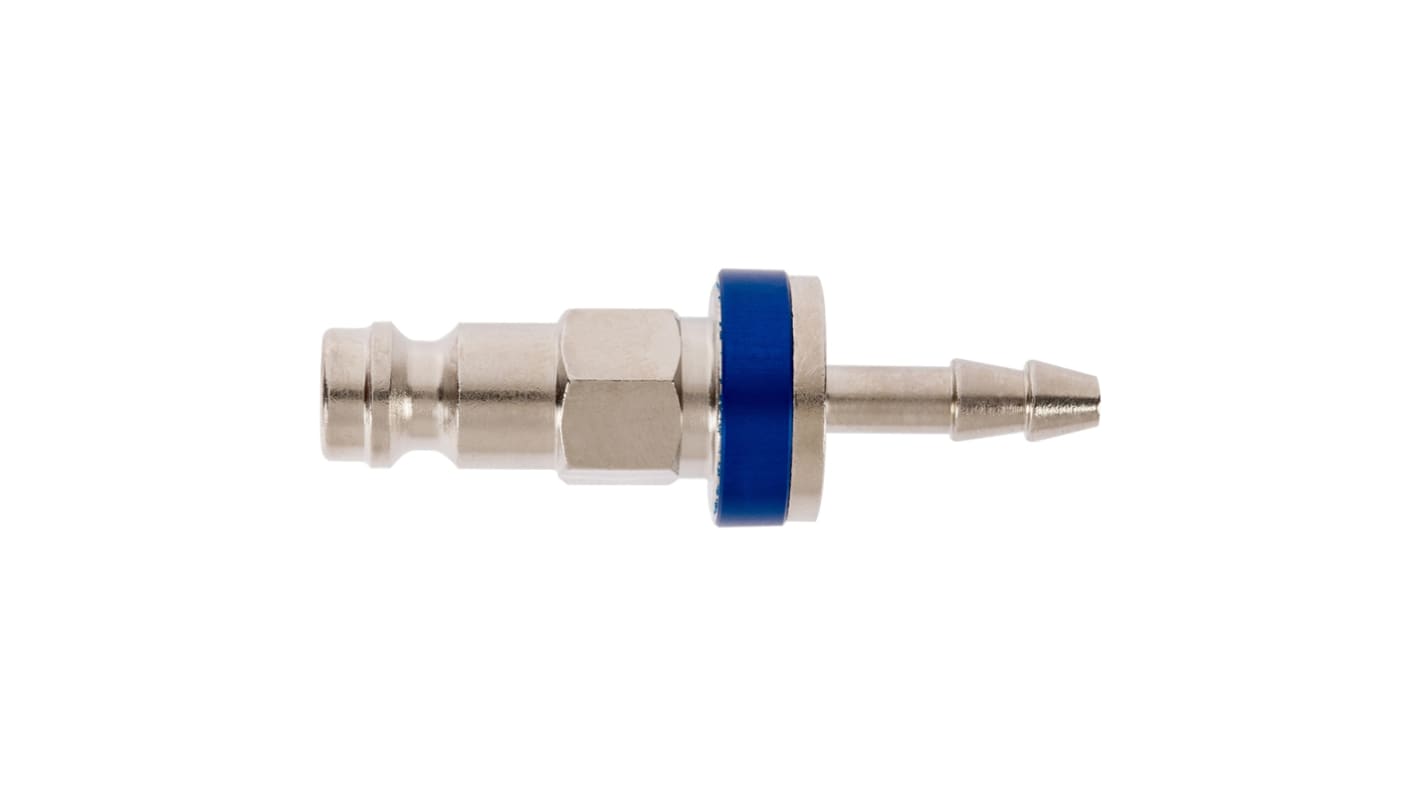

Legris Nickel Plated Brass Pneumatic Quick Connect Coupling Female, Male 9mm Single Shut-Off
- RS Stock No.:
- 283-1355
- Mfr. Part No.:
- 21SFTF04MXN
- Brand:
- Legris
Subtotal (1 unit)*
£2.22
(exc. VAT)
£2.66
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £2.22 |
*price indicative
- RS Stock No.:
- 283-1355
- Mfr. Part No.:
- 21SFTF04MXN
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Legris | |
| Product Type | Pneumatic Quick Connect Coupling | |
| Thread Size | 4 mm | |
| Series | 21 | |
| Sub Type | Single Shut-Off | |
| Hose Barb Connection | 9mm | |
| Material | Nickel Plated Brass | |
| Thread Gender | Female, Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum Operating Pressure | 35 bar | |
| Finish | Nickel Plated | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Legris | ||
Product Type Pneumatic Quick Connect Coupling | ||
Thread Size 4 mm | ||
Series 21 | ||
Sub Type Single Shut-Off | ||
Hose Barb Connection 9mm | ||
Material Nickel Plated Brass | ||
Thread Gender Female, Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
Maximum Operating Pressure 35 bar | ||
Finish Nickel Plated | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE
The Legris Quick Coupling from Series 21 is a mini industrial coupling with the world most popular profile in this nominal diameter. This coupling series has above average flow performance for liquid and gaseous media. This series 21 coupling stands out for its small dimensions and a large band width in materials and valve variants.
Single hand operation
Easy and fast connection
Most common plug profile worldwide
