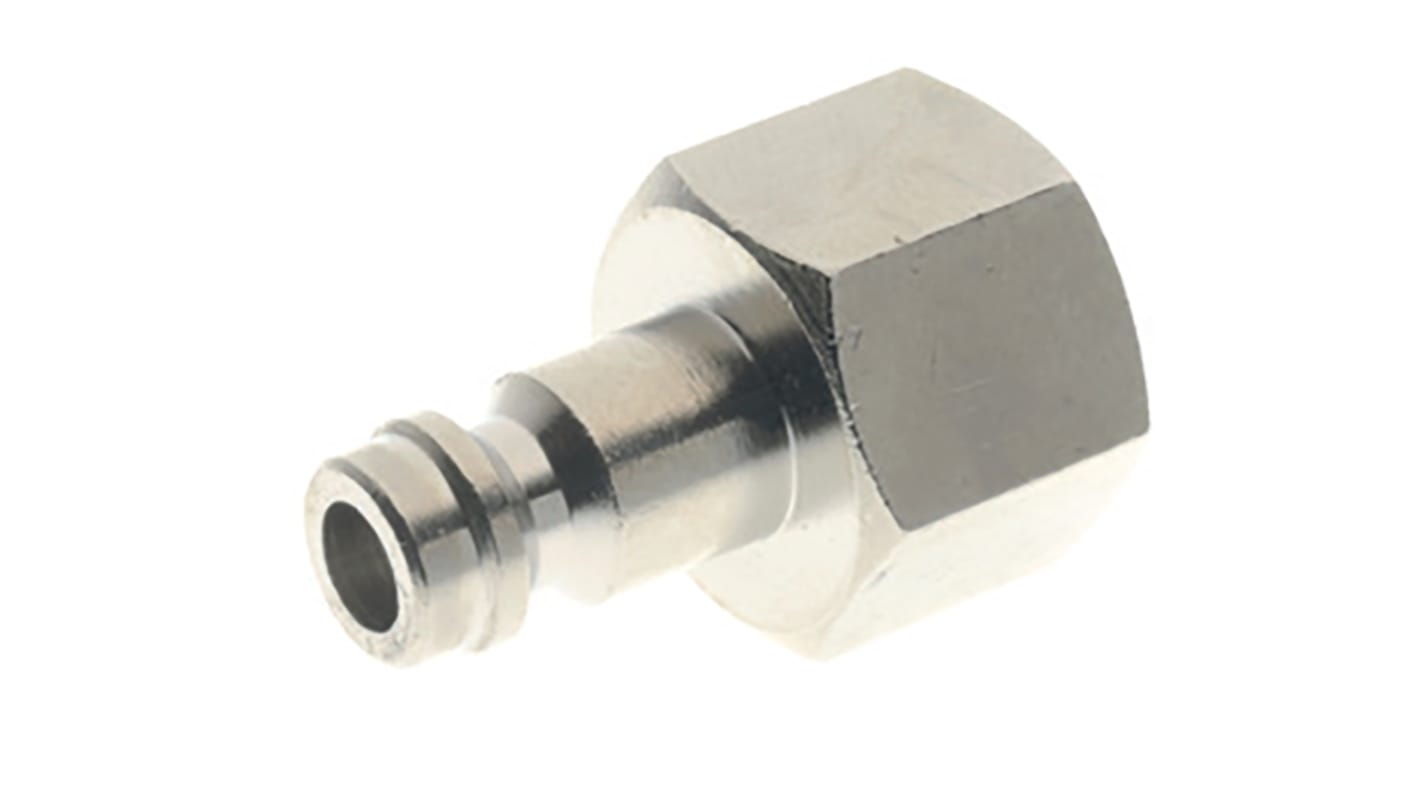

RS PRO Nickel Plated Brass Coupler Nipple Male ISO 228 Class A 0.13in
- RS Stock No.:
- 176-1946
- Brand:
- RS PRO
Subtotal (1 pack of 10 units)*
£12.00
(exc. VAT)
£14.40
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 200 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £1.20 | £12.00 |
*price indicative
- RS Stock No.:
- 176-1946
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thread Standard | ISO 228 Class A | |
| Product Type | Coupler Nipple | |
| Thread Size | 1/8 in | |
| Hose Barb Connection | 0.13in | |
| Material | Nickel Plated Brass | |
| Thread Gender | Male | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Maximum Operating Pressure | 12 bar | |
| Finish | Nickel Plated | |
| Standards/Approvals | PED, 2014/68/UE, UNI ISO 6150 B-12, 1907/2006, 2011/65/CE, ISO 228 Class A, UNI ISO 6150 C-10 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Thread Standard ISO 228 Class A | ||
Product Type Coupler Nipple | ||
Thread Size 1/8 in | ||
Hose Barb Connection 0.13in | ||
Material Nickel Plated Brass | ||
Thread Gender Male | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Maximum Operating Pressure 12 bar | ||
Finish Nickel Plated | ||
Standards/Approvals PED, 2014/68/UE, UNI ISO 6150 B-12, 1907/2006, 2011/65/CE, ISO 228 Class A, UNI ISO 6150 C-10 | ||
RS PRO Female Plug Connector
The RS PRO 1/8in G female quick-connect coupling has MIGNON profile and is manufactured with nickel-plated brass, offering excellent durability. This socket performs a single-handed operation. It can couple with a male connector.
Interchangeable with:
RECTUS/LEGRIS, PARKER 21/90, CAMOZZI 5050 - 5150, CEJN 220 and FESTO KD - KS 3
Features and Benefits
• Light and compact
• Moulding coupler
• Multi socket
• Operating pressure is 12bar
• Operating temperature ranges between -20°C and 80°C
• Safety version
• Silicon free
Applications
• Compressed air and tools
• Cooling system
• Food and beverage
• Inert gases, vacuum
• Life and sciences
• Pneumatic and fluid technology
