Subtotal (1 pack of 10 units)*
£103.94
(exc. VAT)
£124.73
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £10.394 | £103.94 |
*price indicative
- RS Stock No.:
- 176-1918
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thread Standard | BSP | |
| Product Type | Quick Air Coupling | |
| Thread Size | 3/8 in | |
| Hose Barb Connection | 12mm | |
| Material | Nickel Plated Brass | |
| Thread Gender | Female | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 80°C | |
| Maximum Operating Pressure | 25 bar | |
| Standards/Approvals | UNI ISO 6150 B-12, 1907/2006, ISO 228 Class A, PED, UNI ISO 6150 C-10, 2011/65/CE, 2014/68/UE | |
| Finish | Nickel Plated | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Thread Standard BSP | ||
Product Type Quick Air Coupling | ||
Thread Size 3/8 in | ||
Hose Barb Connection 12mm | ||
Material Nickel Plated Brass | ||
Thread Gender Female | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 80°C | ||
Maximum Operating Pressure 25 bar | ||
Standards/Approvals UNI ISO 6150 B-12, 1907/2006, ISO 228 Class A, PED, UNI ISO 6150 C-10, 2011/65/CE, 2014/68/UE | ||
Finish Nickel Plated | ||

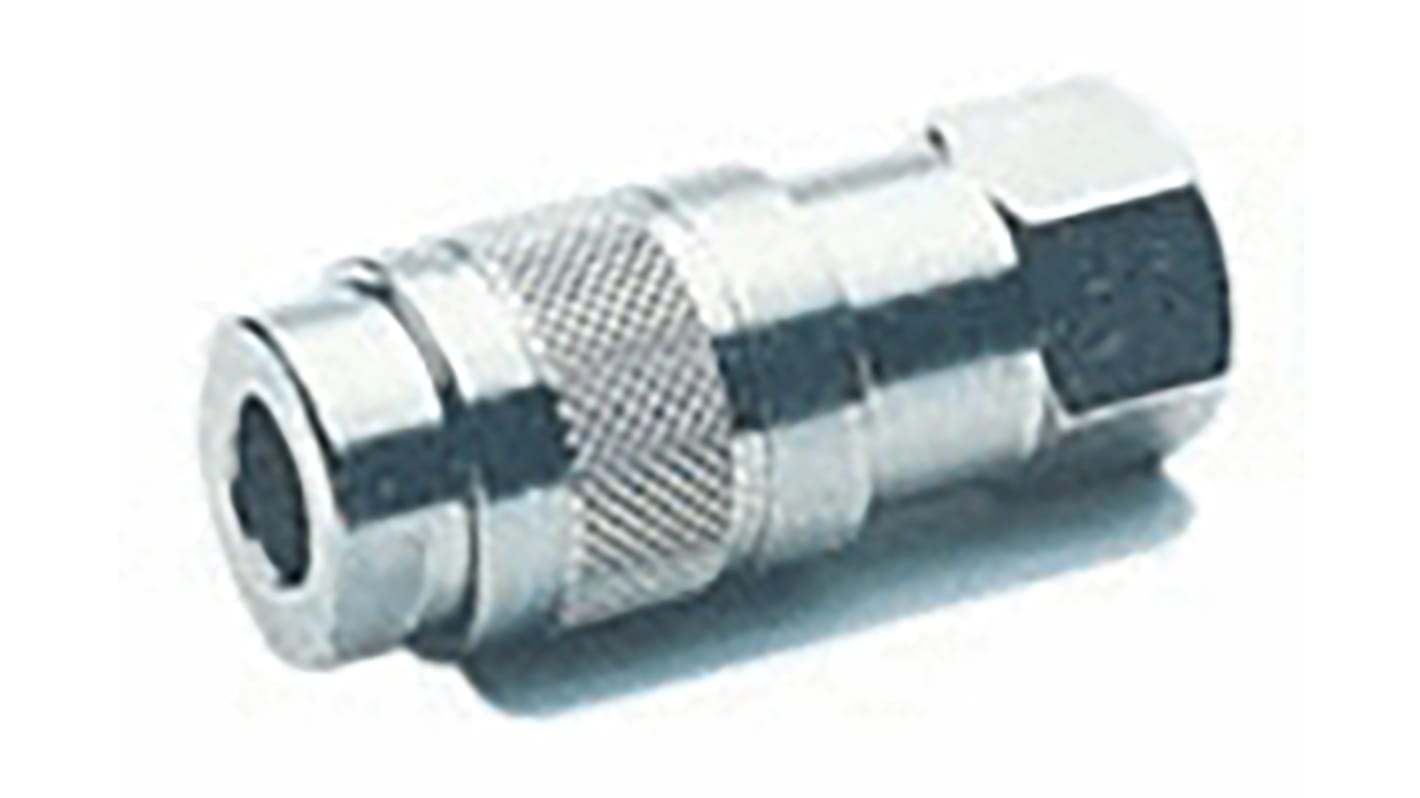

RS PRO Female Quick Coupling
The RS PRO 3/8in G female quick-connect coupling socket is and is manufactured from nickel-plated brass, offering excellent durability. This socket performs a single-handed operation.
Interchangeable with:
RECTUS/LEGRIS 18
Features and Benefits
• Light and compact
• Moulding coupler
• Multi socket
• Operating pressure is 25bar
• Operating temperature ranges between -20°C and 80°C
• Safety version
• Silicon Free
• Standard profile
• Thread standard is BSP
Applications
• Compressed air and tools
• Cooling system
• Food and beverage
• Inert gases, vacuum
• Life and sciences
• Pneumatic and fluid technology
Certifications
• UNI ISO 6150 C 10
