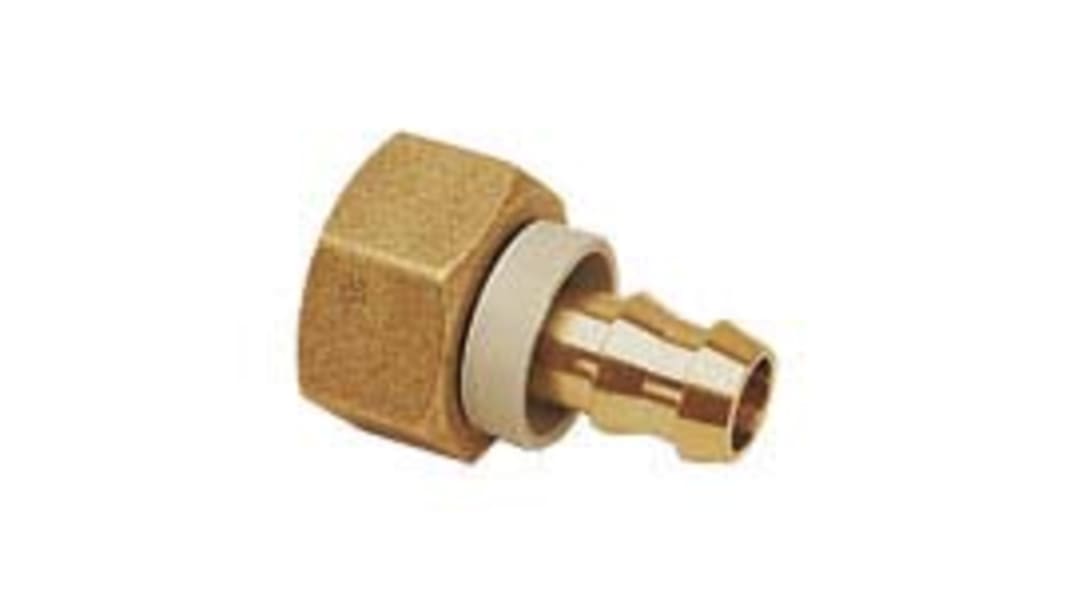

Legris Brass Female Pneumatic Quick Connect Coupling, 16mm Hose Barb
- RS Stock No.:
- 146-6908
- Mfr. Part No.:
- 0132 14 60
- Brand:
- Legris
Subtotal (1 pack of 2 units)*
£12.27
(exc. VAT)
£14.724
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 64 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 + | £6.135 | £12.27 |
*price indicative
- RS Stock No.:
- 146-6908
- Mfr. Part No.:
- 0132 14 60
- Brand:
- Legris
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Legris | |
Coupling Gender | Female | |
Connection Standard | ATEX, PED 97/23/EC | |
Coupling Type | Quick Connect Coupling Plug | |
Manufacturer Series | 0132 | |
Connection Type | Hose Barb | |
Hose Barb Connection | 16mm | |
Material | Brass | |
Maximum Operating Pressure | 16bar | |
Seal Material | Technical Polymer | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +100°C | |
Select all | ||
---|---|---|
Brand Legris | ||
Coupling Gender Female | ||
Connection Standard ATEX, PED 97/23/EC | ||
Coupling Type Quick Connect Coupling Plug | ||
Manufacturer Series 0132 | ||
Connection Type Hose Barb | ||
Hose Barb Connection 16mm | ||
Material Brass | ||
Maximum Operating Pressure 16bar | ||
Seal Material Technical Polymer | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- FR
Quick connection of self-fastening hose to a female port. Available from 6 to 22 mm o. d
