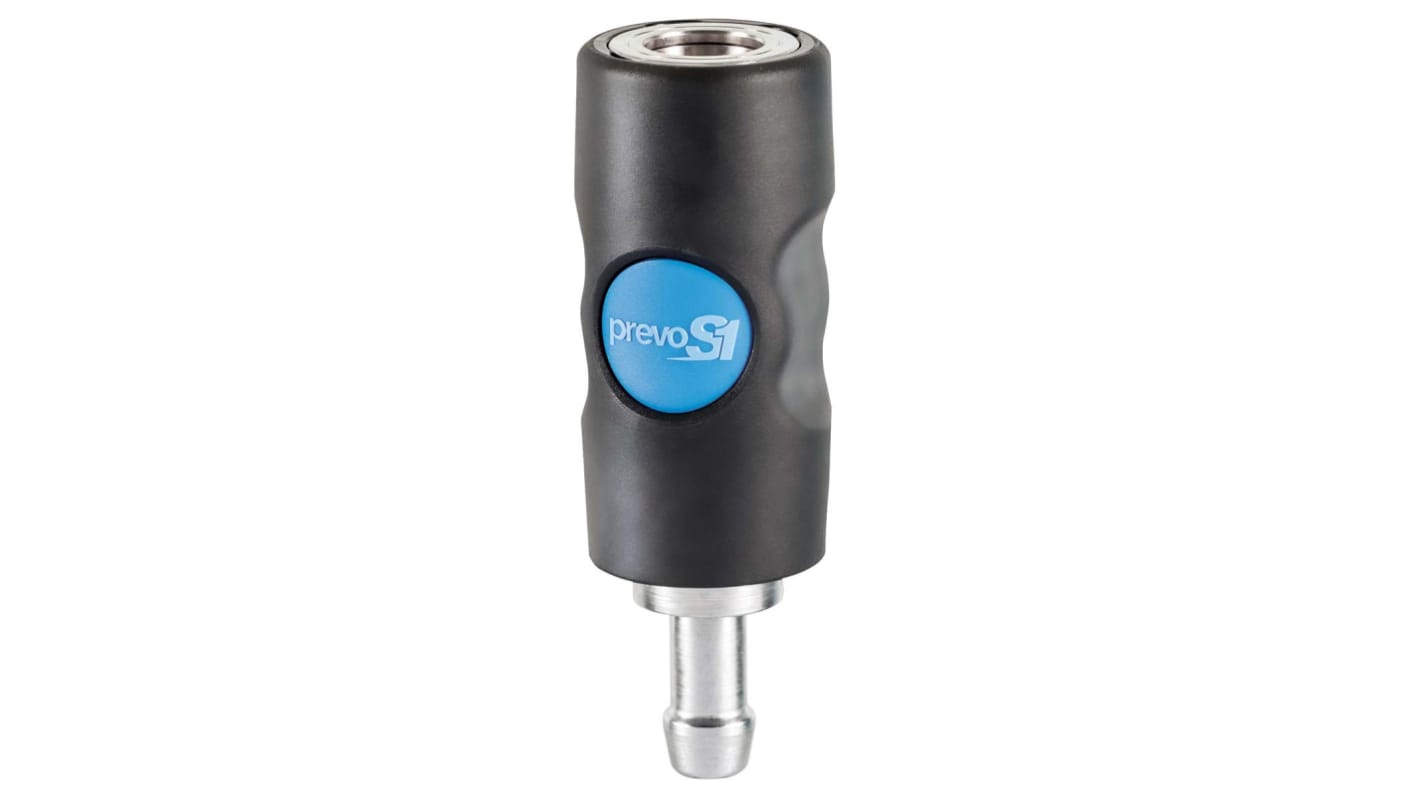

PREVOST Composite Body Safety Quick Connect Coupling, 10mm Hose Barb
- RS Stock No.:
- 135-8746
- Mfr. Part No.:
- ISI 081810CP
- Brand:
- PREVOST
Subtotal (1 unit)*
£40.17
(exc. VAT)
£48.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £40.17 |
*price indicative
- RS Stock No.:
- 135-8746
- Mfr. Part No.:
- ISI 081810CP
- Brand:
- PREVOST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | PREVOST | |
Connection Standard | ISO B8 | |
Coupling Type | Quick Connect Coupling Socket | |
Manufacturer Series | prevoS1 ISI 08 | |
Connection Type | Hose Barb | |
Hose Barb Connection | 10mm | |
Material | Composite Body | |
Maximum Operating Pressure | 12bar | |
Seal Material | NBR | |
Minimum Operating Temperature | -15°C | |
Anti Whip Hose Safety | Yes | |
Maximum Operating Temperature | +70°C | |
Select all | ||
---|---|---|
Brand PREVOST | ||
Connection Standard ISO B8 | ||
Coupling Type Quick Connect Coupling Socket | ||
Manufacturer Series prevoS1 ISI 08 | ||
Connection Type Hose Barb | ||
Hose Barb Connection 10mm | ||
Material Composite Body | ||
Maximum Operating Pressure 12bar | ||
Seal Material NBR | ||
Minimum Operating Temperature -15°C | ||
Anti Whip Hose Safety Yes | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- FR
ISO B8 Pneumatic Couplings
A range of pneumatic quick connect safety couplings and adapters from Prevost S1 series. Compatible with US MIL 4109 and ISO 6150 profile B fittings. The S1 series disconnects and safely decompresses with one button and incorporates an aerodynamic valve seal design to prevent leaks and optimise airflow. S1 series pneumatic couplings can help reduce energy costs and increase productivity by eliminating any significant pressure loss and dramatically reducing downtime and maintenance.
Features and Benefits
• Ergonomic shape
• Non-slip surface allows firm grip
• Lightweight and compact size
• Abrasion, corrosion and crush resistant
• Compatible with ISO 6150 B8 and MIL 4109 couplings
• Simultaneous decompression and disconnection
• Colour coded for easy identification of profile
• Flow rate 2028 L/min @ 6 bar
Applications
• Assembly lines
• Automotive
• Mechanical manufacturing
• Machine workshops
• Printing Industry
• Textile industry
• Wood and plastics industries
• Technical education

ISO B8 Connectors
