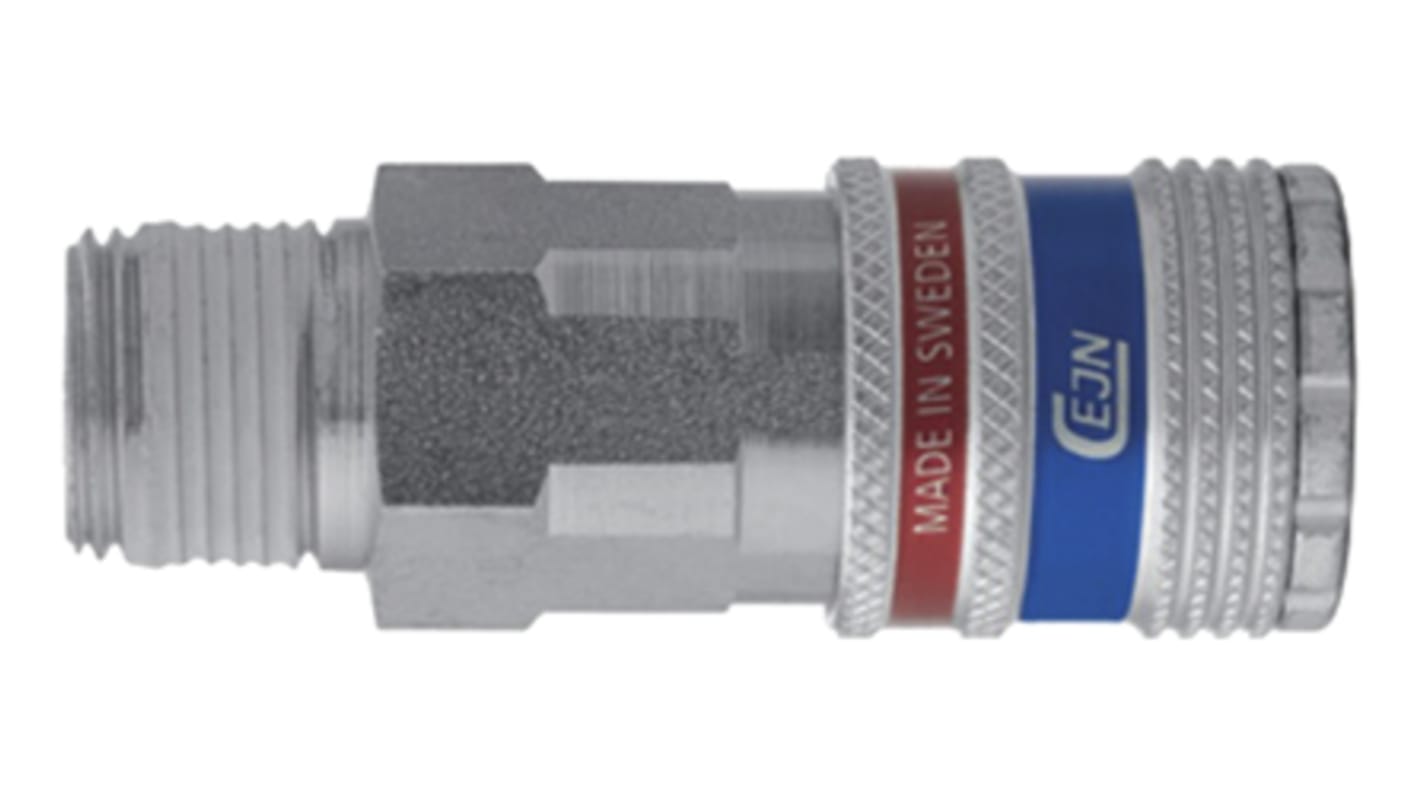

CEJN Pneumatic Quick Connect Coupling Brass, Stainless Steel 1/4 in Threaded

  • RS Stock No. 121-8039
  • Mfr. Part No. C103152152
  • Brand CEJN
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): SE
Product Details

CEJN eSafe 315 Series

CEJN’s eSafe pneumatic couplings combine high performance and ease of use in a compact and robust design. The easy to use two stage disconnection vents pressure before disconnection, reducing noise and the risk of injury from hose whip and can be operated with using one hand.
The high flow capacity and a minimal pressure drop of the eSafe quick connect couplings help reduce losses and increased productivity and efficiency.

Features and Benefits

Complies with ISO 4414 and EN 983
86N Connection force
7.5mm nominal flow diameter
1950 l/min flow rate
Asian Standard Compatible

Applications

CEJN's eSafe coulings are suitable for use in a vast range or workplaces using compressed air including
carpentry, the manufacturing industry, automotive repair shops and mining

Interchanges to other Brand Profiles

Specifications
Attribute Value
Coupling Gender Male
Threaded Connection R 1/4 Male
Manufacturer Series 315 eSafe
Connection Type Threaded
Thread Size 1/4in
Material Brass, Stainless Steel
Thread Gender Male
Thread Standard R
Maximum Operating Pressure 16 bar
Finish Zinc Plated
Seal Material NBR
Minimum Operating Temperature -20°C
Maximum Operating Temperature +100°C
16 In stock for FREE next working day delivery
Price Each
£ 22.61
(exc. VAT)
£ 27.13
(inc. VAT)
Units
Per unit
1 +
£22.61
