RS PRO Plastic, Steel Female Pneumatic Quick Connect Coupling, NPT 1/8 Male Threaded
- RS Stock No.:
- 325-561
- Brand:
- RS PRO
Subtotal (1 unit)*
£17.50
(exc. VAT)
£21.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.50 |
*price indicative
- RS Stock No.:
- 325-561
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Threaded Connection | NPT 1/8 Male | |
| Coupling Gender | Female | |
| Connection Standard | ISO 6150 B-12 | |
| Thread Size | 1/8in | |
| Coupling Type | Quick Connect Coupling Socket | |
| Connection Type | Threaded | |
| Material | Plastic, Steel | |
| Thread Gender | Male | |
| Thread Standard | NPT | |
| Maximum Operating Pressure | 30bar | |
| Finish | Nickel Plated | |
| Minimum Operating Temperature | -20°C | |
| Seal Material | NBR | |
| Maximum Operating Temperature | 100°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Threaded Connection NPT 1/8 Male | ||
Coupling Gender Female | ||
Connection Standard ISO 6150 B-12 | ||
Thread Size 1/8in | ||
Coupling Type Quick Connect Coupling Socket | ||
Connection Type Threaded | ||
Material Plastic, Steel | ||
Thread Gender Male | ||
Thread Standard NPT | ||
Maximum Operating Pressure 30bar | ||
Finish Nickel Plated | ||
Minimum Operating Temperature -20°C | ||
Seal Material NBR | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TR

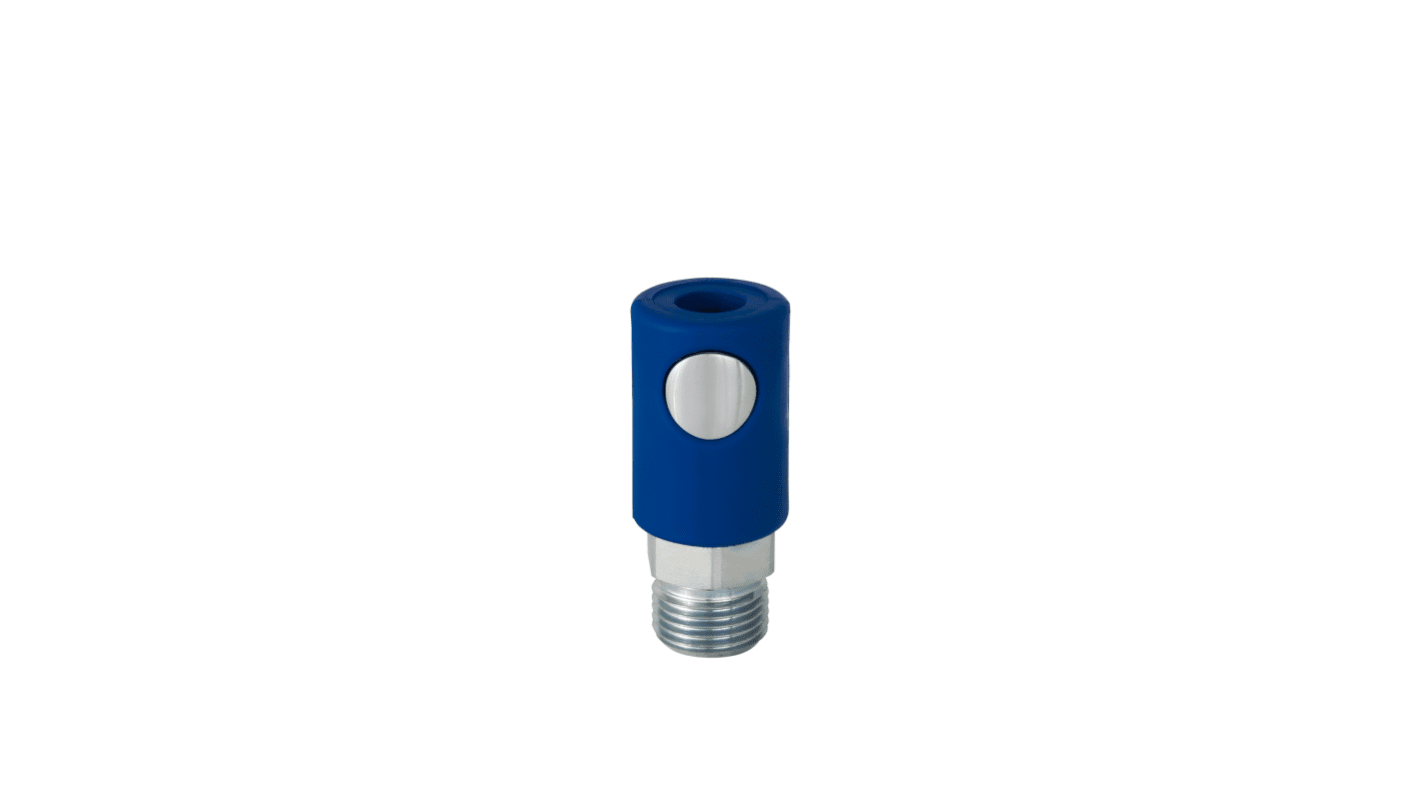

RS PRO Pneumatic Quick Connect Coupling, 1/8 in Male NPT
The RS PRO Pneumatic Quick Connect Coupling Socket is designed for efficient and safe disconnection in pneumatic systems. Utilising a nitrile rubber seal, it ensures durability and effective sealing. Ideal for robotic assembly lines and various industrial equipment, this coupling offers a fully automatic disconnection process with a simple button press.
Features and Benefits
Maximum operating pressure of 30 bar, ensuring robust performance
Operating temperature range from -20°C to +100°C, suitable for diverse environments
Constructed from steel and plastic with a nickel and zinc plated finish, providing corrosion resistance
Single shut off feature, enhancing safety during disconnection
DN5.5 connection standard, ensuring compatibility with various systems
ISO 6150-B-12 compliance, meeting international standards
Industrial interchangeable 1/4 inch, offering versatility
1-Stage operation, simplifying the connection process
Compatible with multiple brands, including PARKER, RECTUS, CEJN, HANSEN, and ATLAS COPCO
Operating temperature range from -20°C to +100°C, suitable for diverse environments
Constructed from steel and plastic with a nickel and zinc plated finish, providing corrosion resistance
Single shut off feature, enhancing safety during disconnection
DN5.5 connection standard, ensuring compatibility with various systems
ISO 6150-B-12 compliance, meeting international standards
Industrial interchangeable 1/4 inch, offering versatility
1-Stage operation, simplifying the connection process
Compatible with multiple brands, including PARKER, RECTUS, CEJN, HANSEN, and ATLAS COPCO
Applications
Robotic assembly lines
Industrial equipment
Pneumatic systems
Industrial equipment
Pneumatic systems
Additional Information
Compatible with Industrial interchange 1/4 inch and TST 024
Meets US-MIL-SPEC-C-4109 standards
Meets US-MIL-SPEC-C-4109 standards
