NorgrenV07 1/4 in Threaded Pressure Relief Valve 9 bar
- RS Stock No.:
- 398-9114
- Mfr. Part No.:
- V07-200-NNLG
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£48.40
(exc. VAT)
£58.08
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 47 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £48.40 |
| 5 - 9 | £46.94 |
| 10 + | £45.37 |
*price indicative
- RS Stock No.:
- 398-9114
- Mfr. Part No.:
- V07-200-NNLG
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Maximum Operating Pressure | 9 bar | |
| Product Type | Pressure Relief Valve | |
| Minimum Operating Pressure | 0.3bar | |
| Inlet Connection Type | Threaded | |
| Inlet Connection Size | 1/4 in | |
| Body Material | Zinc Alloy | |
| Seal Material | Nitrile Rubber (NBR) | |
| Width | 38mm | |
| Inlet Port Gender | Female | |
| Minimum Operating Temperature | -34°C | |
| Outlet Thread Standard | G | |
| Outlet Connection Type | Threaded | |
| Outlet Connection Size | 1/4 in | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | No | |
| Height | 75mm | |
| Series | V07 | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Maximum Operating Pressure 9 bar | ||
Product Type Pressure Relief Valve | ||
Minimum Operating Pressure 0.3bar | ||
Inlet Connection Type Threaded | ||
Inlet Connection Size 1/4 in | ||
Body Material Zinc Alloy | ||
Seal Material Nitrile Rubber (NBR) | ||
Width 38mm | ||
Inlet Port Gender Female | ||
Minimum Operating Temperature -34°C | ||
Outlet Thread Standard G | ||
Outlet Connection Type Threaded | ||
Outlet Connection Size 1/4 in | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals No | ||
Height 75mm | ||
Series V07 | ||
RoHS Status: Exempt

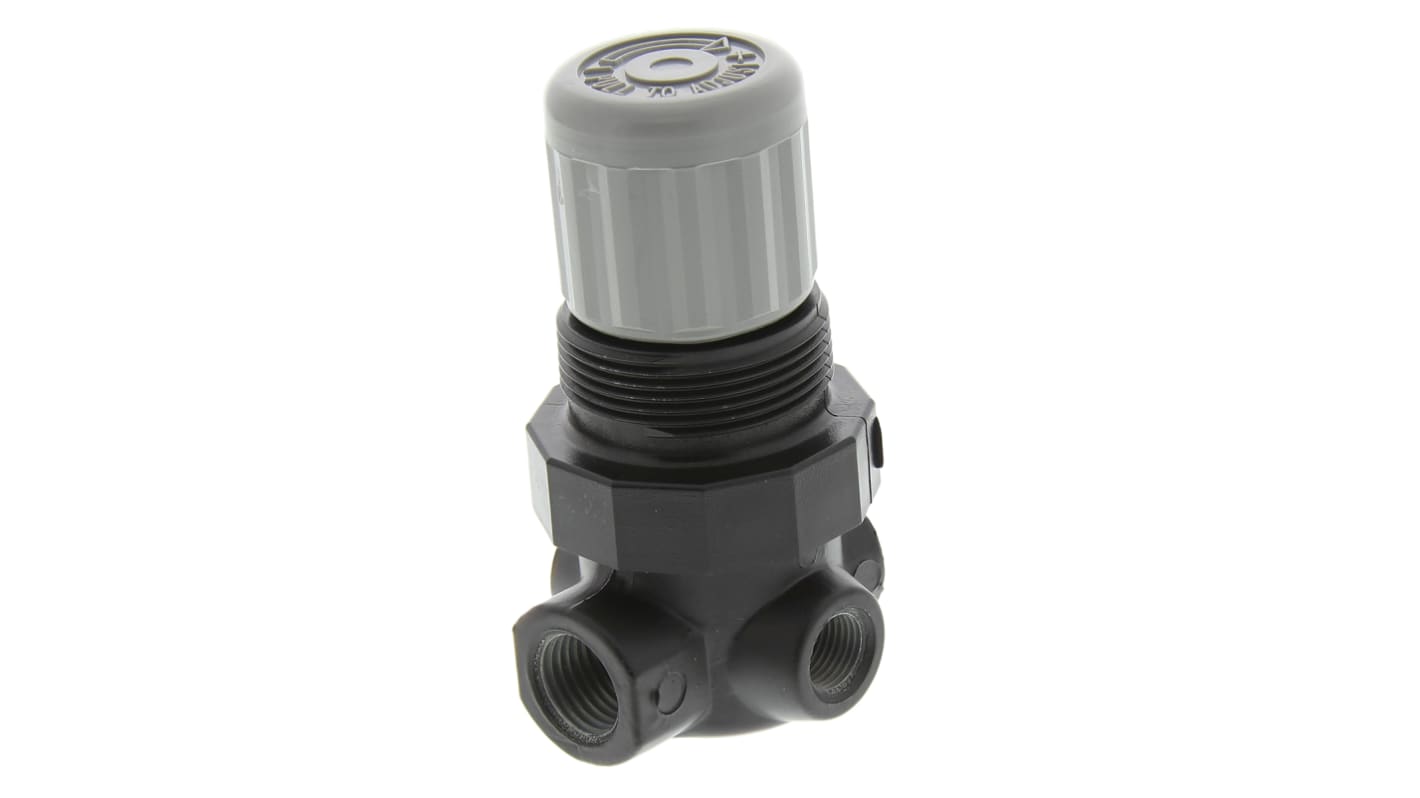

IMI Norgren Pressure Relief Valve, 0.3 to 9 Bar Outlet Pressure, G1/4 Thread - V07 Series - V07-200-NNLG
This relief valve from IMI Norgren prevents overpressures from damaging your air-powered application. Designed to open automatically when your system's pressure climbs beyond its threshold, the unit ensures a fast-acting response that stops high pressures from becoming dangerous. A built-in knob lets you set the device's threshold between 0.3 and 9 bar, providing you with close control over your operation. A push-to-lock design protects the valve against tampering and accidental adjustment to minimise the risk of disruption.
Features & Benefits
• Relieves inlet pressures up to 20 bar to easily handle demanding loads and pressure spikes
• Durable zinc housing resists damage from corrosion and impacts to ensure a reliable connection
• Comes without a gauge to fit into low-profile pneumatic systems
• Airtight nitrile rubber seal prevents pressure leakage to maintain optimal system conditions
Applications
• Vehicle brakes
• Textiles manufacture
• Rail industry
• Packing plants
Can I mount a gauge onto this valve?
Yes, you can mount your own gauge onto the unit's front-facing gauge port. The valve uses an R1/8 thread connection to pair with IMI Norgren's range of pressure gauges (for example, 822-4009).
