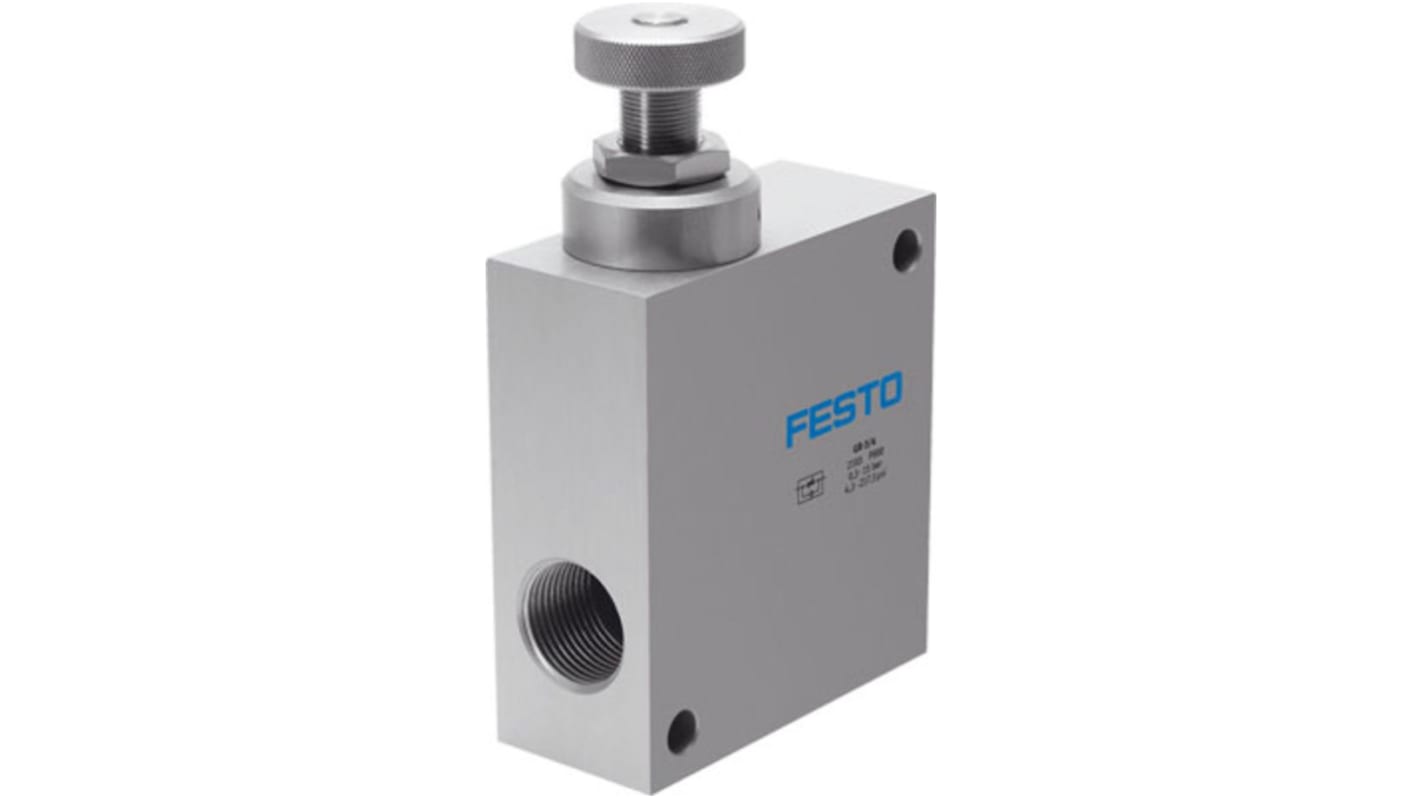

Festo GR-3/4 Pressure Relief Valve G 3/4, GR-3/4
- RS Stock No.:
- 203-8664
- Mfr. Part No.:
- GR-3/4
- Brand:
- Festo
Subtotal (1 unit)*
£398.46
(exc. VAT)
£478.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £398.46 |
*price indicative
- RS Stock No.:
- 203-8664
- Mfr. Part No.:
- GR-3/4
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Maximum Operating Pressure | 15bar | |
Minimum Operating Pressure | 0.3bar | |
Inlet Port Size | 3/4 in | |
Body Material | Wrought Aluminium Alloy | |
Manufacturer Series | GR-3/4 | |
Seal Material | Nitrile Rubber | |
Dimensions | 88 x 42mm | |
Inlet Port Thread Standard | G | |
Inlet Port Gender | Female | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Standards Met | ISO8573-1:2010, RoHS Compliant | |
Select all | ||
---|---|---|
Brand Festo | ||
Maximum Operating Pressure 15bar | ||
Minimum Operating Pressure 0.3bar | ||
Inlet Port Size 3/4 in | ||
Body Material Wrought Aluminium Alloy | ||
Manufacturer Series GR-3/4 | ||
Seal Material Nitrile Rubber | ||
Dimensions 88 x 42mm | ||
Inlet Port Thread Standard G | ||
Inlet Port Gender Female | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Standards Met ISO8573-1:2010, RoHS Compliant | ||
- COO (Country of Origin):
- IN
Festo Pressure Relief Valve, Female, 0.3 to 15 Bar Operating Pressure Range - GR-3/4
Prevent injuries and equipment damage with this pressure relief valve from Festo. When fitted in a pneumatic system, it helps you to avoid a build-up of compressed air and reduces the risk of dangerous over-pressurisation. If the pressure of the airflow rises above a predefined safe level, the spring-loaded mechanism inside the device opens, bringing it back down again. Tightening or loosening its knurled screw lets you change the pressure needed to activate the relief function.
Features & Benefits
• Through-the-hole mounting achieves a strong and secure connection
• Broad operating temperature range between -10°C and +60°C for use in challenging environments
• Wrought aluminium alloy housing for strength to minimise wear and tear
• Assembles in any position for flexibility
• Broad operating temperature range between -10°C and +60°C for use in challenging environments
• Wrought aluminium alloy housing for strength to minimise wear and tear
• Assembles in any position for flexibility
Applications
• Industrial automation
• Oil and gas industry
• Defence sector
• Oil and gas industry
• Defence sector
Can I use this pressure relief valve in demanding applications?
Yes, the unit has a high flow rate that varies depending on the fluid's direction. In the control direction, its speed is 3300L/min, while the non-return rate is 4800L/min.
How much does this valve weigh?
It has a weight of 938g, so is easy to handle.
