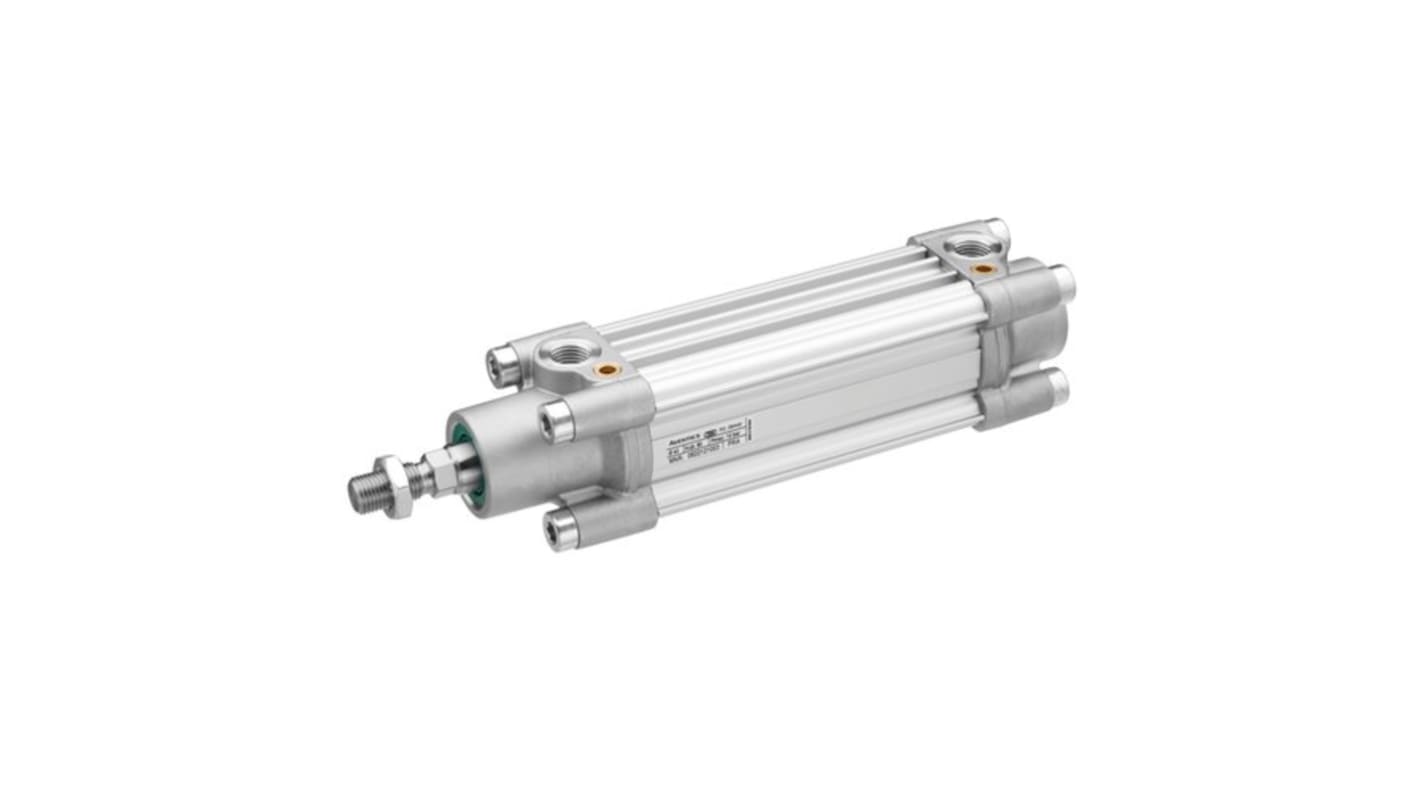

EMERSON ? AVENTICS Pneumatic Piston Rod Cylinder - 50mm Bore, 200mm Stroke, PRA Series, Double Acting
- RS Stock No.:
- 703-5261
- Mfr. Part No.:
- 0822122007
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£204.44
(exc. VAT)
£245.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £204.44 |
*price indicative
- RS Stock No.:
- 703-5261
- Mfr. Part No.:
- 0822122007
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | PRA | |
Bore | 50mm | |
Action | Double | |
Stroke | 200mm | |
Port Connection | G 1/4 | |
Cushioning Type | Rubber | |
Dimensions | 306 x 65 x 65mm | |
Length | 306mm | |
Height | 65mm | |
Width | 65mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 15552 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Weight | 2kg | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series PRA | ||
Bore 50mm | ||
Action Double | ||
Stroke 200mm | ||
Port Connection G 1/4 | ||
Cushioning Type Rubber | ||
Dimensions 306 x 65 x 65mm | ||
Length 306mm | ||
Height 65mm | ||
Width 65mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Weight 2kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU
PRA ISO Profile Cylinder
Pneumatic profile cylinders 32 - 125 mm diameters to ISO15552
Double Acting
Magnetic poston
Adjustable pneumatic cushioning
External piston rod thread
Magnetic poston
Adjustable pneumatic cushioning
External piston rod thread
SerRexroth PRA ISO Profile Cylinder
