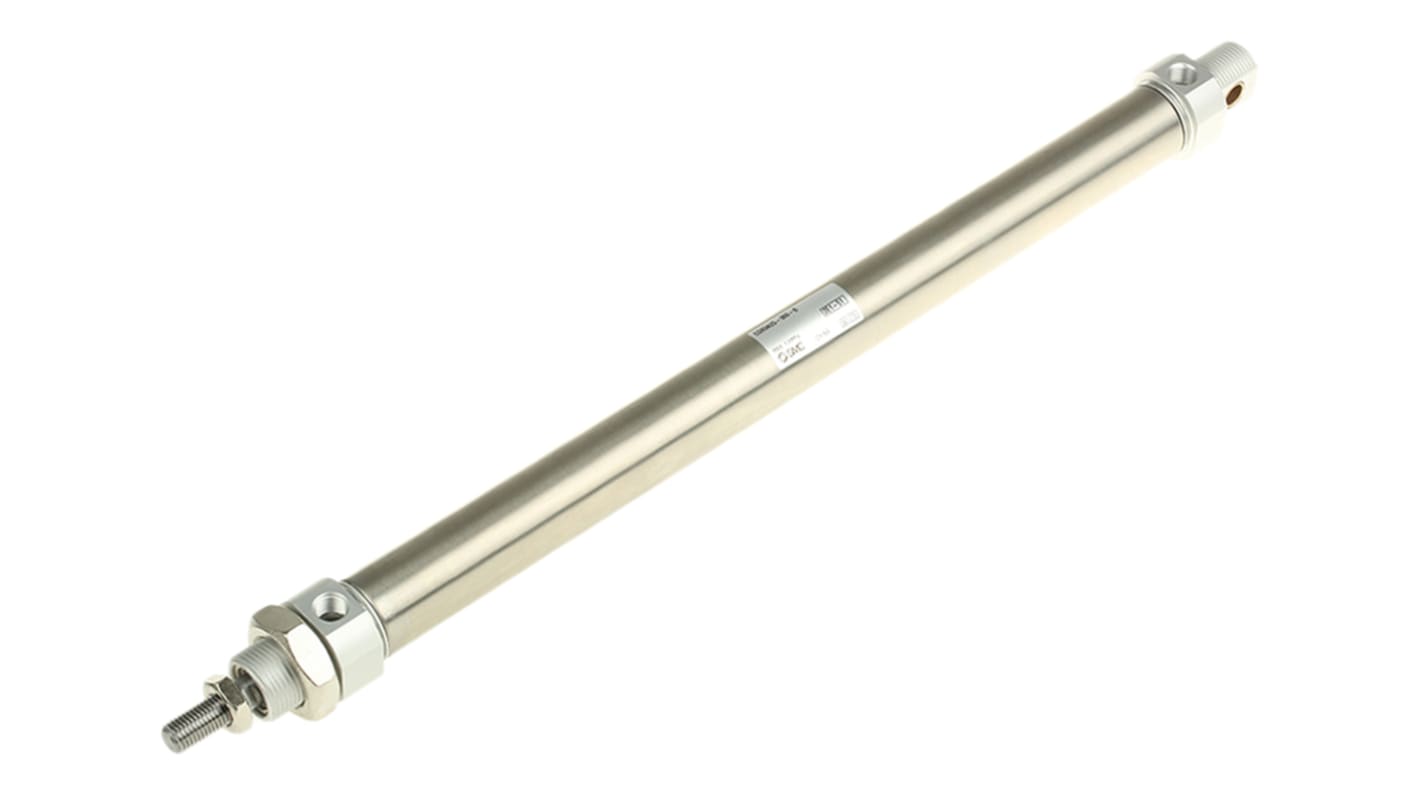

SMC Pneumatic Piston Rod Cylinder - 25mm Bore, 300mm Stroke, C85 Series, Double Acting
- RS Stock No.:
- 624-0232
- Mfr. Part No.:
- CD85N25-300-B
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£78.47
(exc. VAT)
£94.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £78.47 |
5 - 9 | £73.85 |
10 + | £70.76 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£89.29
(exc. VAT)
£107.15
(inc. VAT)
- RS Stock No.:
- 624-0232
- Mfr. Part No.:
- CD85N25-300-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | C85 | |
Action | Double | |
Stroke | 300mm | |
Bore | 25mm | |
Port Connection | G 1/8 | |
Cushioning Type | Rubber | |
Dimensions | 33.5 (Dia.) x 437mm | |
Diameter | 33.5mm | |
Length | 437mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 1 MPa | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +60°C | |
Weight | 258g | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series C85 | ||
Action Double | ||
Stroke 300mm | ||
Bore 25mm | ||
Port Connection G 1/8 | ||
Cushioning Type Rubber | ||
Dimensions 33.5 (Dia.) x 437mm | ||
Diameter 33.5mm | ||
Length 437mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Weight 258g | ||
Non Compliant
- COO (Country of Origin):
- FR
SMC C85 Pneumatic Cylinders
SMC C85 cylinders conform to ISO 6432 and CETOP RP52P standards, offer 100% mounting repeatability accuracy, incorporate abrasion-resistant seals, and a replaceable piston rod seal. The cylinders are corrosion-resistant, with the barrel and piston rod manufactured from stainless steel, double-swaged anodised aluminium end caps, and offer an exceptional service life. The double-swaged end caps provide an air tight seal. The cylinders offer high dust resistance through the use of a specially-designed and unique dust seal, making SMC C85 pneumatic cylinders suitable for use in extremely dusty environments. A low friction design that incorporates elastomer cushion seals allows the the cylinders to operate at speeds up to 1500 mm/s. C85 cylinders are suppied with a piston rod locknut and nose-mounting nut; installation is made easy through the use of large spanner flats and the space-saving design.
