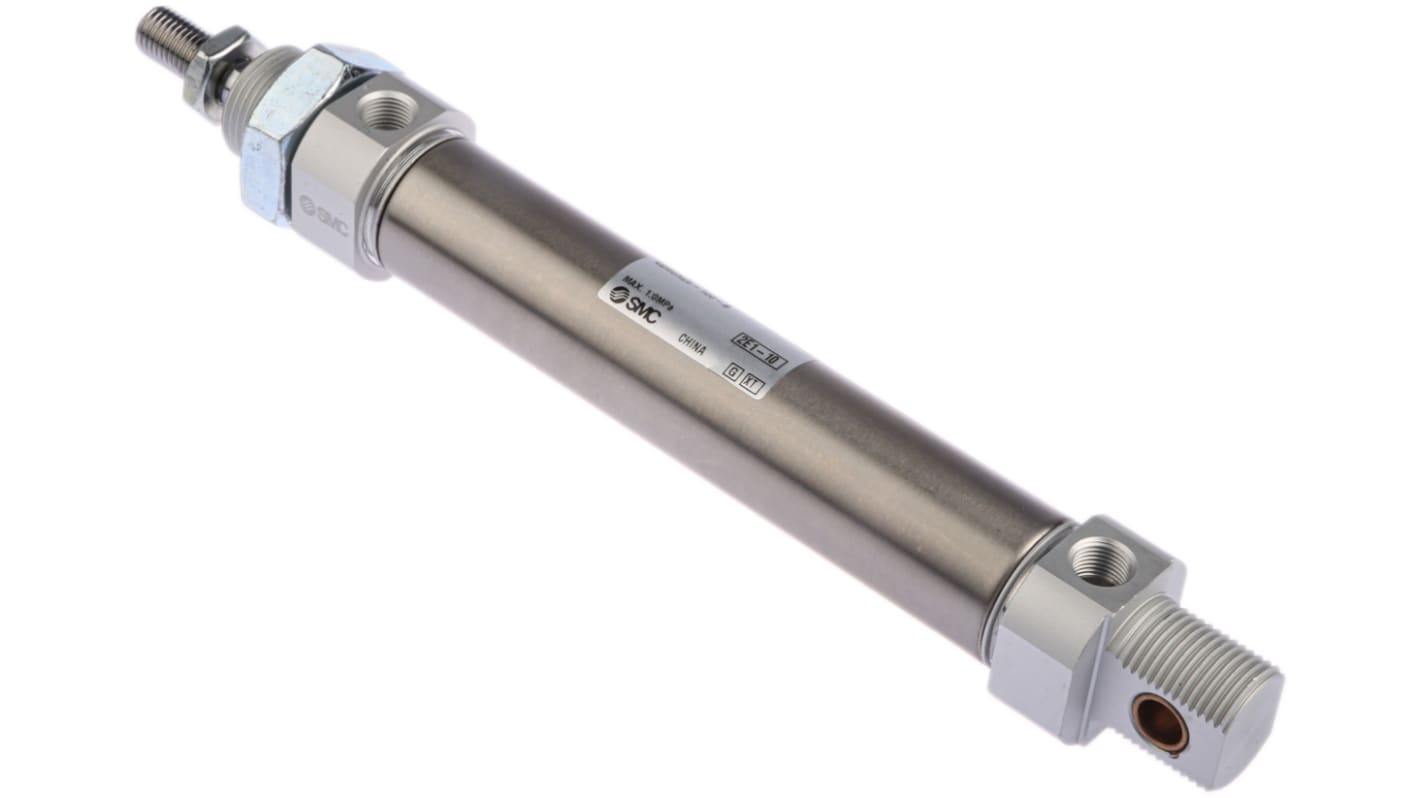

SMC Pneumatic Piston Rod Cylinder - 25mm Bore, 100mm Stroke, C85 Series, Double Acting

RS Stock No.:: 264-5116
Mfr. Part No.:: CD85N25-100-B
Brand:: SMC

SMC Pneumatic Piston Rod Cylinder - 25mm Bore, 100mm Stroke, C85 Series, Double Acting

View this category

Bulk discount available

Subtotal (1 unit)*

£60.79

(exc. VAT)

£72.95

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

12 unit(s) ready to ship
Plus 14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£60.79
5 - 9	£57.22
10 +	£54.84

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Parker Pneumatic Piston Rod Cylinder - 25mm Bore, 100mm Stroke, P1A Series, Double Acting

RS Stock No.: 389-5211

Each

£78.50

(exc. VAT)

£94.20

(inc. VAT)

RS Stock No.:: 264-5116
Mfr. Part No.:: CD85N25-100-B
Brand:: SMC

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SMC
	Manufacturer Series	C85
	Bore	25mm
	Stroke	100mm
	Action	Double
	Port Connection	G 1/8
	Cushioning Type	Rubber
	Dimensions	33.5 (Dia.) x 237mm
	Diameter	33.5mm
	Length	237mm
	Absolute Maximum Pressure	1.5MPa
	Maximum Operating Pressure	1 MPa
	Piston Speed	50 → 1500mm/s
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+60°C
	Weight	258g

	Select all
	Brand SMC
	Manufacturer Series C85
	Bore 25mm
	Stroke 100mm
	Action Double
	Port Connection G 1/8
	Cushioning Type Rubber
	Dimensions 33.5 (Dia.) x 237mm
	Diameter 33.5mm
	Length 237mm
	Absolute Maximum Pressure 1.5MPa
	Maximum Operating Pressure 1 MPa
	Piston Speed 50 → 1500mm/s
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +60°C
	Weight 258g

Non Compliant

COO (Country of Origin):: CN

SMC C85 Series Pneumatic Piston Rod Cylinder, 100mm Stroke, 25mm Bore - CD85N25-100-B

This pneumatic piston rod cylinder is designed for robust performance in various industrial applications. With a bore size of 25mm and a stroke length of 100mm, it is part of the double-acting pneumatic cylinder category. The cylinder features a G 1/8 port connection and utilises rubber cushioning for smooth operation, making it ideal for automation and mechanical systems. This compact unit measures 33.5mm in diameter and is well-suited for space-constrained environments.

Features & Benefits

• Offers double-acting functionality for efficient operation
• Designed to withstand a maximum operating pressure of 1 MPa
• Achieves a piston speed of up to 1500mm/s for high-speed tasks
• Features a rubber cushioning mechanism to reduce impact
• Built to operate effectively between -10 °C to +60 °C
• Integrated with a G 1/8 pneumatic connection for versatility

Applications

• Used with industrial automation systems for precise control
• Ideal for robotics requiring quick and accurate movements
• Suitable for assembly lines needing reliable actuation
• Employed in packaging machinery to enhance efficiency
• Utilised in machine tool for effective handling

What is the maximum pressure this cylinder can handle?

It can handle a maximum operating pressure of 1 MPa and a proof pressure of 1.5 MPa, ensuring robust operation under a variety of conditions.

What are the temperature limitations for using this pneumatic actuator?

The actuator operates effectively within a temperature range of -10 °C to +60 °C for optimal performance, expanding its usability in typical industrial settings.

How does the cushioning type affect the performance of this cylinder?

The rubber cushioning type helps absorb impact during operation, which enhances the longevity of the cylinder and ensures smoother transitions during actuation.

Can this product accommodate auto switches?

This cylinder is capable of being mounted with auto switches, although no automatic switch is included in the standard configuration, providing flexibility for users who may need it.
