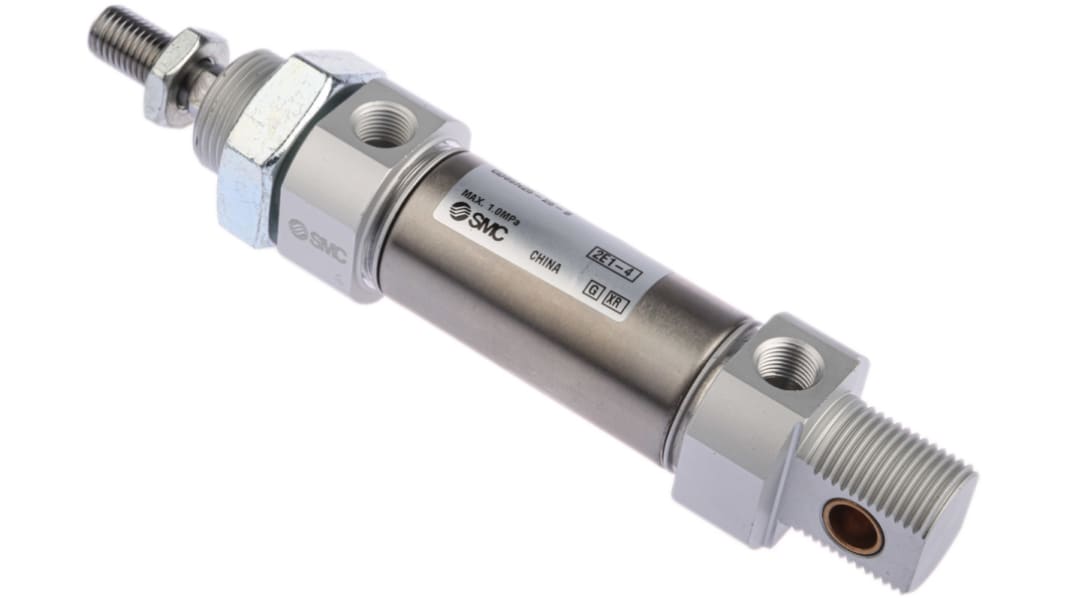

SMC Pneumatic Piston Rod Cylinder - 25mm Bore, 25mm Stroke, C85 Series, Double Acting
- RS Stock No.:
- 264-5065
- Mfr. Part No.:
- CD85N25-25-B
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£54.04
(exc. VAT)
£64.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 47 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £54.04 |
5 - 9 | £50.87 |
10 + | £48.74 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£74.79
(exc. VAT)
£89.75
(inc. VAT)
- RS Stock No.:
- 264-5065
- Mfr. Part No.:
- CD85N25-25-B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | C85 | |
Stroke | 25mm | |
Action | Double | |
Bore | 25mm | |
Port Connection | G 1/8 | |
Cushioning Type | Rubber | |
Dimensions | 33.5 (Dia.) x 162mm | |
Diameter | 33.5mm | |
Length | 162mm | |
Maximum Operating Pressure | 1 MPa | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Weight | 258g | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series C85 | ||
Stroke 25mm | ||
Action Double | ||
Bore 25mm | ||
Port Connection G 1/8 | ||
Cushioning Type Rubber | ||
Dimensions 33.5 (Dia.) x 162mm | ||
Diameter 33.5mm | ||
Length 162mm | ||
Maximum Operating Pressure 1 MPa | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Weight 258g | ||
Non Compliant
- COO (Country of Origin):
- CN



SMC C85 Series Pneumatic Piston Rod Cylinder, 25mm Stroke, 1 MPa Maximum Operating Pressure - CD85N25-25-B
This pneumatic piston rod cylinder is designed for efficient operation in various industrial applications. The cylinder features a double action mechanism, allowing for enhanced functionality in automation systems. With a stroke of 25mm and a bore size of 25mm, this 162mm long and 33.5mm diameter cylinder offers compact and effective performance. Ideal for precision tasks, the SMC product is reliable under various conditions.
Features & Benefits
• Constructed for double acting capability to optimise motion efficiency
• Robust design withstands a maximum operating pressure of 1 MPa
• Operates effectively across a temperature range from -10 °C to +60 °C
• Equipped with rubber cushioning for smooth operation and impact absorption
• Includes a G 1/8 port connection for versatile installations
• Lightweight at 258g for easy handling and installation
• Robust design withstands a maximum operating pressure of 1 MPa
• Operates effectively across a temperature range from -10 °C to +60 °C
• Equipped with rubber cushioning for smooth operation and impact absorption
• Includes a G 1/8 port connection for versatile installations
• Lightweight at 258g for easy handling and installation
Applications
• Utilised in automation systems for precise control of motion
• Employed in robotic arms for consistent and reliable operation
• Suitable for assembly lines requiring controlled actuation
• Perfect for machine tools needing push and pull capabilities
• Used in pneumatic systems for effective motion regulation
• Employed in robotic arms for consistent and reliable operation
• Suitable for assembly lines requiring controlled actuation
• Perfect for machine tools needing push and pull capabilities
• Used in pneumatic systems for effective motion regulation
What is the maximum pressure rating for this cylinder?
The absolute maximum pressure for operation can reach up to 1.5 MPa, ensuring suitability for high-pressure tasks while maintaining stability.
How does the rubber cushioning enhance the performance?
The rubber cushioning minimises impact and reduces wear during operation, leading to extended service life and improved efficiency.
What are the implications of the temperature operating range?
The ability to function at temperatures ranging from -10 °C to +60 °C makes it versatile for various environments, allowing use in both cold and warm conditions.
What installation considerations should be taken into account?
Ensure compatibility with the G 1/8 port connection, and assess your system's pressure and temperature requirements for optimal performance.
