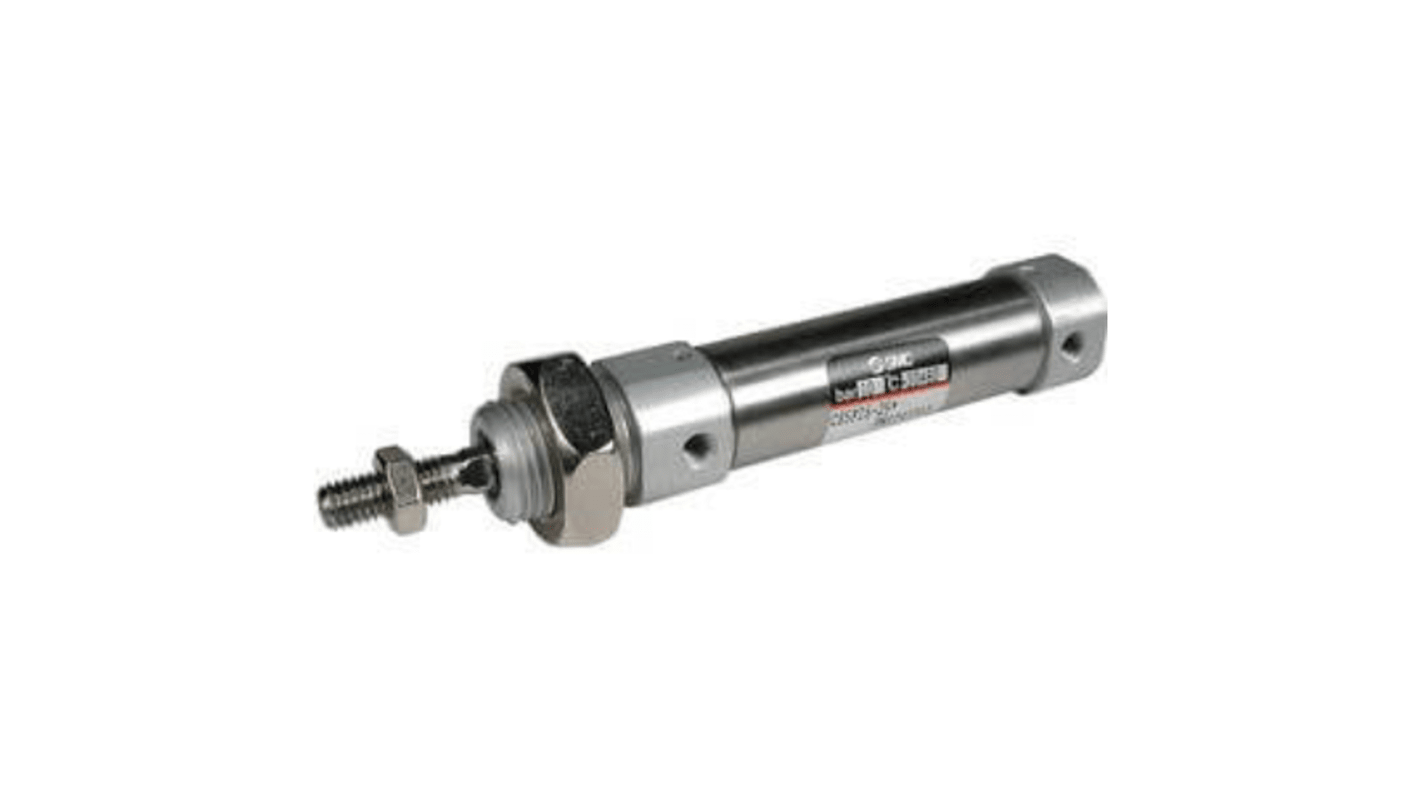

SMC ISO Standard Cylinder - 25 mm Bore, 25 mm C85 Series, Double Acting Acting
- RS Stock No.:
- 254-6028
- Mfr. Part No.:
- CD85N25-25-B-XC6B
- Brand:
- SMC
Subtotal (1 unit)*
£66.55
(exc. VAT)
£79.86
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.55 |
*price indicative
- RS Stock No.:
- 254-6028
- Mfr. Part No.:
- CD85N25-25-B-XC6B
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Series | C85 | |
| Product Type | ISO Standard Cylinder | |
| Bore Size | 25mm | |
| Action Type | Double Acting | |
| Mount Type | Axial | |
| Cushioning Type | Rubber Bumper | |
| Body Material | Stainless Steel | |
| Stroke Length | 25mm | |
| Maximum Operating Pressure | 1.0 Mpa | |
| Piston Rod Gender | Male | |
| Rod Type | Single | |
| Maximum Piston Speed | 500mm/s | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M10 x 1.25 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | ISO/21287 | |
| Weight | 250g | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Series C85 | ||
Product Type ISO Standard Cylinder | ||
Bore Size 25mm | ||
Action Type Double Acting | ||
Mount Type Axial | ||
Cushioning Type Rubber Bumper | ||
Body Material Stainless Steel | ||
Stroke Length 25mm | ||
Maximum Operating Pressure 1.0 Mpa | ||
Piston Rod Gender Male | ||
Rod Type Single | ||
Maximum Piston Speed 500mm/s | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M10 x 1.25 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals ISO/21287 | ||
Weight 250g | ||
- COO (Country of Origin):
- CZ
The SMC double acting single rod air cylinder has unique rod packing design that prevents entry of dust and the effectiveness of the seal is such that it suitable for use in extremely dusty environments. The tube is impact extruded aluminium to produce an
Built-in magnet
Basic (Integrated clevis)
Bore size 25mm
Band mounting
