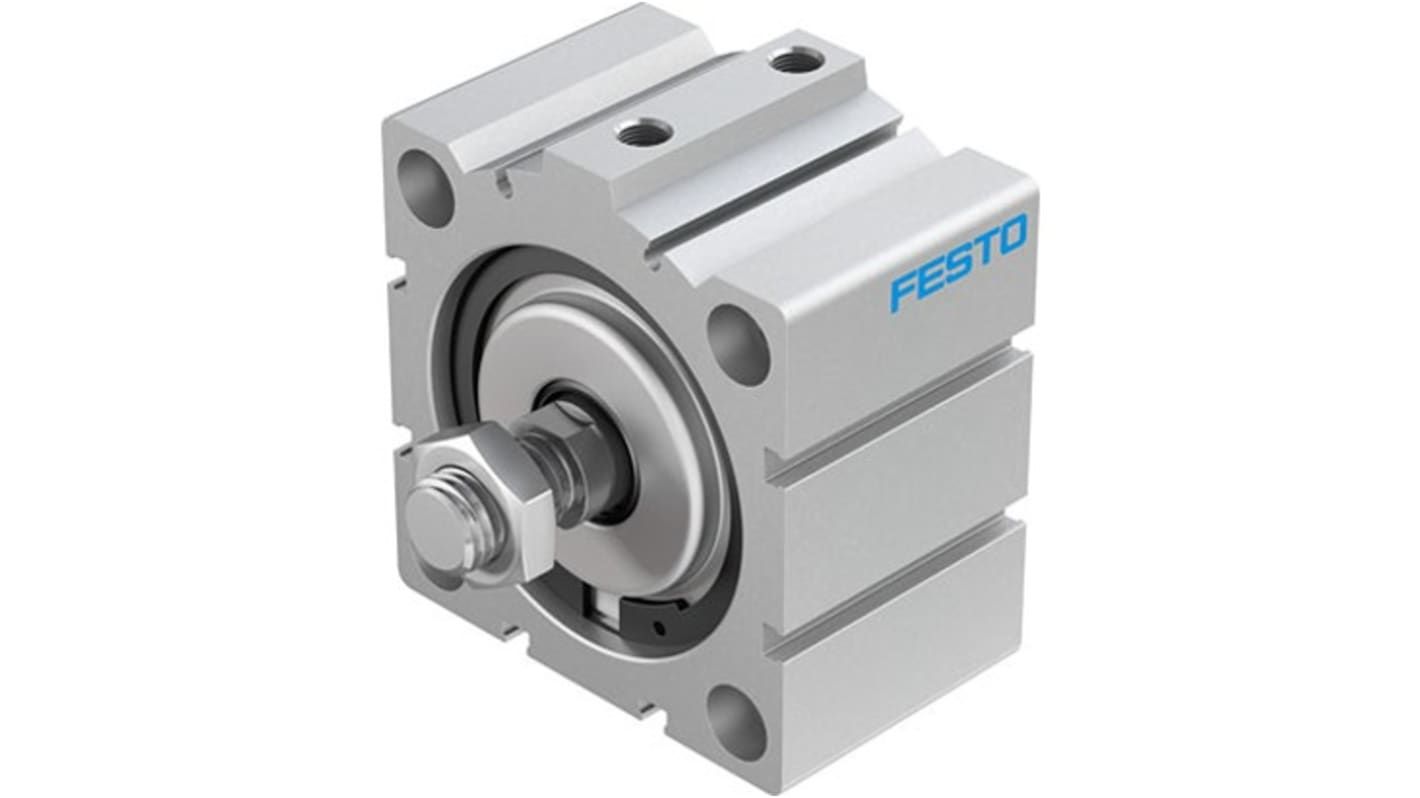

Festo Pneumatic Compact Cylinder - 188316, 80mm Bore, 10mm Stroke, ADVC Series, Double Acting
- RS Stock No.:
- 281-1525
- Mfr. Part No.:
- ADVC-80-10-A-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£239.21
(exc. VAT)
£287.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £239.21 |
*price indicative
- RS Stock No.:
- 281-1525
- Mfr. Part No.:
- ADVC-80-10-A-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADVC | |
Model Number p | 188316 | |
Bore | 80mm | |
Stroke | 10mm | |
Action | Double | |
Length | 58mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADVC | ||
Model Number p 188316 | ||
Bore 80mm | ||
Stroke 10mm | ||
Action Double | ||
Length 58mm | ||
- COO (Country of Origin):
- DE
The Festo short-stroke cylinder is fast acting cylinder with outstanding tensile force ratio and hole pattern for fastening to VDMA 24562.
Very short overall length
High forces in a compact size
Piston rod with internal or external thread
Optimized fitting space and height
For position sensing with proximity sensor for T-slot and for C-slot
High forces in a compact size
Piston rod with internal or external thread
Optimized fitting space and height
For position sensing with proximity sensor for T-slot and for C-slot
