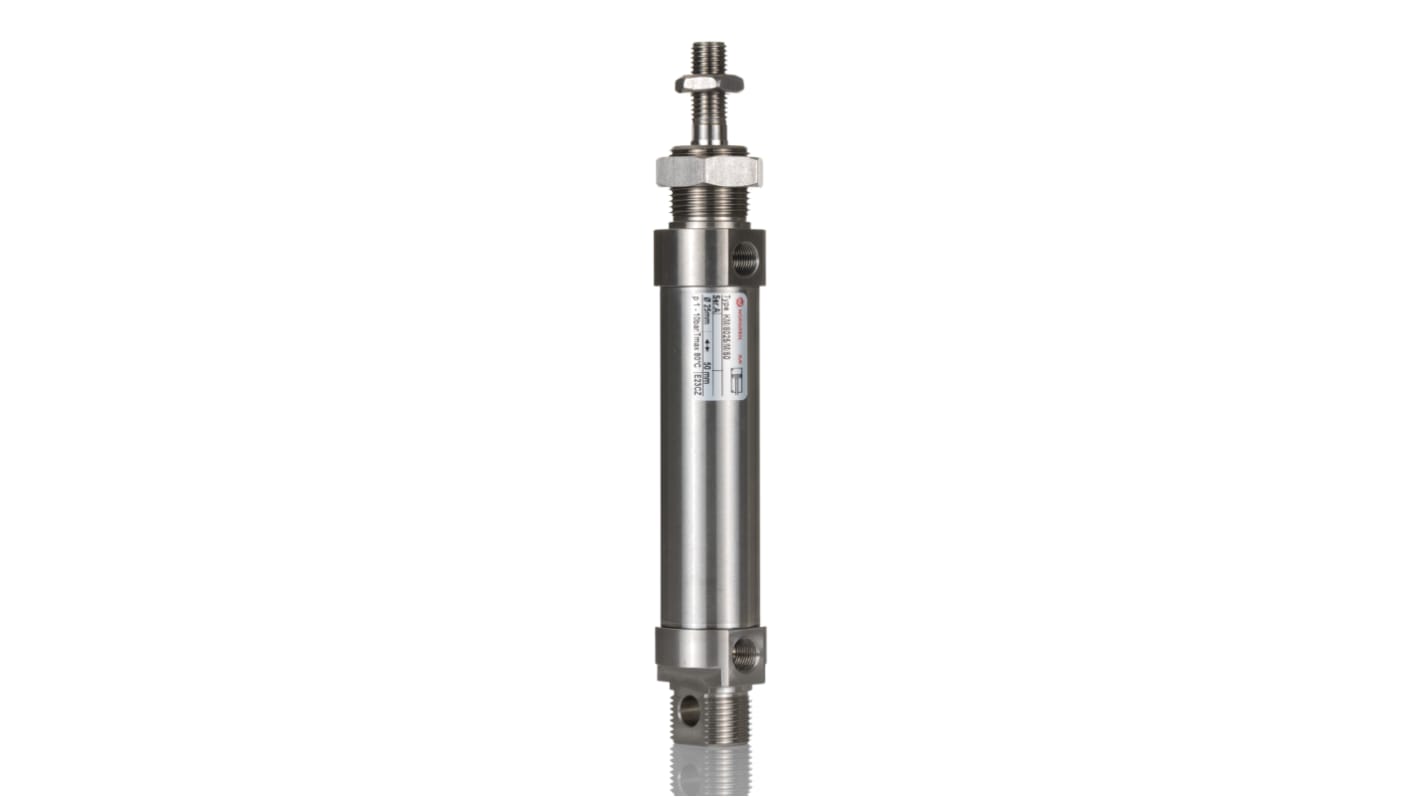

Norgren Double Acting Cylinder - KM/8025/M/50, 25mm Bore, 50mm Stroke, KM/8000/M Series, Double Acting
- RS Stock No.:
- 271-2680
- Mfr. Part No.:
- KM/8025/M/50
- Brand:
- Norgren
Subtotal (1 unit)*
£292.74
(exc. VAT)
£351.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6 unit(s) shipping from 27 October 2025
- Plus 1 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £292.74 |
*price indicative
- RS Stock No.:
- 271-2680
- Mfr. Part No.:
- KM/8025/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Manufacturer Series | KM/8000/M | |
| Model Number p | KM/8025/M/50 | |
| Stroke | 50mm | |
| Bore | 25mm | |
| Action | Double | |
| Pneumatic Connection | M10 | |
| Cushioning Type | Buffer | |
| Length | 135mm | |
| Maximum Operating Pressure | 10 bar | |
| ISO Standard | ISO 6432 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Manufacturer Series KM/8000/M | ||
Model Number p KM/8025/M/50 | ||
Stroke 50mm | ||
Bore 25mm | ||
Action Double | ||
Pneumatic Connection M10 | ||
Cushioning Type Buffer | ||
Length 135mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +80°C | ||
Non Compliant
- COO (Country of Origin):
- CZ
IMI Norgren Double-Acting Cylinder, G1/8 Port Thread, 294N Theoretical Force Rating - KM/8000/M Series - KM/8025/M/50
Looking for a flexible handling component for your automated application? Count on this IMI Norgren double-acting cylinder to do the job. The piston is driven in both directions by compressed media, giving you close positioning control and reliable repeatability. Thanks to the device's buffer cushioning, it smooths over impacts to cut back on damage during operation. A slim 25mm bore diameter means it tucks tidily into busy systems without a hitch. By pairing it with a proximity switch (218-0616), you can keep an eye on the cylinder's stroke status from your controller for handy remote tracking.
Features & Benefits
• Corrosion-resistant stainless steel body, ensuring durability in damp settings
• Regulation G1/8-thread port for wide air source compatibility
• Applies forces up to 294N to get heavy objects moving
• Sealed with PUR rings, minimising risk of pressure loss and keeping things running smoothly
• Performs reliably in temperatures between -10°C and +80°C
• Regulation G1/8-thread port for wide air source compatibility
• Applies forces up to 294N to get heavy objects moving
• Sealed with PUR rings, minimising risk of pressure loss and keeping things running smoothly
• Performs reliably in temperatures between -10°C and +80°C
Applications
• Warehouses
• Beverage production
• Transportation systems
• Packaging plants
• Beverage production
• Transportation systems
• Packaging plants
What kinds of air supply can I use this product with?
This cylinder works with clean, filtered and lubricated air, so it's a versatile choice.
