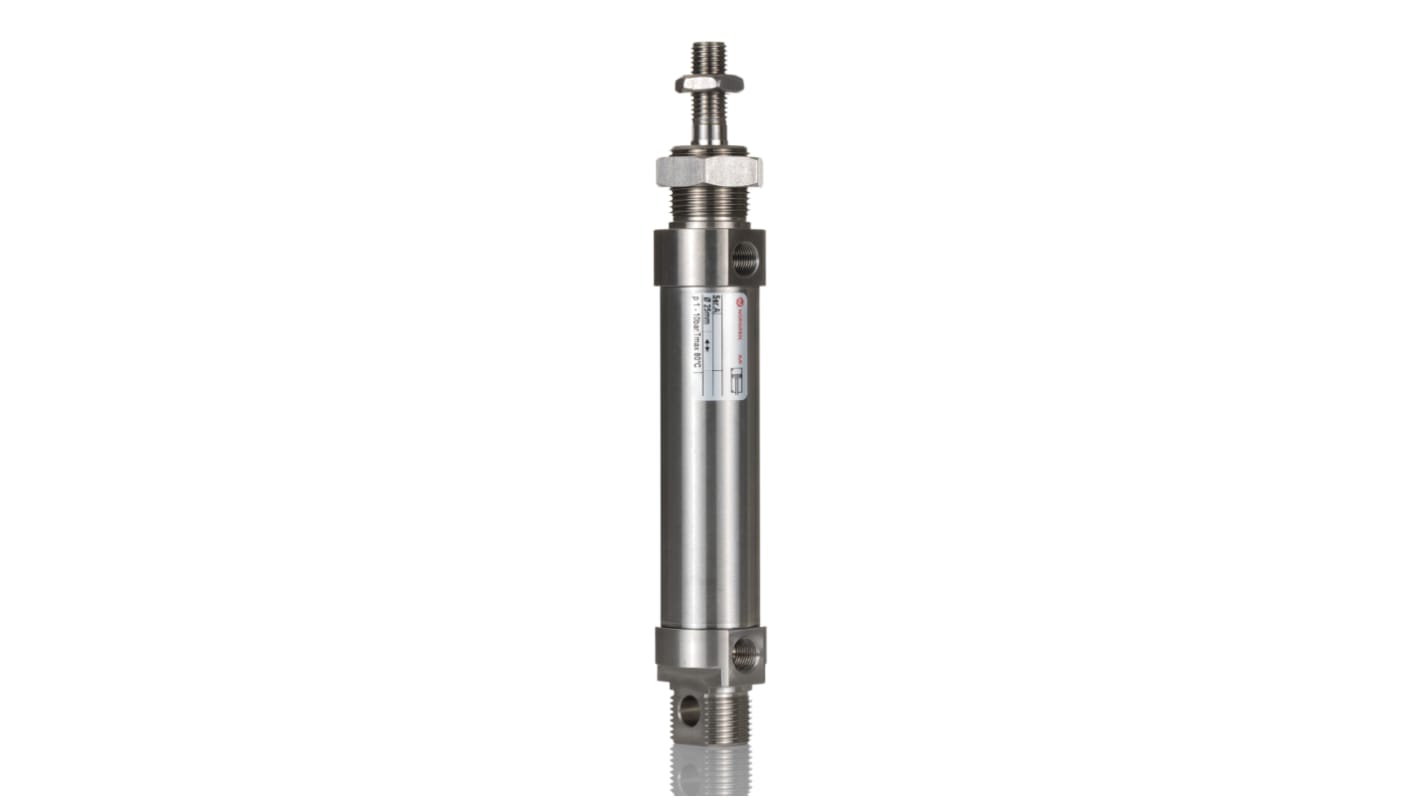

Norgren Double Acting Cylinder - KM/8025/M/10, 25mm Bore, 10mm Stroke, KM/8000/M Series, Double Acting
- RS Stock No.:
- 271-2679
- Mfr. Part No.:
- KM/8025/M/10
- Brand:
- Norgren
Subtotal (1 unit)*
£286.94
(exc. VAT)
£344.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 27 October 2025
- Plus 2 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £286.94 |
*price indicative
- RS Stock No.:
- 271-2679
- Mfr. Part No.:
- KM/8025/M/10
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Manufacturer Series | KM/8000/M | |
| Model Number p | KM/8025/M/10 | |
| Action | Double | |
| Stroke | 10mm | |
| Bore | 25mm | |
| Pneumatic Connection | M10 | |
| Cushioning Type | Buffer | |
| Length | 135mm | |
| Maximum Operating Pressure | 10 bar | |
| ISO Standard | ISO 6432 | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Norgren | ||
Manufacturer Series KM/8000/M | ||
Model Number p KM/8025/M/10 | ||
Action Double | ||
Stroke 10mm | ||
Bore 25mm | ||
Pneumatic Connection M10 | ||
Cushioning Type Buffer | ||
Length 135mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +80°C | ||
Non Compliant
- COO (Country of Origin):
- CZ
IMI Norgren Double-Acting Cylinder, G1/8 Port Thread, 1 to 10 Bar Operating Pressure Range - KM/8000/M Series - KM/8025/M/10
Get your workpieces moving in the right direction with this double-acting cylinder from IMI Norgren. As it has an open port at each end, its piston extends and retracts using air, so you get precise stroke control. By delivering forces up to 294N at 6 bar of pressure, this unit carries heavy loads through the system without breaking a sweat. Finding compatible air supply connectors is no issue, thanks to its industry-standard G1/8-thread port. Don't worry about wear and tear, as buffer cushioning is on hand to minimise impact forces and cut the risk of damage.
Features & Benefits
• Short stroke length of 10mm for precise positioning
• Stainless steel casing resists corrosion, staying strong in damp environments
• Narrow bore diameter of 25mm, so it slots easily into busy setups
• Works with clean and lubricated compressed air for wide compatibility
• Airtight NBR seals guard against pressure loss and keep contaminants out
• Stainless steel casing resists corrosion, staying strong in damp environments
• Narrow bore diameter of 25mm, so it slots easily into busy setups
• Works with clean and lubricated compressed air for wide compatibility
• Airtight NBR seals guard against pressure loss and keep contaminants out
Applications
• Material handling
• Industrial automation
• Metalworking facilities
• Industrial automation
• Metalworking facilities
Can I track the position of the piston?
Yes. This unit's magnetic rod works with a proximity switch (218-0620), making it easy to track its position from your control device.
