Norgren Pneumatic Cylinder - 12 mm Bore, 20 mm RM/92012/M Series, Double Acting Acting
- RS Stock No.:
- 220-4019
- Mfr. Part No.:
- RM/92012/M/20
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£41.86
(exc. VAT)
£50.23
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £41.86 |
| 5 - 9 | £41.02 |
| 10 + | £40.19 |
*price indicative
- RS Stock No.:
- 220-4019
- Mfr. Part No.:
- RM/92012/M/20
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Product Type | Pneumatic Cylinder | |
| Series | RM/92012/M | |
| Action Type | Double Acting | |
| Bore Size | 12mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Adjustable | |
| Body Material | Stainless Steel | |
| Stroke Length | 20mm | |
| Length | 20mm | |
| Maximum Operating Pressure | 10 bar | |
| Rod Type | Double | |
| Minimum Operating Temperature | -5°C | |
| Piston Rod Gender | Female | |
| Piston Rod Thread Size | M3 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | No | |
| Width | 25mm | |
| Weight | 0.22kg | |
| Height | 27.5mm | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Product Type Pneumatic Cylinder | ||
Series RM/92012/M | ||
Action Type Double Acting | ||
Bore Size 12mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Adjustable | ||
Body Material Stainless Steel | ||
Stroke Length 20mm | ||
Length 20mm | ||
Maximum Operating Pressure 10 bar | ||
Rod Type Double | ||
Minimum Operating Temperature -5°C | ||
Piston Rod Gender Female | ||
Piston Rod Thread Size M3 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals No | ||
Width 25mm | ||
Weight 0.22kg | ||
Height 27.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB

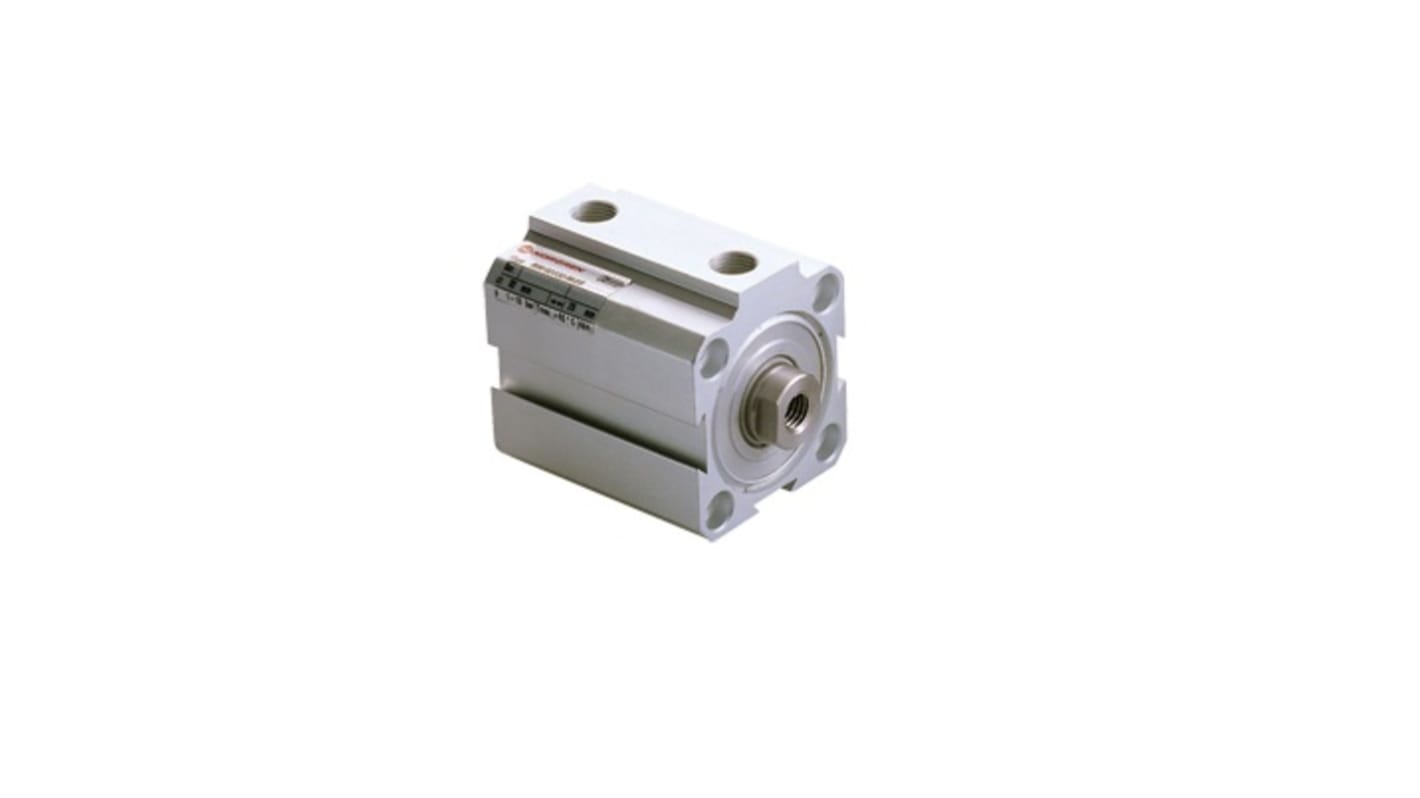

The IMI Norgren RM/92012/M/20 is a compact double acting short stroke cylinder. It has magnetic piston, it has stroke length of 20 mm and a cylinder diameter of 12mm.
One third the basic length of a corresponding ISO/VDMA model
Low friction, long life seal design
Fully non-corrodible specification
Standard magnetic piston for full control system versatility
