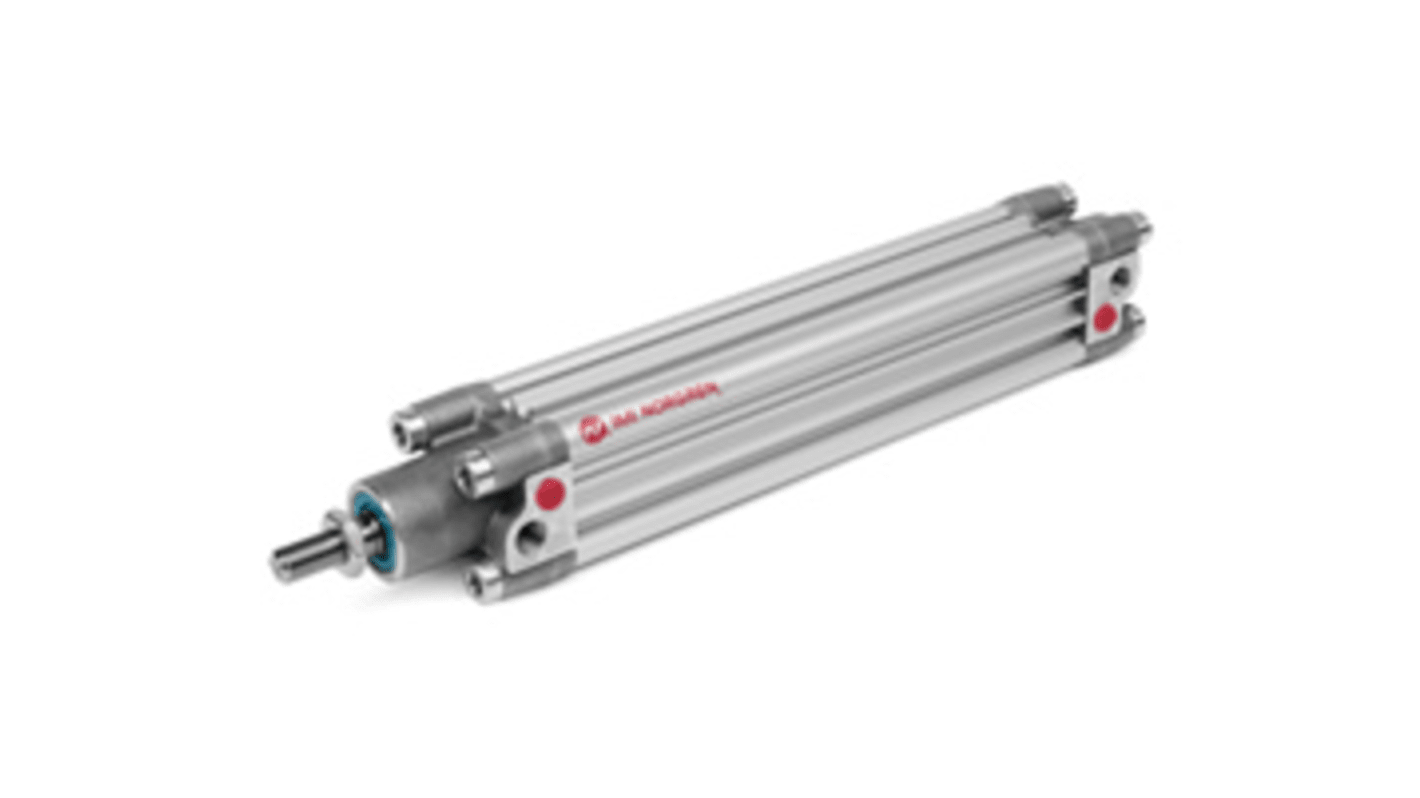

Norgren Double Acting Cylinder - 100mm Bore, 500mm Stroke, PRA Series, Double Acting
- RS Stock No.:
- 218-0666
- Mfr. Part No.:
- PRA/802100/M/500
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£337.53
(exc. VAT)
£405.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £337.53 |
5 - 9 | £330.77 |
10 + | £324.03 |
*price indicative
- RS Stock No.:
- 218-0666
- Mfr. Part No.:
- PRA/802100/M/500
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA | |
Bore | 100mm | |
Stroke | 500mm | |
Action | Double | |
Pneumatic Connection | G 1/2 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 230 x 113 x 113mm | |
Diameter | 100mm | |
Height | 113mm | |
Width | 113mm | |
Length | 230mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 0.23 kg @ 25 mm | |
Maximum Operating Temperature | +80°C | |
Test Weight | 3.66 kg @ 0 mm | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA | ||
Bore 100mm | ||
Stroke 500mm | ||
Action Double | ||
Pneumatic Connection G 1/2 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 230 x 113 x 113mm | ||
Diameter 100mm | ||
Height 113mm | ||
Width 113mm | ||
Length 230mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 0.23 kg @ 25 mm | ||
Maximum Operating Temperature +80°C | ||
Test Weight 3.66 kg @ 0 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Double Acting Cylinder, G1/2 Port Thread, 100mm Cylinder Diameter - PRA Series - PRA/802100/M/500
Grab this double-acting cylinder from IMI Norgren to clamp, eject and position objects in your pneumatic setup. An operating pressure range between 1 and 12 bar means this versatile component is suited to many low-to-mid-pressure applications. Its PUR seals resist corrosion from industrial substances to prevent air leakage, eliminating workflow hiccups in factory settings. Smooth and silent performance is a given, thanks to the unit's built-in adaptive cushioning system, which takes the hit from impacts and reduces workplace noise.
Features & Benefits
• Compatible with filtered, lubricated and non-lubricated compressed air, for flexible use
• Generates force up to 4710N, meaning it's a powerful choice that can cope with large loads
• Switches can be flush mounted to the barrel for space-efficiency
• 500mm stroke means it's compatible with many heavy-duty applications
• Generates force up to 4710N, meaning it's a powerful choice that can cope with large loads
• Switches can be flush mounted to the barrel for space-efficiency
• 500mm stroke means it's compatible with many heavy-duty applications
Applications
• Factory processing lines
• Storage facilities and warehouses
• Mining and mineral processing operations
• Storage facilities and warehouses
• Mining and mineral processing operations
Can I use this device in industrial conditions?
Yes. This unit operates in a broad temperature range between -20°C and +80°C, so it withstands harsh industrial environments.
