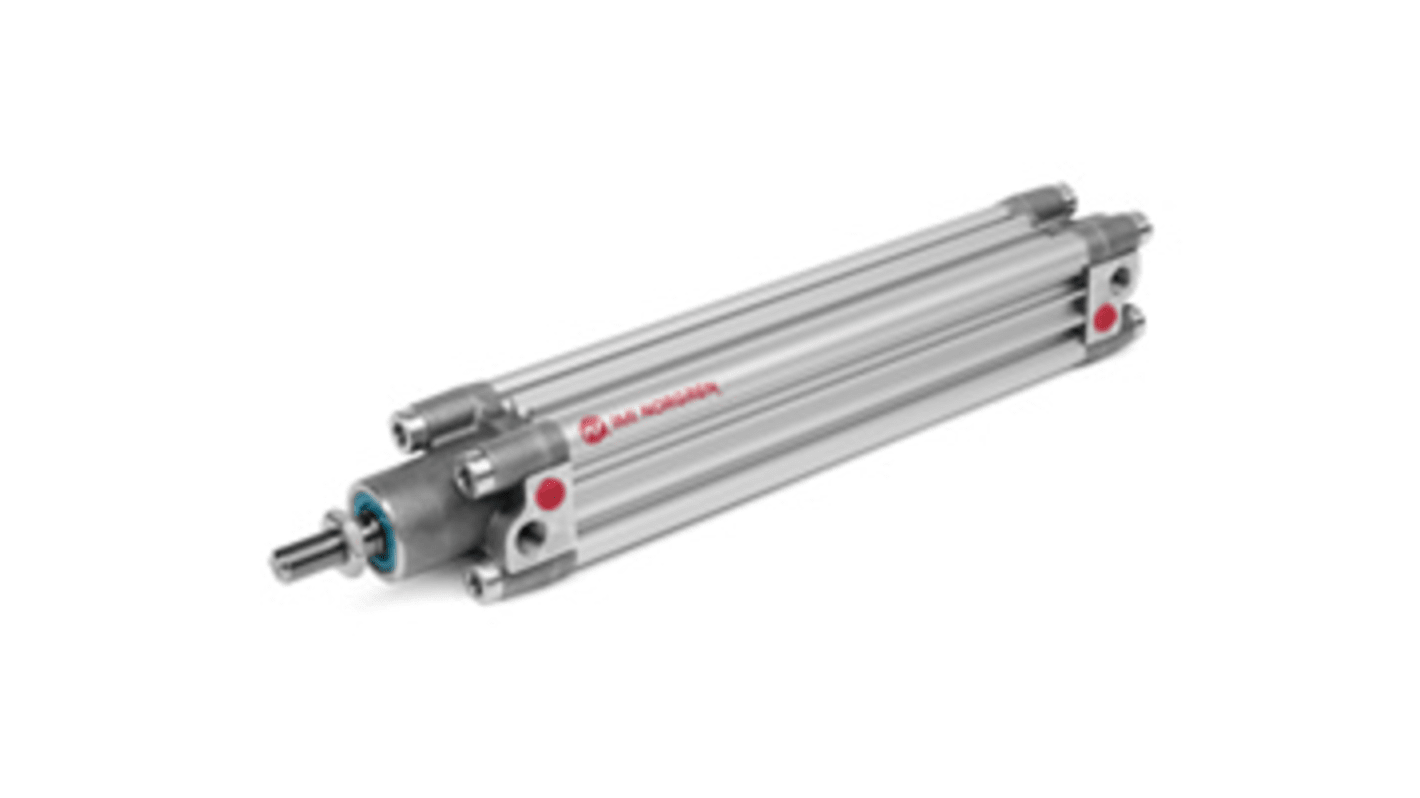

Norgren Double Acting Cylinder - 100mm Bore, 400mm Stroke, PRA Series, Double Acting
- RS Stock No.:
- 218-0665
- Mfr. Part No.:
- PRA/802100/M/400
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£322.12
(exc. VAT)
£386.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 999,999,998 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £322.12 |
5 - 9 | £315.68 |
10 + | £309.24 |
*price indicative
- RS Stock No.:
- 218-0665
- Mfr. Part No.:
- PRA/802100/M/400
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA | |
Bore | 100mm | |
Action | Double | |
Stroke | 400mm | |
Pneumatic Connection | G 1/2 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 629 x 113 x 113mm | |
Width | 113mm | |
Length | 629mm | |
Height | 113mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Test Weight | 3.66 kg @ 0 mm | |
Stroke Interval Weight | 0.2 kg @ 25 mm | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Weight | 7.3kg | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA | ||
Bore 100mm | ||
Action Double | ||
Stroke 400mm | ||
Pneumatic Connection G 1/2 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 629 x 113 x 113mm | ||
Width 113mm | ||
Length 629mm | ||
Height 113mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Test Weight 3.66 kg @ 0 mm | ||
Stroke Interval Weight 0.2 kg @ 25 mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Weight 7.3kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Double-Acting Cylinder, G1/2 Port Size, 400mm Stroke Length - PRA Series - PRA/802100/M/400
Looking for a reliable way to generate movement in your pneumatic system? This double-acting cylinder from IMI Norgren is an all-rounder. Its two ports allow compressed air to move the piston both forward and backward, giving you versatile motion control. This assembly features an adaptive cushioning function that reduces vibration and noise for smoother performance. Stainless steel construction means this team player is resistant to corrosion and wear, helping to keep your workflow on the straight and narrow. Thanks to its G1/2 port size, it's compatible with standard equipment, making it a sure fit for many existing setups.
Features & Benefits
• PUR seals resist corrosion to prevent leaks and maintain system integrity
• Stroke length of 400mm for movement across a large distance
• Stroke length of 400mm for movement across a large distance
Applications
• Mining and minerals processing
• Hoisting equipment
• Cooling lines
• Hoisting equipment
• Cooling lines
What media can I use with this component?
This product accommodates filtered, lubricated and non-lubricated compressed air, so it's a versatile piece of kit.
Can I use this unit in harsh industrial conditions?
Yes, this product has a wide operating temperature range between -20°C and +80°C, so it can stand up to demanding environments.
