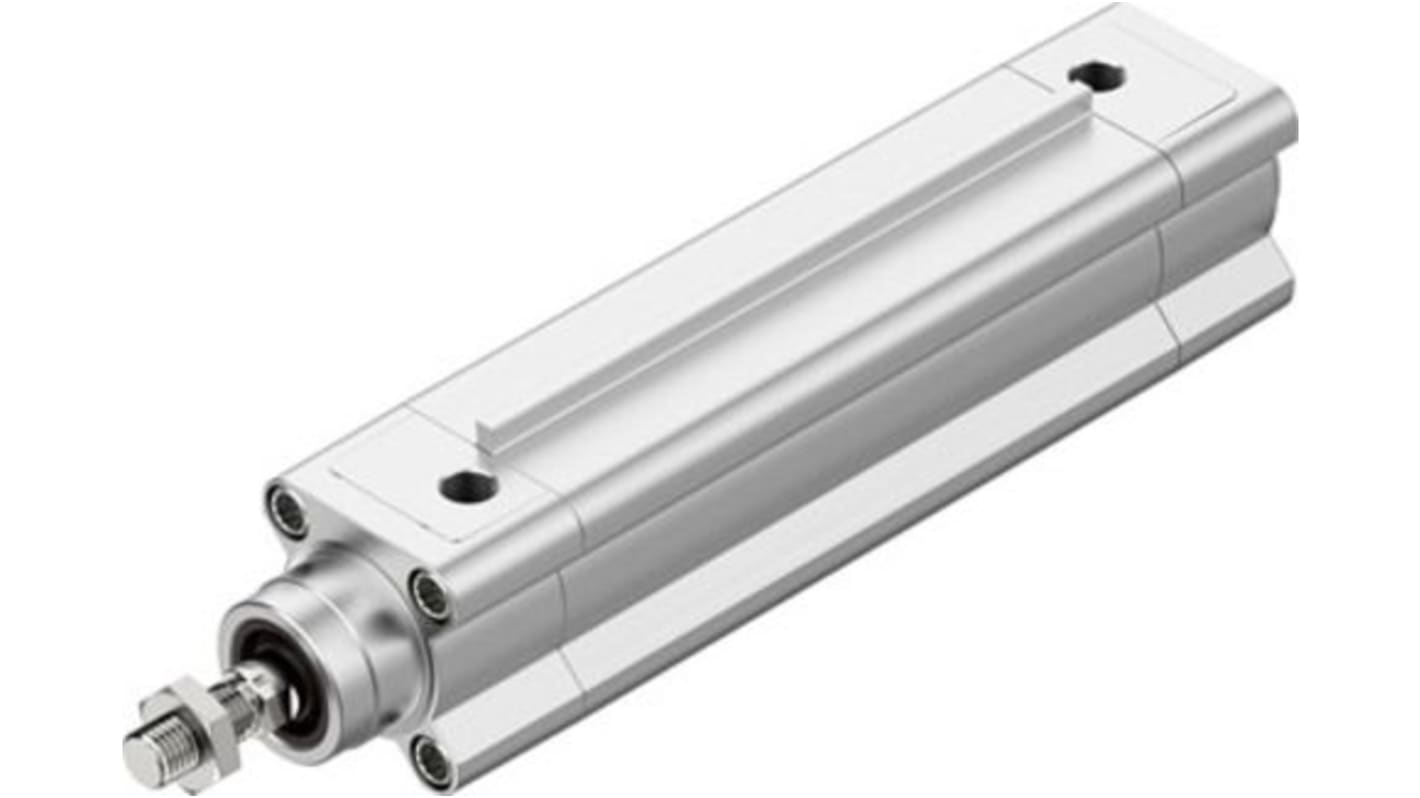

Festo 80 mm Pneumatic Profile Cylinder - 1780908 DSBF Series, Double Acting Acting
- RS Stock No.:
- 203-9744
- Mfr. Part No.:
- DSBF-C-63-80-PPSA-N3-R
- Brand:
- Festo
Subtotal (1 unit)*
£234.82
(exc. VAT)
£281.78
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £234.82 |
*price indicative
- RS Stock No.:
- 203-9744
- Mfr. Part No.:
- DSBF-C-63-80-PPSA-N3-R
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Pneumatic Profile Cylinder | |
| Series | DSBF | |
| Model Number | 1780908 | |
| Action Type | Double Acting | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Anodised Wrought Aluminium Alloy | |
| Stroke Length | 80mm | |
| Length | 22mm | |
| Piston Rod Thread Size | M16 x 1.5 | |
| Rod Type | Piston | |
| Piston Rod Gender | Male | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 15552, ISO8573-1:2010 (7:4:4), RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Pneumatic Profile Cylinder | ||
Series DSBF | ||
Model Number 1780908 | ||
Action Type Double Acting | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Anodised Wrought Aluminium Alloy | ||
Stroke Length 80mm | ||
Length 22mm | ||
Piston Rod Thread Size M16 x 1.5 | ||
Rod Type Piston | ||
Piston Rod Gender Male | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 15552, ISO8573-1:2010 (7:4:4), RoHS | ||
- COO (Country of Origin):
- DE
The Festo DSBF series ISO double-acting cylinder has a pneumatic cushioning with self-adjusting at both ends via proximity sensor. It has stroke 80 mm and piston diameter 63 mm.
Piston rod thread = M16x1.5
Assembly position = any
Maximum operating pressure = 12 bar
