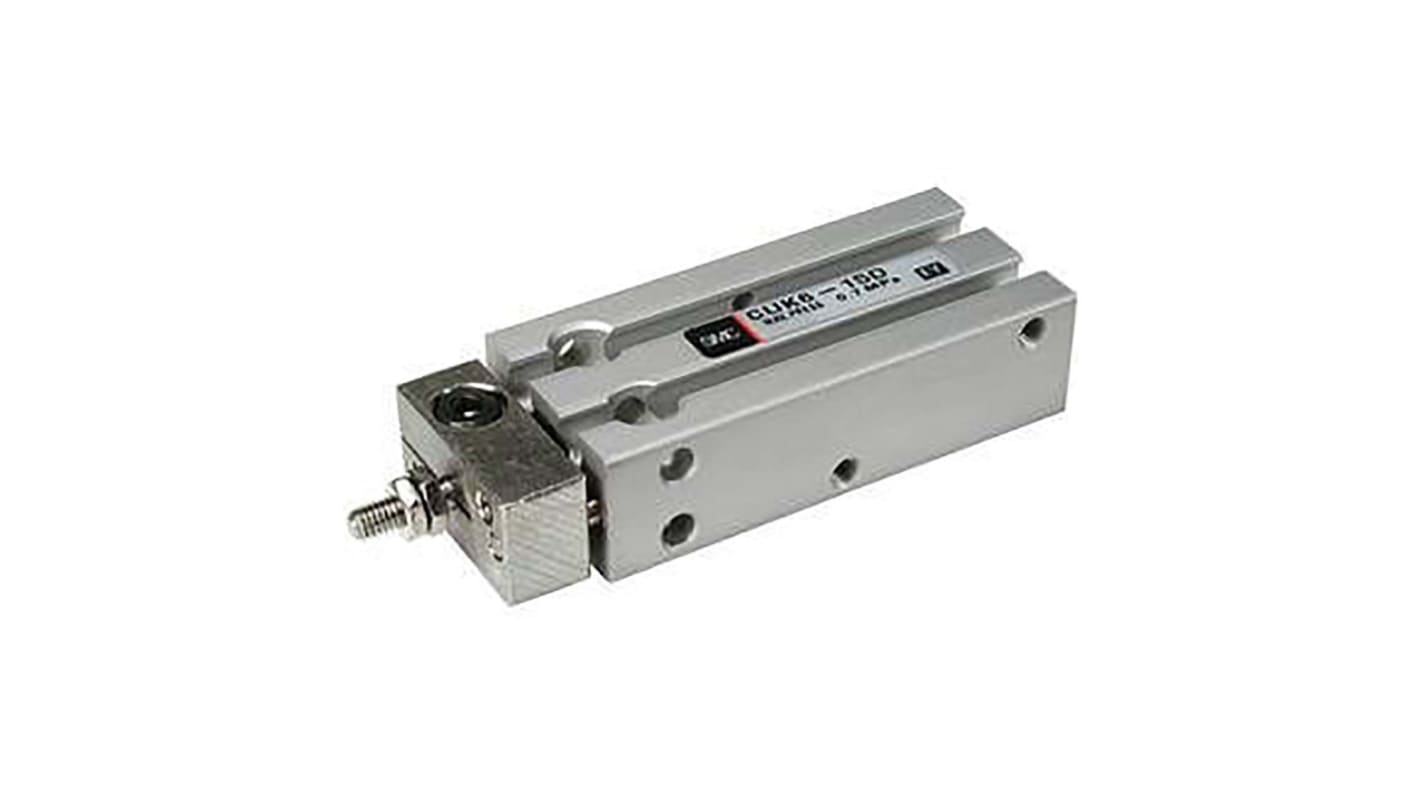

SMC Pneumatic Piston Rod Cylinder - 10mm Bore, 15mm Stroke, CUK Series, Double Acting
- RS Stock No.:
- 196-4518
- Mfr. Part No.:
- CDUK10-15D
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£66.72
(exc. VAT)
£80.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £66.72 |
5 - 9 | £64.06 |
10 + | £62.72 |
*price indicative
- RS Stock No.:
- 196-4518
- Mfr. Part No.:
- CDUK10-15D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CUK | |
Stroke | 15mm | |
Bore | 10mm | |
Action | Double | |
Port Connection | M4 | |
Cushioning Type | Rubber Bumper | |
Dimensions | 72 x 24 x 15mm | |
Length | 72mm | |
Height | 15mm | |
Width | 24mm | |
Maximum Operating Pressure | 0.7 MPa | |
Absolute Maximum Pressure | 1.05MPa | |
Weight | 51g | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CUK | ||
Stroke 15mm | ||
Bore 10mm | ||
Action Double | ||
Port Connection M4 | ||
Cushioning Type Rubber Bumper | ||
Dimensions 72 x 24 x 15mm | ||
Length 72mm | ||
Height 15mm | ||
Width 24mm | ||
Maximum Operating Pressure 0.7 MPa | ||
Absolute Maximum Pressure 1.05MPa | ||
Weight 51g | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- CN
Bore sizes from 6mm to 32mm available
Stroke lengths up to 100mm
Any surfaces can be used for mounting
Space saving
Auto-switch capable
Stroke lengths up to 100mm
Any surfaces can be used for mounting
Space saving
Auto-switch capable
