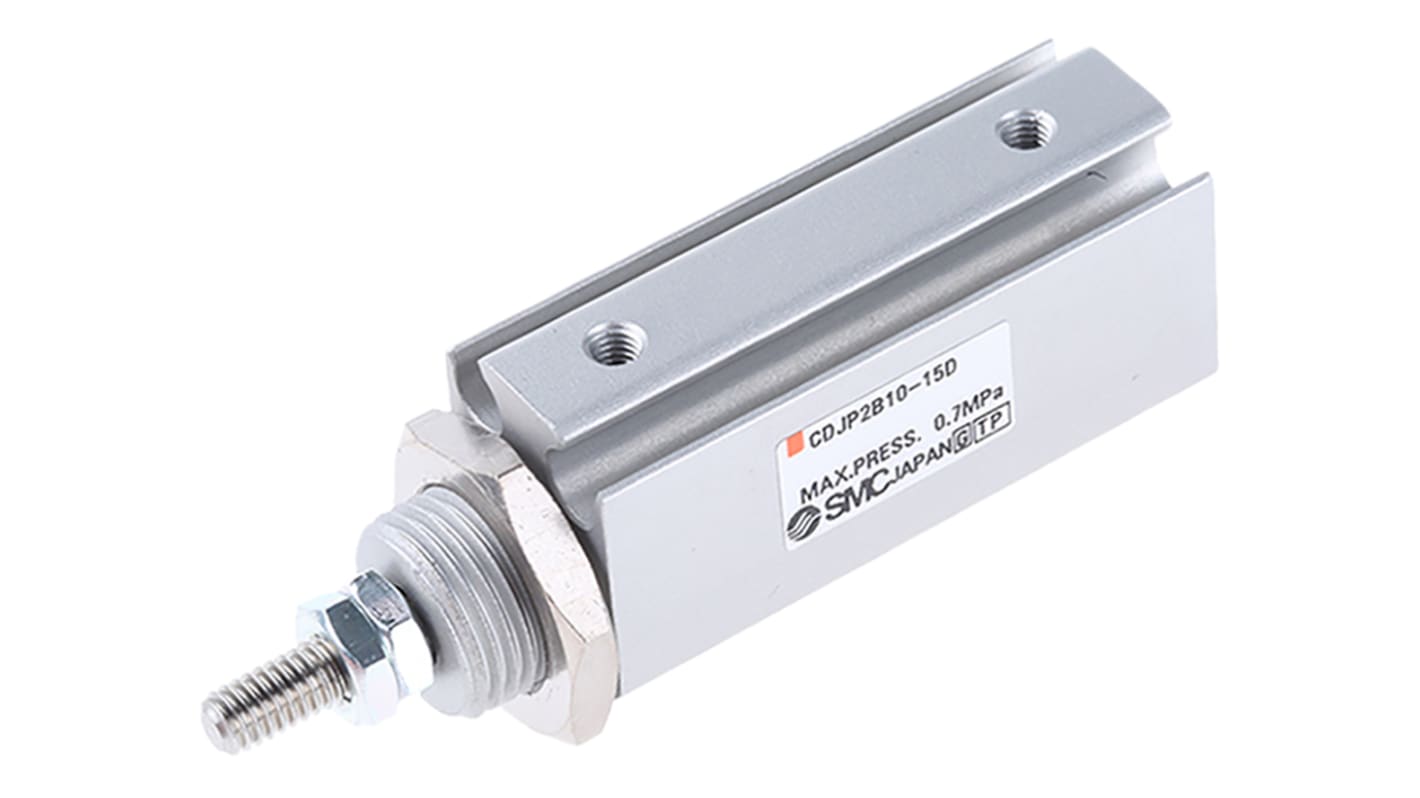

SMC Pneumatic Piston Rod Cylinder - 10mm Bore, 15mm Stroke, CJP2 Series, Double Acting

View this category
Save 9% when you buy 10 units

Subtotal (1 unit)*

£35.05

(exc. VAT)

£42.06

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£35.05
5 - 9£32.98
10 +£31.60

*price indicative

RS Stock No.:
547-625
Mfr. Part No.:
CDJP2B10-15D
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Manufacturer Series

CJP2

Stroke

15mm

Bore

10mm

Action

Double

Port Connection

M3 x 0.5

Cushioning Type

Rubber

Dimensions

54.5 x 15 x 19mm

Width

15mm

Height

19mm

Length

54.5mm

Maximum Operating Pressure

0.7 MPa

Maximum Operating Temperature

+70°C

Weight

32g

Piston Speed

50 → 500mm/s

Minimum Operating Temperature

-10°C

Non Compliant

COO (Country of Origin):
CN

Cylinders


Bore sizes 6, 10, 16mm
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends
