SMC Pneumatic Piston Rod Cylinder - 10mm Bore, 5mm Stroke, CJP2 Series, Double Acting
- RS Stock No.:
- 547-619
- Mfr. Part No.:
- CDJP2B10-5D
- Brand:
- SMC

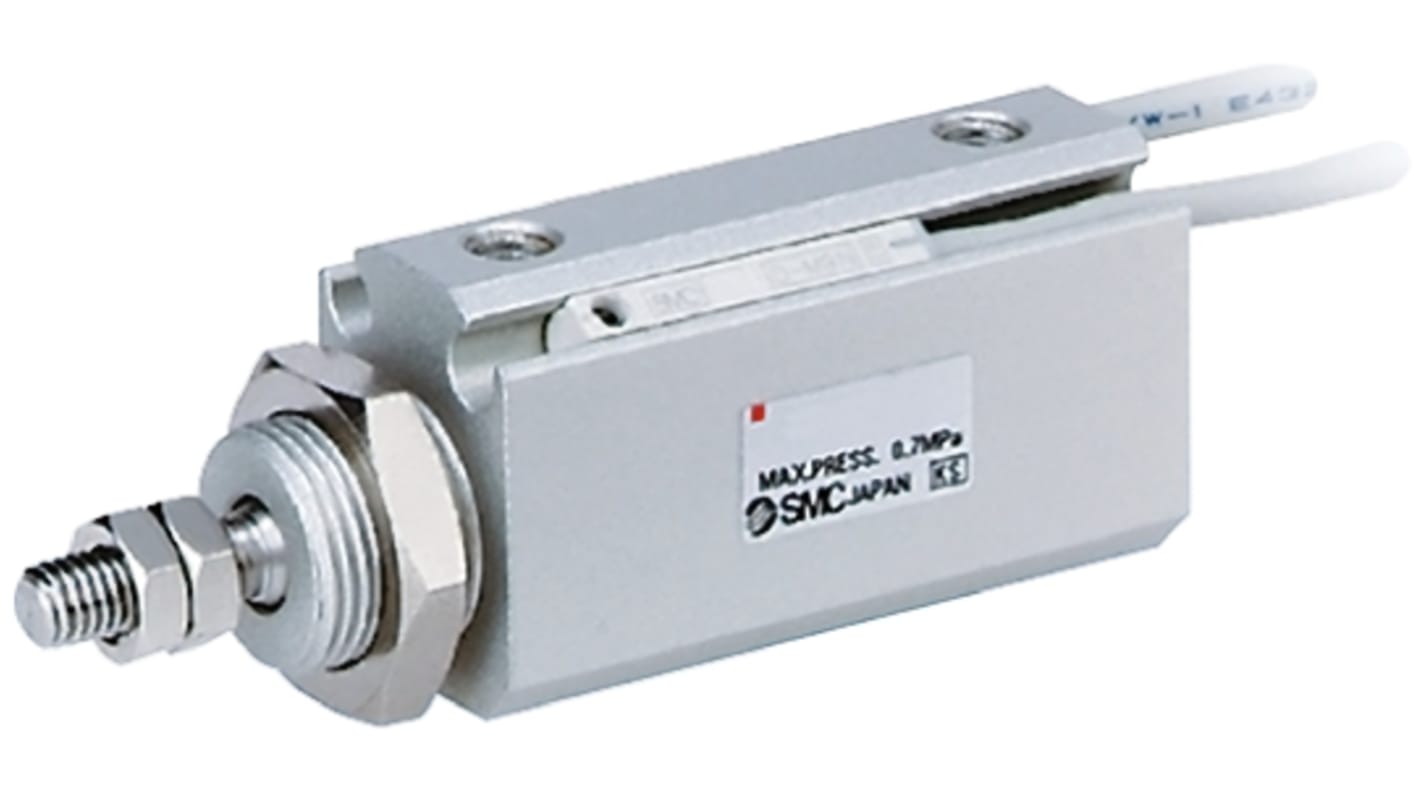

Image representative of range
Save 9% when you buy 10 units
Subtotal (1 unit)*
£33.33
(exc. VAT)
£40.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
---|---|
1 - 4 | £33.33 |
5 - 9 | £31.36 |
10 + | £30.06 |
*price indicative
- RS Stock No.:
- 547-619
- Mfr. Part No.:
- CDJP2B10-5D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CJP2 | |
Bore | 10mm | |
Action | Double | |
Stroke | 5mm | |
Port Connection | M3 x 0.5 | |
Cushioning Type | Rubber | |
Dimensions | 44.5 x 15 x 19mm | |
Width | 15mm | |
Height | 19mm | |
Length | 44.5mm | |
Maximum Operating Pressure | 0.7 MPa | |
Minimum Operating Temperature | -10°C | |
Weight | 27g | |
Maximum Operating Temperature | +70°C | |
Piston Speed | 50 → 500mm/s | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CJP2 | ||
Bore 10mm | ||
Action Double | ||
Stroke 5mm | ||
Port Connection M3 x 0.5 | ||
Cushioning Type Rubber | ||
Dimensions 44.5 x 15 x 19mm | ||
Width 15mm | ||
Height 19mm | ||
Length 44.5mm | ||
Maximum Operating Pressure 0.7 MPa | ||
Minimum Operating Temperature -10°C | ||
Weight 27g | ||
Maximum Operating Temperature +70°C | ||
Piston Speed 50 → 500mm/s | ||
Non Compliant
- COO (Country of Origin):
- CN
Cylinders
Bore sizes 6, 10, 16mm
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends
Magnetic piston standard
Compact design
Lubrication not required
Male-threaded rod end
IP67 rated
Proof pressure 1.05 bar
Operating pressure 1.2 bar, 6mm dia and 0.6 bar, 10mm/16mm dia (min) 7 bar (max)
Ambient and fluid temperature -10ºC to +60°C
Stroke tolerance +1.0mm, -0mm
Rubber bumper cushion at both ends
