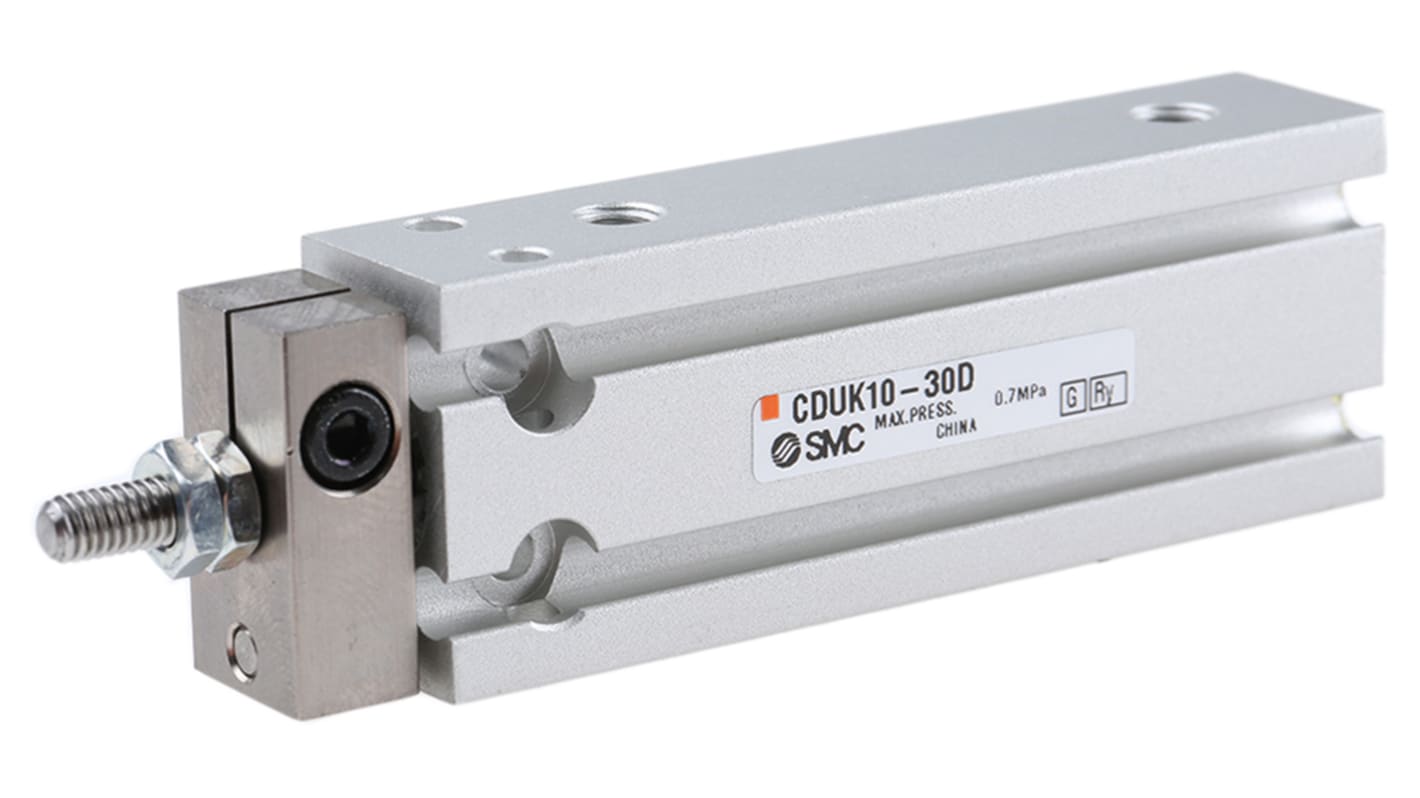

SMC Pneumatic Piston Rod Cylinder - 10mm Bore, 30mm Stroke, CUK Series, Double Acting
- RS Stock No.:
- 183-4731
- Mfr. Part No.:
- CDUK10-30D
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£71.04
(exc. VAT)
£85.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £71.04 |
5 + | £66.89 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£55.58
(exc. VAT)
£66.70
(inc. VAT)
- RS Stock No.:
- 183-4731
- Mfr. Part No.:
- CDUK10-30D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CUK | |
Stroke | 30mm | |
Action | Double | |
Bore | 10mm | |
Port Connection | M5 x 0.8 | |
Cushioning Type | Rubber | |
Dimensions | 87 x 15 x 24mm | |
Length | 87mm | |
Height | 24mm | |
Width | 15mm | |
Maximum Operating Pressure | 0.7 MPa | |
Absolute Maximum Pressure | 1.05MPa | |
Maximum Operating Temperature | +70°C | |
Weight | 63g | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CUK | ||
Stroke 30mm | ||
Action Double | ||
Bore 10mm | ||
Port Connection M5 x 0.8 | ||
Cushioning Type Rubber | ||
Dimensions 87 x 15 x 24mm | ||
Length 87mm | ||
Height 24mm | ||
Width 15mm | ||
Maximum Operating Pressure 0.7 MPa | ||
Absolute Maximum Pressure 1.05MPa | ||
Maximum Operating Temperature +70°C | ||
Weight 63g | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
CU Series Cylinders
The series CU free mount cylinder saves space and allows direct and precise mounting, Options include auto-switch capabilities, free mount choices, recessed switch mounting grooves, non-rotating rod, single and double acting and rubber bumpers standard.
Maximum operating pressure 7 bar, 10.5 bar proof pressure
Ambient and fluid temperature 5°C to 60°C
Lubrication not required
Rubber cushion to both sides
Stroke allowance +1.0mm
Port size M5, except 32Ø which is Rc(PT) 1//8 in.
Ambient and fluid temperature 5°C to 60°C
Lubrication not required
Rubber cushion to both sides
Stroke allowance +1.0mm
Port size M5, except 32Ø which is Rc(PT) 1//8 in.

CDU 10 - 32mm Diameter
A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
