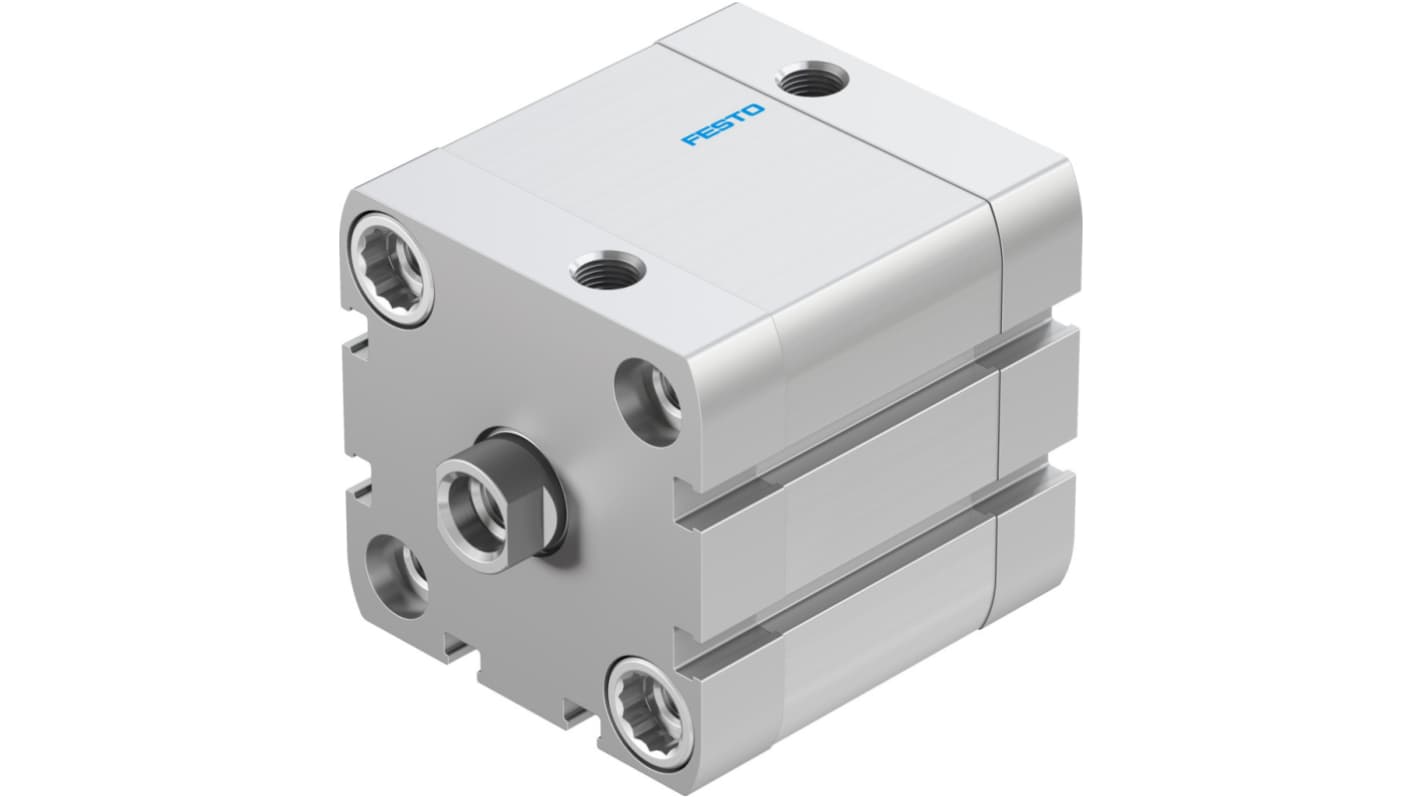

Festo Pneumatic Cylinder - 536324, 50mm Bore, 25mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 136-6825
- Mfr. Part No.:
- ADN-50-25-I-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£108.34
(exc. VAT)
£130.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £108.34 |
*price indicative
- RS Stock No.:
- 136-6825
- Mfr. Part No.:
- ADN-50-25-I-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536324 | |
Bore | 50mm | |
Action | Double | |
Stroke | 25mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Dimensions | 65.5 x 65.5 x 77.7mm | |
Width | 65.5mm | |
Height | 65.5mm | |
Diameter | 50mm | |
Length | 77.7mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
VDMA Standard | VDMA24364-B1/B2-L | |
Stroke Interval Weight | 162 g | |
Minimum Operating Temperature | -20°C | |
Weight | 617g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536324 | ||
Bore 50mm | ||
Action Double | ||
Stroke 25mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Dimensions 65.5 x 65.5 x 77.7mm | ||
Width 65.5mm | ||
Height 65.5mm | ||
Diameter 50mm | ||
Length 77.7mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Stroke Interval Weight 162 g | ||
Minimum Operating Temperature -20°C | ||
Weight 617g | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- TR
Festo Series ADN Pneumatic Cylinder, 50mm Bore, 25mm Stroke - ADN-50-25-I-P-A, Numeric Part Number: 536324
This pneumatic cylinder is designed for efficient actuation in various industrial applications. With a robust design measuring 65.5 x 65.5 x 77.7mm, it features a bore diameter of 50mm and a stroke length of 25mm. This double-acting pneumatic cylinder provides reliable and precise movement for automation tasks, making it a vital component in many systems.
Features & Benefits
• Operates with a maximum pressure of 10 bar for high performance
• Capable of functioning in temperatures from -20 °C to +80 °C
• Equipped with elastic cushioning rings for smooth operation
• Standardised to ISO 21287 for compatibility in various configurations
• Female piston rod thread allows for easy attachment of accessories
• Weighs only 162g, making it a compact solution for space-saving applications
• Capable of functioning in temperatures from -20 °C to +80 °C
• Equipped with elastic cushioning rings for smooth operation
• Standardised to ISO 21287 for compatibility in various configurations
• Female piston rod thread allows for easy attachment of accessories
• Weighs only 162g, making it a compact solution for space-saving applications
Applications
• Utilised in pneumatic automation systems across various sectors
• Effective for controlling machinery in manufacturing environments
• Employed in robotics for precise movement controls
• Suitable for use in conveyor systems to maximise efficiency
• Effective for controlling machinery in manufacturing environments
• Employed in robotics for precise movement controls
• Suitable for use in conveyor systems to maximise efficiency
How does the construction material contribute to the cylinder's durability?
The durable construction materials ensure that the cylinder can withstand demanding environments, maintaining integrity under high pressures and varying temperatures, thus extending its operational life.
What is the significance of the elastic cushioning rings in its operation?
The elastic cushioning rings allow for gentle deceleration of the piston at the end of its stroke, reducing impact and wear, which enhances both the efficiency and longevity of the actuator.
How does the maximum operating pressure affect the application fields?
A maximum pressure of 10 bar enables this cylinder to perform effectively in a variety of tasks, from light-duty automation to more demanding industrial applications, providing versatility in usage.
