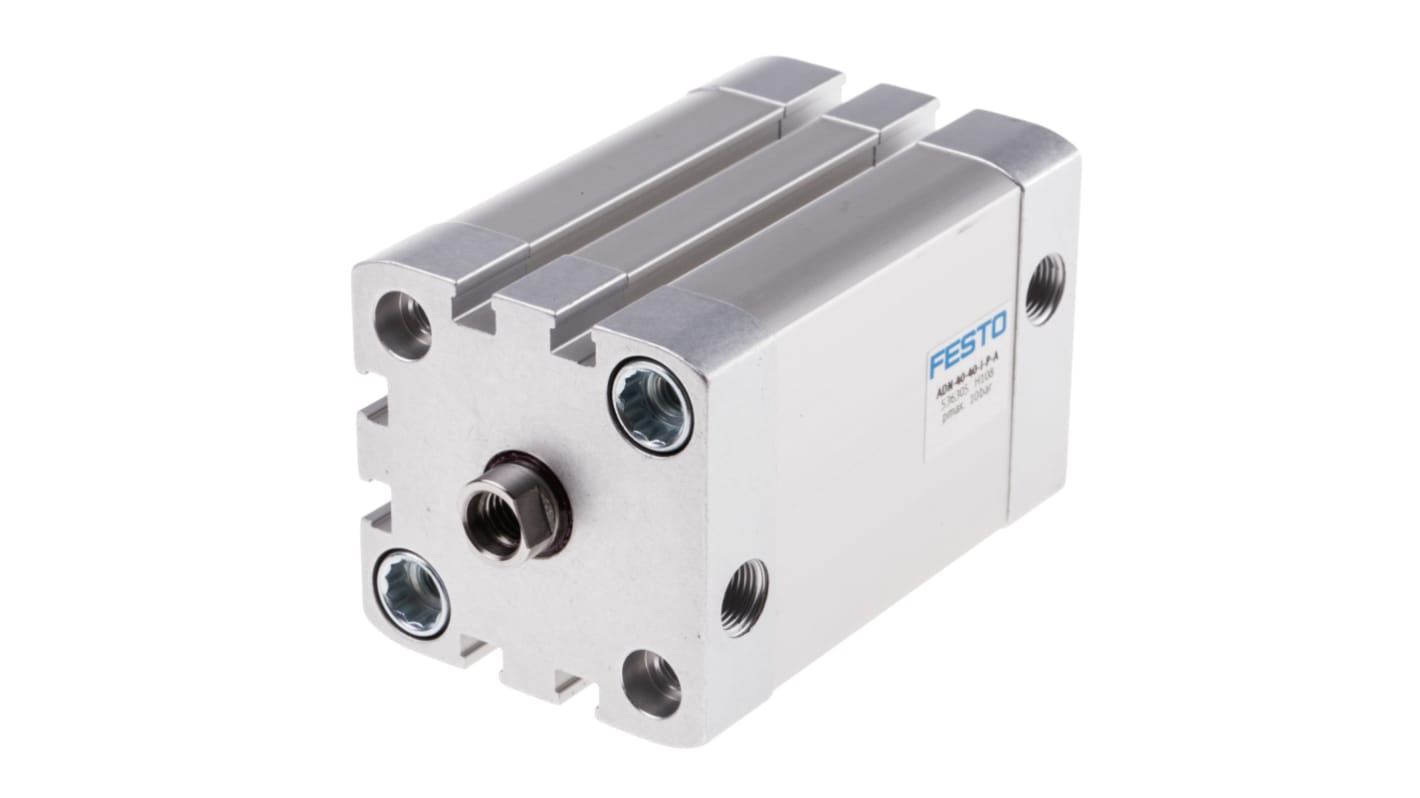

Festo Pneumatic Cylinder - 536305, 40mm Bore, 40mm Stroke, ADN Series, Double Acting

View this category
Bulk discount available

Subtotal (1 unit)*

£98.49

(exc. VAT)

£118.19

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 5 left, ready to ship
  • Plus 3 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£98.49
5 +£94.55

*price indicative

RS Stock No.:
121-5771
Mfr. Part No.:
ADN-40-40-I-P-A
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

ADN

Model Number p

536305

Stroke

40mm

Bore

40mm

Action

Double

Port Connection

G 1/8

Pneumatic Connection

G 1/8

Piston Rod Thread Gender

Female

Cushioning Type

Elastic

Dimensions

54.5 x 54.5 x 91.1mm

Length

91.1mm

Height

54.5mm

Width

54.5mm

Maximum Operating Pressure

10 bar

ISO Standard

21287

Maximum Operating Temperature

+80°C

Minimum Operating Temperature

-20°C

VDMA Standard

24364

COO (Country of Origin):
DE

Festo Pneumatic Cylinder, 80g Moving Mass, M8 Piston Rod Thread - ADN-40-40-I-P-A


Need a space-saving solution for generating linear motion in your automated system? This pneumatic cylinder from Festo pushes things in the right direction. With compact dimensions of 54.5 (W) x 54.5 (H) x 91.1mm (L), it fits easily into busy setups. As a double-acting device, it delivers 754N of force on the outstroke and 686N on the instroke, so it's a great all-rounder for medium-duty applications. Cushioning rings at each end soften the impact of the piston to ensure reliable long-term performance. Install it directly in seconds using the handy through-hole mounting or internal thread options.

• Standard G1/8 port, so it's compatible with existing systems
• Durable high alloy steel rod resists corrosion to deliver a long service life
• Broad operating temperature range between -20°C and +80°C suits use in challenging environments
• Features slots to fit flush-mounted proximity sensors for automated control

Applications


• Manufacturing systems
• Automotive industry
• Food and drink production

What's the operating pressure range of this pneumatic cylinder?


This pneumatic cylinder has an operating pressure range of 0.6 to 10 bar, so it's a versatile piece of kit.


FESTO ADN Series
