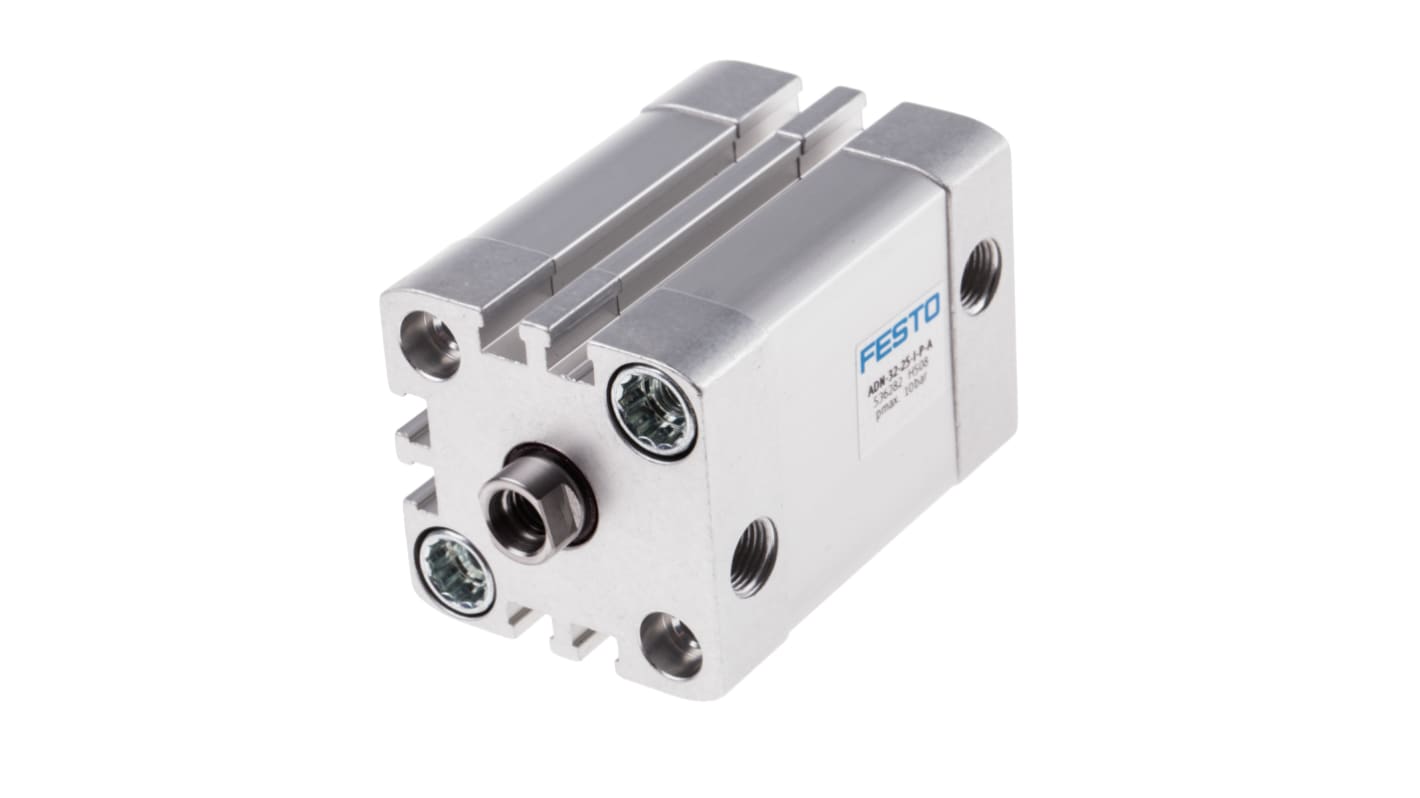

Festo Pneumatic Cylinder - 536282, 32mm Bore, 25mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 121-5748
- Mfr. Part No.:
- ADN-32-25-I-P-A
- Brand:
- Festo
Save 4% when you buy 5 units
Subtotal (1 unit)*
£70.89
(exc. VAT)
£85.07
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 18 left, ready to ship
- Plus 9 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £70.89 |
5 + | £68.05 |
*price indicative
- RS Stock No.:
- 121-5748
- Mfr. Part No.:
- ADN-32-25-I-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536282 | |
Action | Double | |
Stroke | 25mm | |
Bore | 32mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Dimensions | 47 x 47 x 75mm | |
Length | 75mm | |
Height | 47mm | |
Width | 47mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
VDMA Standard | VDMA24364-B1/B2-L | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536282 | ||
Action Double | ||
Stroke 25mm | ||
Bore 32mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Dimensions 47 x 47 x 75mm | ||
Length 75mm | ||
Height 47mm | ||
Width 47mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, 10 Bar Maximum Operating Pressure, 25mm Stroke - ADN-32-25-I-P-A
When you need a pneumatic cylinder that can handle continuous use, install this option from Festo. It has low-friction construction with a polymer end cushion that reduces noise and vibration to keep movements quiet and smooth. This also ensures the cylinder unit works efficiently and minimises wear on parts. As a double-action device, it's capable of moving loads up and down or forwards and backwards. It's mountable horizontally or vertically and has a modular design to easily combine it with mounting brackets, sensors and valves for versatility.
• Compact dimensions of 75 (length) x 47 (width) x 47mm (height) to fit inside robotic arms and machine tools
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Flexible polymer cushioning means no adjustments are necessary, saving you installation and maintenance time
• Wide operating temperature range between -20°C and +80°C for use in demanding environments
• Flexible polymer cushioning means no adjustments are necessary, saving you installation and maintenance time
Applications
• Industrial automation
• Materials handling
• Conveying systems
• Assembly lines
• Materials handling
• Conveying systems
• Assembly lines
How do I mount proximity sensors on this pneumatic cylinder?
This pneumatic cylinder has slots on the sides of its body, so it's easy to mount proximity sensors without taking up much space.
FESTO ADN Series
