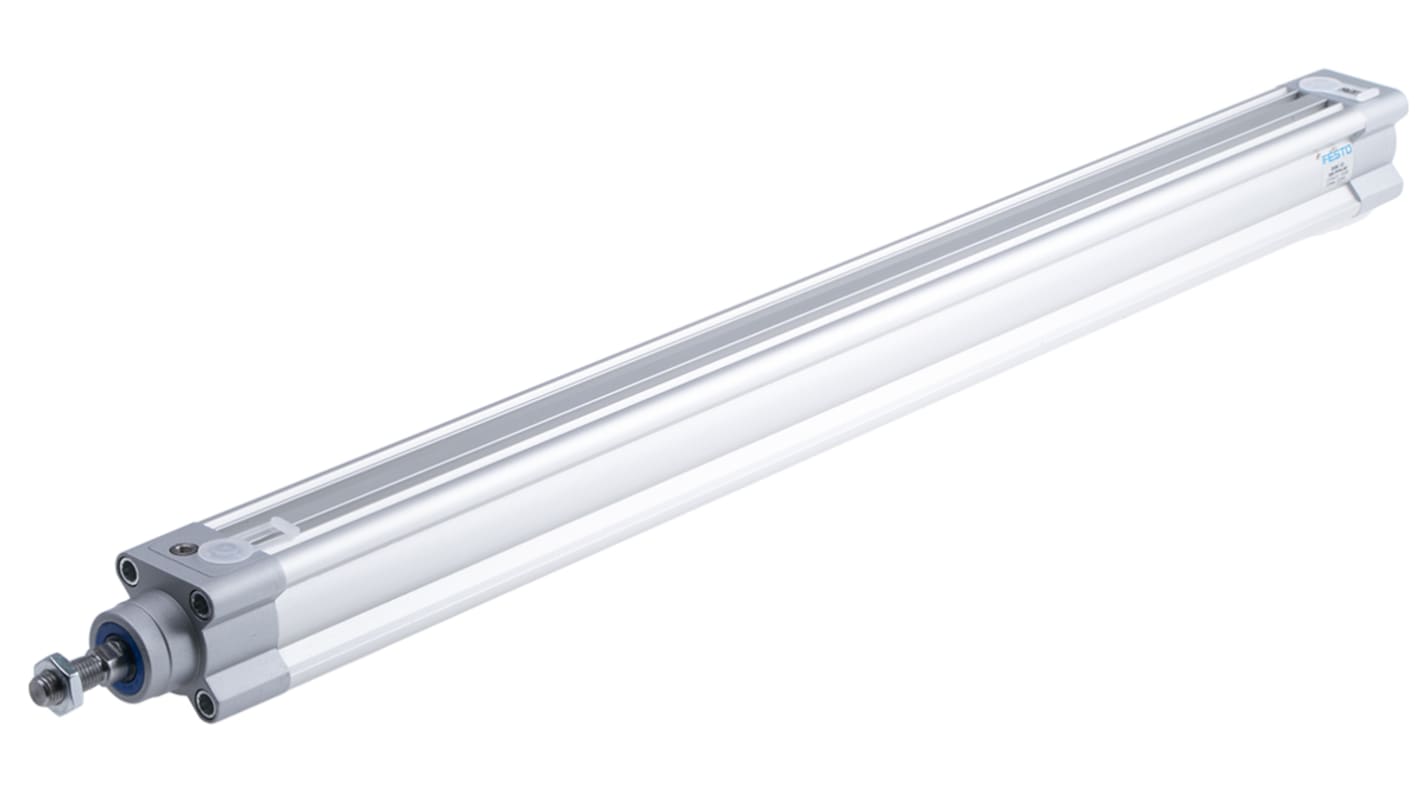

Festo Pneumatic Piston Rod Cylinder - 1376433, 32mm Bore, 500mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5255
- Mfr. Part No.:
- DSBC-32-500-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£159.04
(exc. VAT)
£190.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £159.04 |
*price indicative
- RS Stock No.:
- 121-5255
- Mfr. Part No.:
- DSBC-32-500-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376433 | |
Bore | 32mm | |
Action | Double | |
Stroke | 500mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 645.1 x 45 x 45mm | |
Width | 45mm | |
Height | 45mm | |
Length | 645.1mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Minimum Operating Temperature | -20°C | |
Weight | 465g | |
Maximum Operating Temperature | +80°C | |
Stroke Interval Weight | 27 g @ 10 mm Stroke | |
VDMA Standard | 24562 | |
Test Weight | 465 g @ 0 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376433 | ||
Bore 32mm | ||
Action Double | ||
Stroke 500mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 645.1 x 45 x 45mm | ||
Width 45mm | ||
Height 45mm | ||
Length 645.1mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
Weight 465g | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 27 g @ 10 mm Stroke | ||
VDMA Standard 24562 | ||
Test Weight 465 g @ 0 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, TPE-U(PU) Seals, High Alloy Steel Piston Rod - DSBC-32-500-PPVA-N3
Take the movement of heavy loads off your worry list with this pneumatic piston rod cylinder from Festo. The alternate opening and closing of its two air ports channels compressed air through its piston to achieve forwards and backwards thrust. This makes it your go-to work partner for lifting and dropping materials. For enhanced long-term performance, it comes with adjustable PPV cushioning on both ends to reduce the impact from the piston rod on its return stroke.
Features & Benefits
• Broad operating temperature range of -20°C to +80°C for use in challenging conditions
• Stroke length of 500mm for long-range load movement
• Maximum operating pressure of 12 bar makes it suitable for heavy-duty applications
• Light weight of 465g for easy handling during installation
• Compatible with proximity sensors for automated operation
• Stroke length of 500mm for long-range load movement
• Maximum operating pressure of 12 bar makes it suitable for heavy-duty applications
• Light weight of 465g for easy handling during installation
• Compatible with proximity sensors for automated operation
Applications
• Construction industry
• Water treatment facilities
• Food production plants
• Water treatment facilities
• Food production plants
How do I mount this cylinder?
This unit has a G1/4 thread that allows you to screw it onto your equipment. This process is simple and doesn't need complex tools, saving time and hassle. You can mount it in any position to suit the layout of your system.
