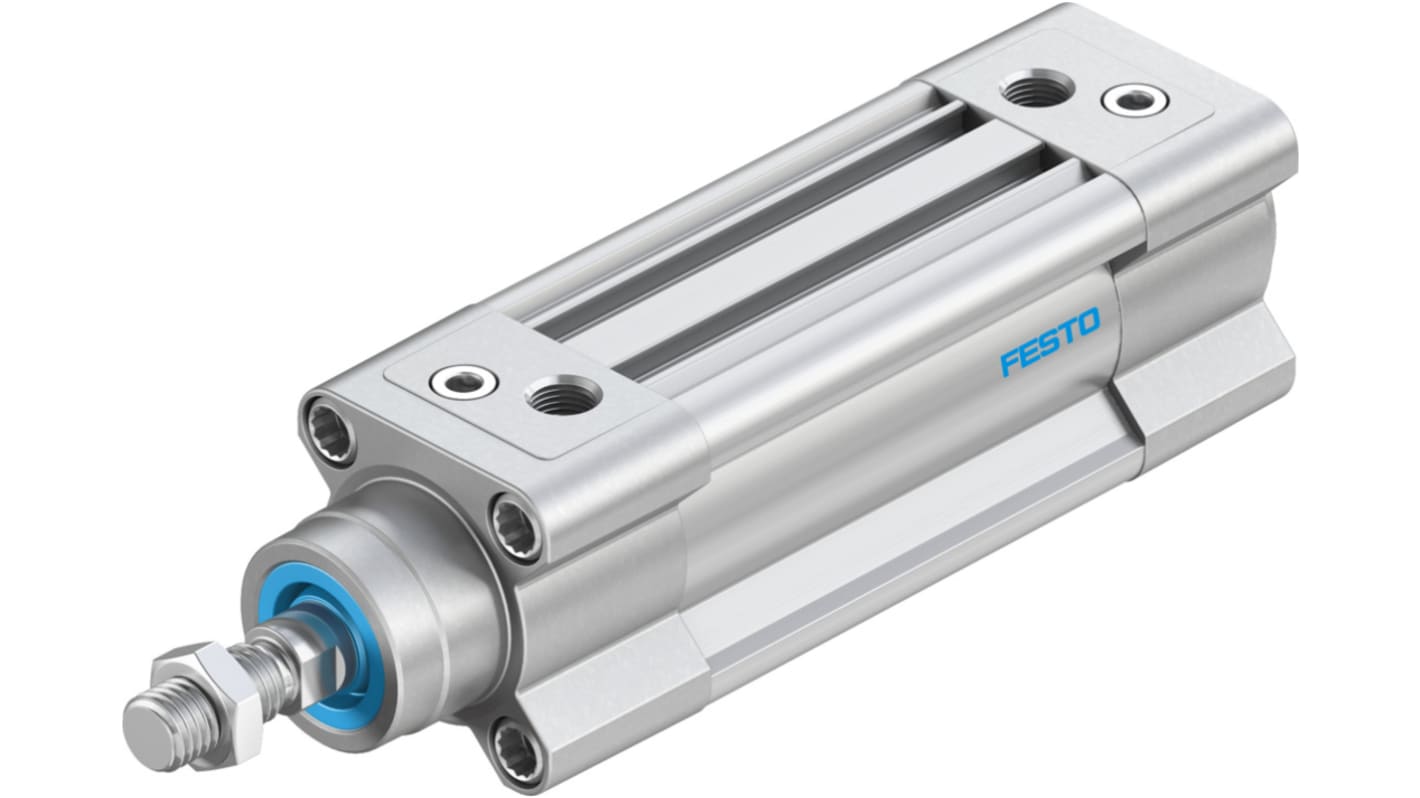

Festo Pneumatic Piston Rod Cylinder - 1376423, 32mm Bore, 40mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5253
- Mfr. Part No.:
- DSBC-32-40-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£127.97
(exc. VAT)
£153.56
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 6 left, ready to ship
- Plus 2 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £127.97 |
*price indicative
- RS Stock No.:
- 121-5253
- Mfr. Part No.:
- DSBC-32-40-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376423 | |
Stroke | 40mm | |
Bore | 32mm | |
Action | Double | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 185.1 x 45 x 45mm | |
Height | 45mm | |
Length | 185.1mm | |
Width | 45mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Stroke Interval Weight | 27 g @ 10 mm Stroke | |
Maximum Operating Temperature | +80°C | |
Test Weight | 465 g @ 0 mm Stroke | |
Weight | 465g | |
VDMA Standard | 24562 | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376423 | ||
Stroke 40mm | ||
Bore 32mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 185.1 x 45 x 45mm | ||
Height 45mm | ||
Length 185.1mm | ||
Width 45mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 27 g @ 10 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
Test Weight 465 g @ 0 mm Stroke | ||
Weight 465g | ||
VDMA Standard 24562 | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 40mm Stroke, 32mm Bore - DSBC-32-40-PPVA-N3, Numeric Part Number: 1376423
This pneumatic piston rod cylinder is engineered for versatility and efficiency in various automation tasks. With a bore of 32mm and a stroke length of 40mm, this double-acting cylinder effectively combines power with precision. It offers adjustable pneumatic cushioning and complies with ISO 15552 standards.
Features & Benefits
• Double-acting operation allows for flexible motion control
• Adjustable pneumatic cushioning optimises performance in delicate tasks
• Compatible with G 1/8 pneumatic connections for straightforward integration
• Durable construction includes a high-alloy steel piston rod
• Operates under pressures up to 12 bar for demanding applications
• Adjustable pneumatic cushioning optimises performance in delicate tasks
• Compatible with G 1/8 pneumatic connections for straightforward integration
• Durable construction includes a high-alloy steel piston rod
• Operates under pressures up to 12 bar for demanding applications
Applications
• Employed in assembly automation for controlled movement
• Suitable for materials handling and transport systems
• Ideal for electronics and electrical industry applications
• Utilised in robotic systems requiring precise actuation
• Incorporated into packaging lines to enhance efficiency
• Suitable for materials handling and transport systems
• Ideal for electronics and electrical industry applications
• Utilised in robotic systems requiring precise actuation
• Incorporated into packaging lines to enhance efficiency
What type of pneumatic medium should be used?
Compressed air that meets ISO 8573-12010 standards is recommended.
Can the cushioning settings be adjusted?
Yes, the pneumatic cushioning can be adjusted at both ends for optimal performance.
What are the ambient temperature limits for operation?
The cylinder operates effectively in temperatures ranging from -20 to +80°C.
How can it be mount the cylinder?
It can be mounted via a female thread or with appropriate accessories to suit various configurations.
