Festo Pneumatic Piston Rod Cylinder - 1376313, 50mm Bore, 400mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-4779
- Mfr. Part No.:
- DSBC-50-400-PPSA-N3
- Brand:
- Festo

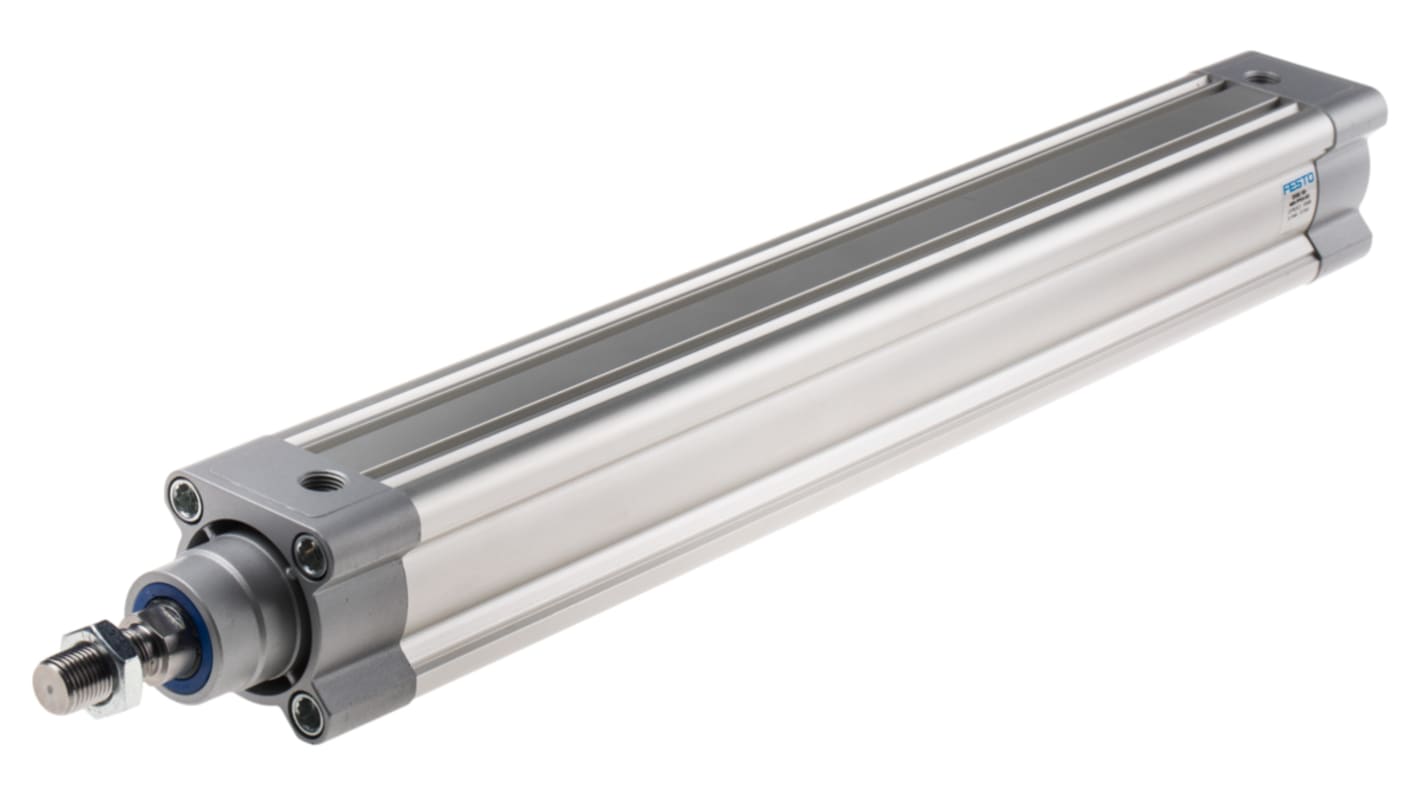

Image representative of range
Subtotal (1 unit)*
£203.40
(exc. VAT)
£244.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 999,999,994 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £203.40 |
*price indicative
- RS Stock No.:
- 121-4779
- Mfr. Part No.:
- DSBC-50-400-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376313 | |
Bore | 50mm | |
Action | Double | |
Stroke | 400mm | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 577.8 x 64 x 64mm | |
Width | 64mm | |
Length | 577.8mm | |
Height | 64mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Weight | 1.2kg | |
Stroke Interval Weight | 56 g @ 10 mm Stroke | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Test Weight | 1190 g @ 0 mm Stroke | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376313 | ||
Bore 50mm | ||
Action Double | ||
Stroke 400mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 577.8 x 64 x 64mm | ||
Width 64mm | ||
Length 577.8mm | ||
Height 64mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Weight 1.2kg | ||
Stroke Interval Weight 56 g @ 10 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
Test Weight 1190 g @ 0 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, Self-Adjusting End Cushioning, 0.4 to 12 Bar Operating Pressure - DSBC-50-400-PPSA-N3
Pair up this Festo pneumatic piston rod cylinder with a proximity sensor for spot-on contactless positioning of objects. Compact dimensions of 577.8 (L) x 64 (W) x 64mm (H) and a short stroke length of 400mm make it a practical choice for positioning small components on busy assembly lines. The unit is double-acting, so it moves in both a forward and backward direction. Energy-absorbing cushioning on either end of its piston rod allows it to operate at high speeds with little risk of damage. As the cushioning is self-adjusting, there's no need for manual intervention when conditions change.
Features & Benefits
• Standard G1/4 connection port for compatibility with common pneumatic devices
• Durable high-alloy steel piston rod resists wear and corrosion, making it suitable to use in harsh locations
• Optional mounting positions to best suit your setup
• Die-cast aluminium coated cover for longevity in industrial settings
• Durable high-alloy steel piston rod resists wear and corrosion, making it suitable to use in harsh locations
• Optional mounting positions to best suit your setup
• Die-cast aluminium coated cover for longevity in industrial settings
Applications
• Automated assembly lines
• Packing facilities
• Airports
• Food and beverage industries
• Packing facilities
• Airports
• Food and beverage industries
What's the operating pressure range of this pneumatic piston rod cylinder?
For versatility, you can use this component in a broad operating pressure range between 0.4 and 12 bar.
