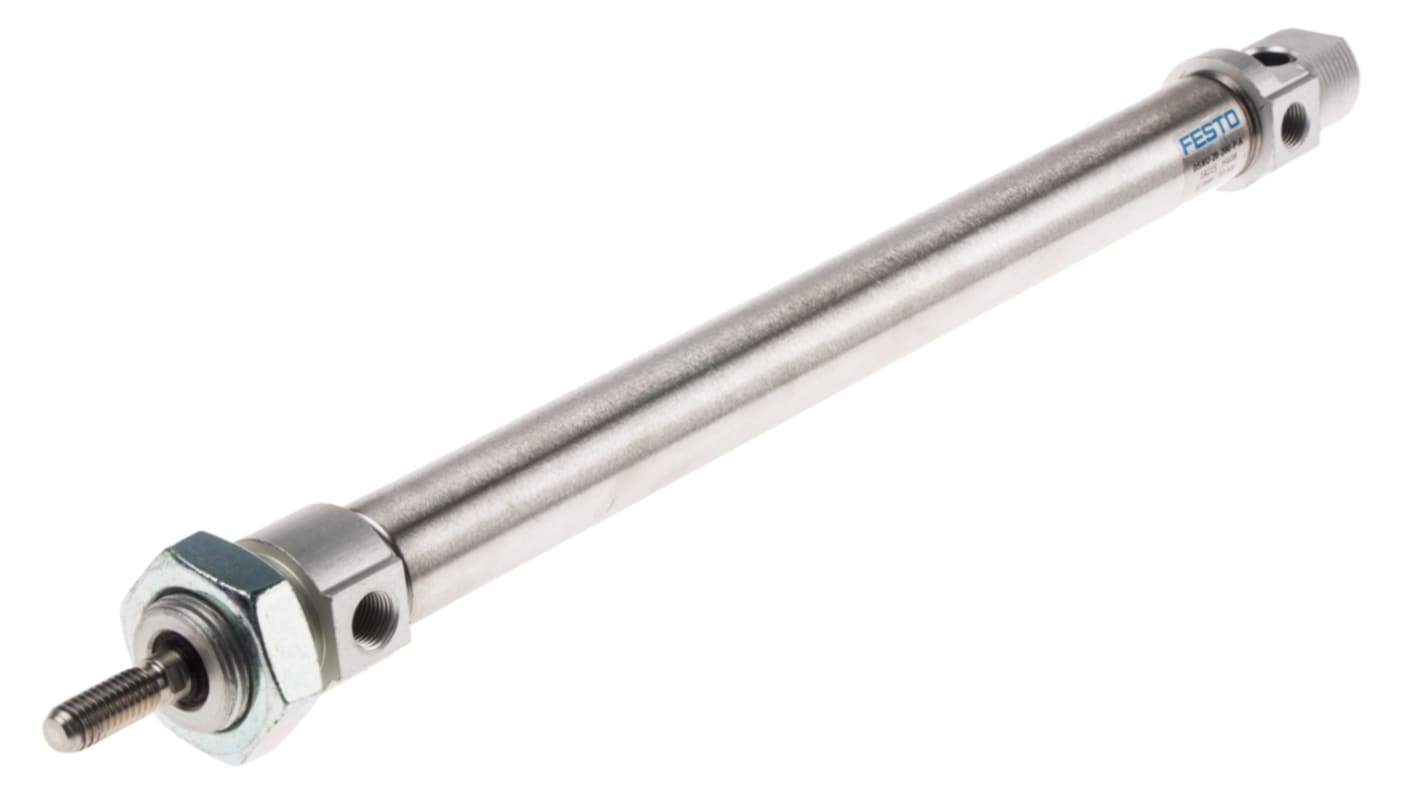

Festo Pneumatic Cylinder - 19215, 20mm Bore, 200mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4761
- Mfr. Part No.:
- DSNU-20-200-P-A
- Brand:
- Festo
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£56.24
(exc. VAT)
£67.49
(inc. VAT)
- RS Stock No.:
- 121-4761
- Mfr. Part No.:
- DSNU-20-200-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSNU | |
| Model Number p | 19215 | |
| Action | Double | |
| Stroke | 200mm | |
| Bore | 20mm | |
| Port Connection | G 1/8 | |
| Pneumatic Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Elastomer | |
| Dimensions | 27 x 332mm | |
| Length | 332mm | |
| Diameter | 27mm | |
| Maximum Operating Pressure | 10 bar | |
| ISO Standard | ISO 6432 | |
| VDMA Standard | VDMA 24364-B1/B2-L | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Weight | 330.8g | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19215 | ||
Action Double | ||
Stroke 200mm | ||
Bore 20mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 27 x 332mm | ||
Length 332mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
VDMA Standard VDMA 24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Weight 330.8g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, 186.8g Weight, Wrought Aluminium Alloy Housing - DSNU-20-200-P-A
Need a trusty workmate to help lift and push loads in your industrial workplace? Put this pneumatic cylinder from Festo on your team. It's a double-acting unit, meaning it generates linear motion in both directions. That means it's useful for operations that call for precision, like material handling applications. You can pair the cylinder up with a proximity sensor, making it a good fit for automated systems that rely on pinpoint accuracy. Flexible cushioning at both ends of the piston reduces vibration and noise to minimise wear and boost workplace comfort.
Features & Benefits
• Broad operating temperature range between -20°C and +80°C makes it a safe choice for challenging settings
• Wrought aluminium alloy housing protects against wear and impact to ensure long-lasting performance
• Advance stroke force of 188.5N and return force of 158.3N for use in medium-duty applications
• Can be assembled in any position for convenience
• Wrought aluminium alloy housing protects against wear and impact to ensure long-lasting performance
• Advance stroke force of 188.5N and return force of 158.3N for use in medium-duty applications
• Can be assembled in any position for convenience
Applications
• Agricultural equipment
• Assembly lines
• R&D labs
• Assembly lines
• R&D labs
How do I install this cylinder?
This cylinder has a G1/8 thread for simple screw mounting onto your pneumatic system. This process doesn't need complex tools, saving you time and effort.
