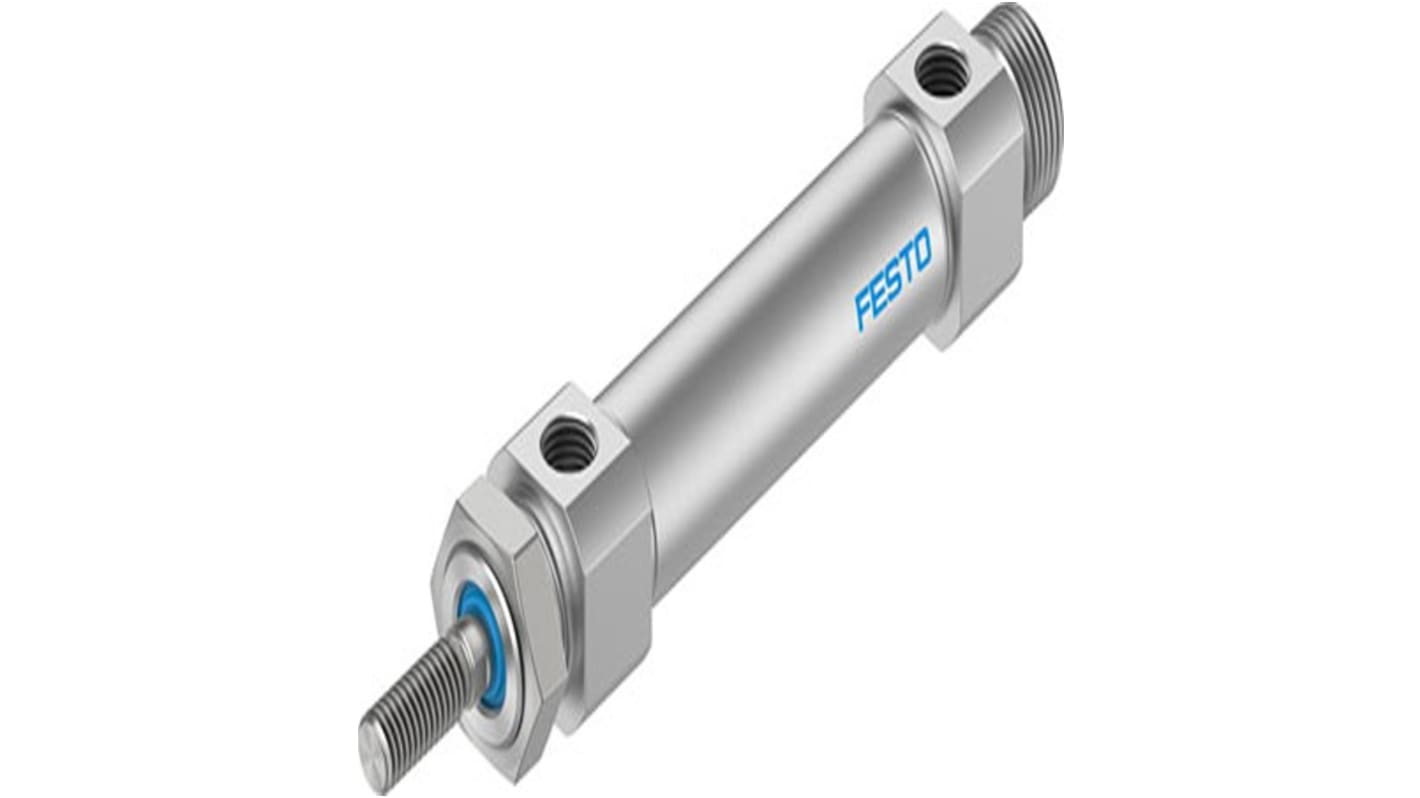

Festo Pneumatic Piston Rod Cylinder - 5224647, 20mm Bore, 200mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 273-7695
- Mfr. Part No.:
- DSNU-S-20-200-P-A-MX
- Brand:
- Festo
Subtotal (1 unit)*
£53.97
(exc. VAT)
£64.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £53.97 |
*price indicative
- RS Stock No.:
- 273-7695
- Mfr. Part No.:
- DSNU-S-20-200-P-A-MX
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 5224647 | |
Bore | 20mm | |
Action | Double | |
Stroke | 200mm | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 5224647 | ||
Bore 20mm | ||
Action Double | ||
Stroke 200mm | ||
- COO (Country of Origin):
- CN
The Festo Round cylinder has compressed air operating medium according to ISO 8573 1 2010. This device has position sensing using proximity switches and it has elastic cushioning rings or plates at both ends. This device has piston, piston rod and cylinder barrel design and it supports class 2 corrosion resistance class CRC.
RoHS compliant
Moderate corrosion stress
Lubricated operation possible
VDMA24364 B1B2 L LABS conformity
Moderate corrosion stress
Lubricated operation possible
VDMA24364 B1B2 L LABS conformity
