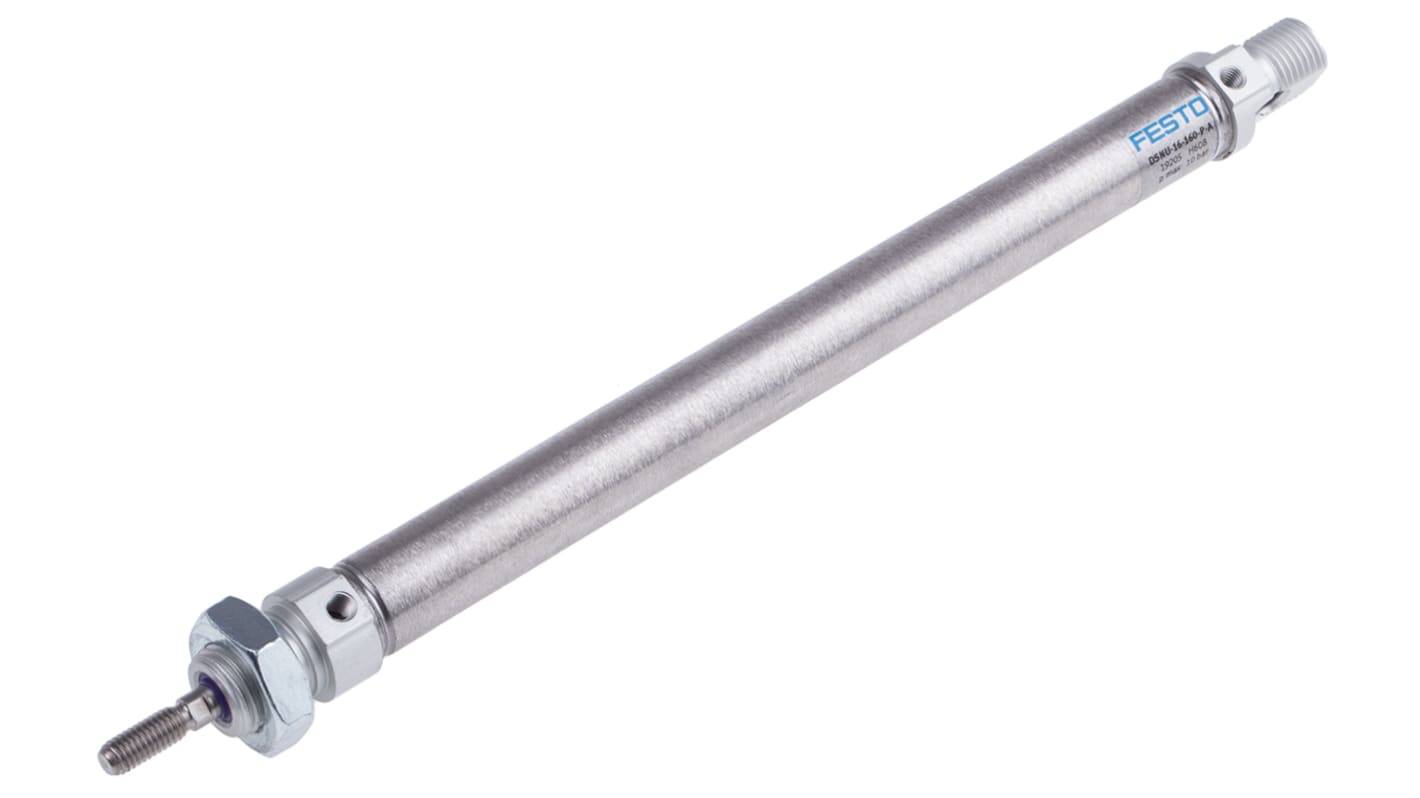

Festo Pneumatic Cylinder - 19205, 16mm Bore, 160mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4721
- Mfr. Part No.:
- DSNU-16-160-P-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£52.71
(exc. VAT)
£63.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £52.71 |
5 - 9 | £50.61 |
10 + | £48.48 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£50.25
(exc. VAT)
£60.30
(inc. VAT)
- RS Stock No.:
- 121-4721
- Mfr. Part No.:
- DSNU-16-160-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19205 | |
Action | Double | |
Stroke | 160mm | |
Bore | 16mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastomer | |
Dimensions | 20 x 271mm | |
Length | 271mm | |
Diameter | 20mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
VDMA Standard | VDMA24364 | |
Weight | 163.5g | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19205 | ||
Action Double | ||
Stroke 160mm | ||
Bore 16mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 20 x 271mm | ||
Length 271mm | ||
Diameter 20mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
VDMA Standard VDMA24364 | ||
Weight 163.5g | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
DSNU Series Roundline Cylinders - Flexible Cushioning
Festo DSNU series round pneumatic cylinders with flexible cushioning rings at both ends of the actuator barrel. Featuring a stainless steel piston rod within a 3 component system that provides excellent running performance and long service life. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod in a linear motion. An extensive range of accessories makes it possible to install the DSNU cylinders virtually anywhere.
Flexible Cushioning
The DSNU P type flexible cushioning pneumatic cylinders absorb energy directly via flexible cushioning rings which are integrated into the main piston. This energy absorbing method makes these cylinders ideal for small load and low speed applications.
Features and Benefits
Conforms to ISO 6432 providing standardised metric mounting dimensions
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation
Stainless steel piston rod with threaded connector
Wide range of stroke length and bore size variants that can be configured to suit a broad range of applications.
Long service life
Double acting operation
How do I mount the pneumatic cylinder?
The DSNU series pneumatic round actuators conform to ISO 6432 standards allowing them to be mounted in any position to suit the required application. The ISO 6432 standard establishes metric mounting dimensions for cylinders providing interchangeability of commonly used hydraulic and pneumatic cylinders. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.
Festo Pneumatic Cylinder, 16mm Bore, 1 to 10 Bar Operating Pressure Range - DSNU-16-160-P-A
Use this pneumatic cylinder from Festo to get industrial loads moving in the right direction. Thanks to its stroke length of 160mm, you'll find it's a dependable workmate for long-range operations like material handling. As it's a double-acting cylinder, compressed air accurately drives its forward and backward movement. A durable wrought aluminium alloy cover holds its own against impact and corrosion, so you can rest assured this device performs reliably in harsh environments.
Features & Benefits
• M5 pneumatic connection for compatibility with standard parts
• Safe to use in challenging settings, thanks to its broad operating temperature range between -20°C and +80°C
• NBR and TPE-U seals prevent leakage and ensure efficient performance
• Cushioning plates at each end absorb impact to minimise wear and noise
• Wide operating pressure range of 1 to 10 bar for use in low-pressure and high-pressure applications
• Safe to use in challenging settings, thanks to its broad operating temperature range between -20°C and +80°C
• NBR and TPE-U seals prevent leakage and ensure efficient performance
• Cushioning plates at each end absorb impact to minimise wear and noise
• Wide operating pressure range of 1 to 10 bar for use in low-pressure and high-pressure applications
Applications
• Transportation industry
• Lifts and elevators
• Marine engineering
• Lifts and elevators
• Marine engineering
What's the ideal assembly position for this cylinder?
You can install this unit in any position that suits your design needs, giving you flexibility in your setup.
