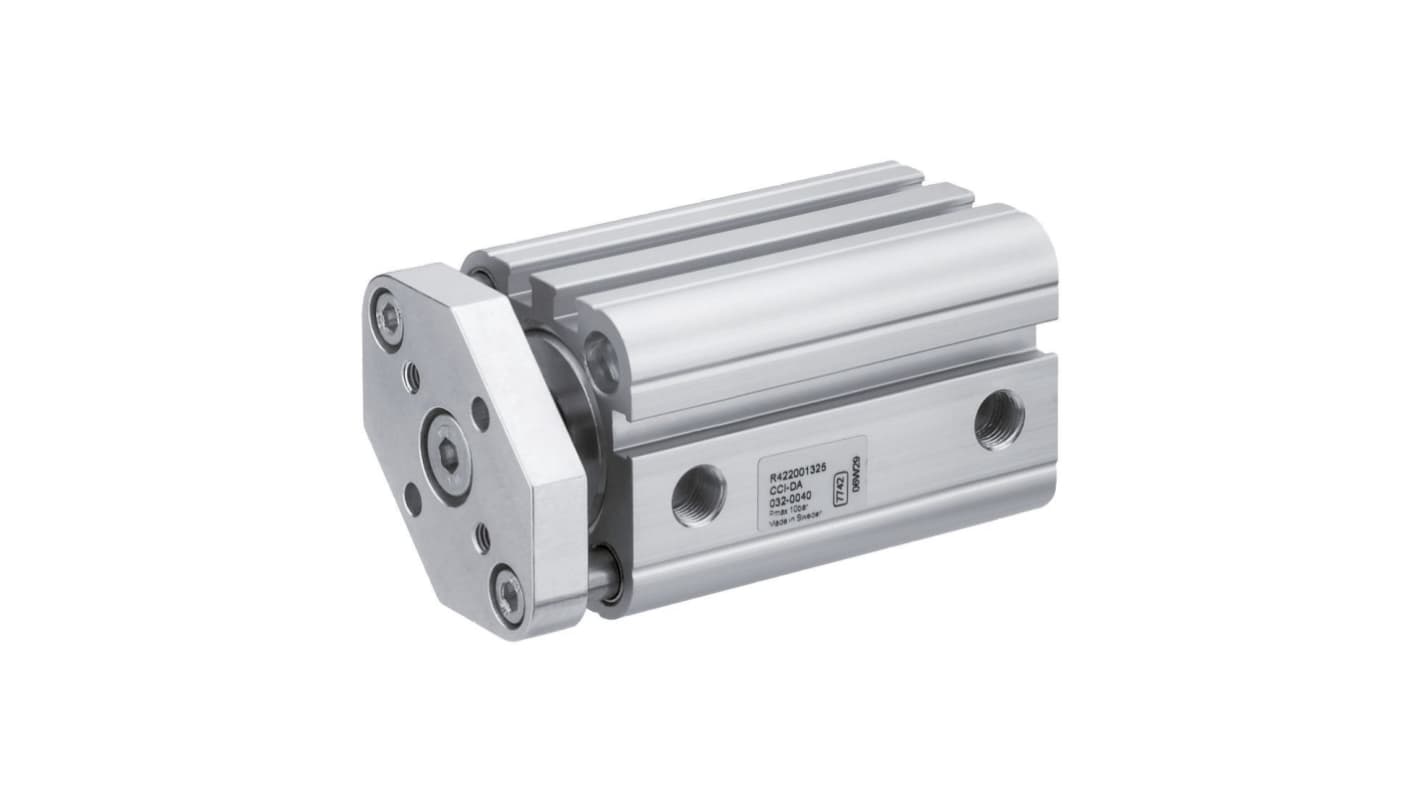

EMERSON – AVENTICS Pneumatic Cylinder - R422001295, 32mm Bore, 20mm Stroke, CCI Series, Double Acting
- RS Stock No.:
- 278-164
- Mfr. Part No.:
- R422001295
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£121.97
(exc. VAT)
£146.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £121.97 |
*price indicative
- RS Stock No.:
- 278-164
- Mfr. Part No.:
- R422001295
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | CCI | |
Model Number p | R422001295 | |
Action | Double | |
Bore | 32mm | |
Stroke | 20mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Dimensions | 44 x 32.5mm | |
Length | 44mm | |
Diameter | 32.5mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 21287 | |
VDMA Standard | ISO 21287 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series CCI | ||
Model Number p R422001295 | ||
Action Double | ||
Bore 32mm | ||
Stroke 20mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 44 x 32.5mm | ||
Length 44mm | ||
Diameter 32.5mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 21287 | ||
VDMA Standard ISO 21287 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- HU
The Aventics CCI cylinders stand for innovative, compact construction and an easy to clean design. It is ideal for long strokes and increased requirements for optimized cycle times and moving masses. The sensors can be installed quickly and easily on all sides and over the entire cylinder lengths.
Cylinder housing consists of a continuous aluminium profile with pressed in front and rear cover
Easy to clean design preventing the accumulation of dirt
Simple sensor assembly along the complete cylinder lengths
Available in piston diameters from 16 mm to 100 mm
Easy to clean design preventing the accumulation of dirt
Simple sensor assembly along the complete cylinder lengths
Available in piston diameters from 16 mm to 100 mm
