MPN

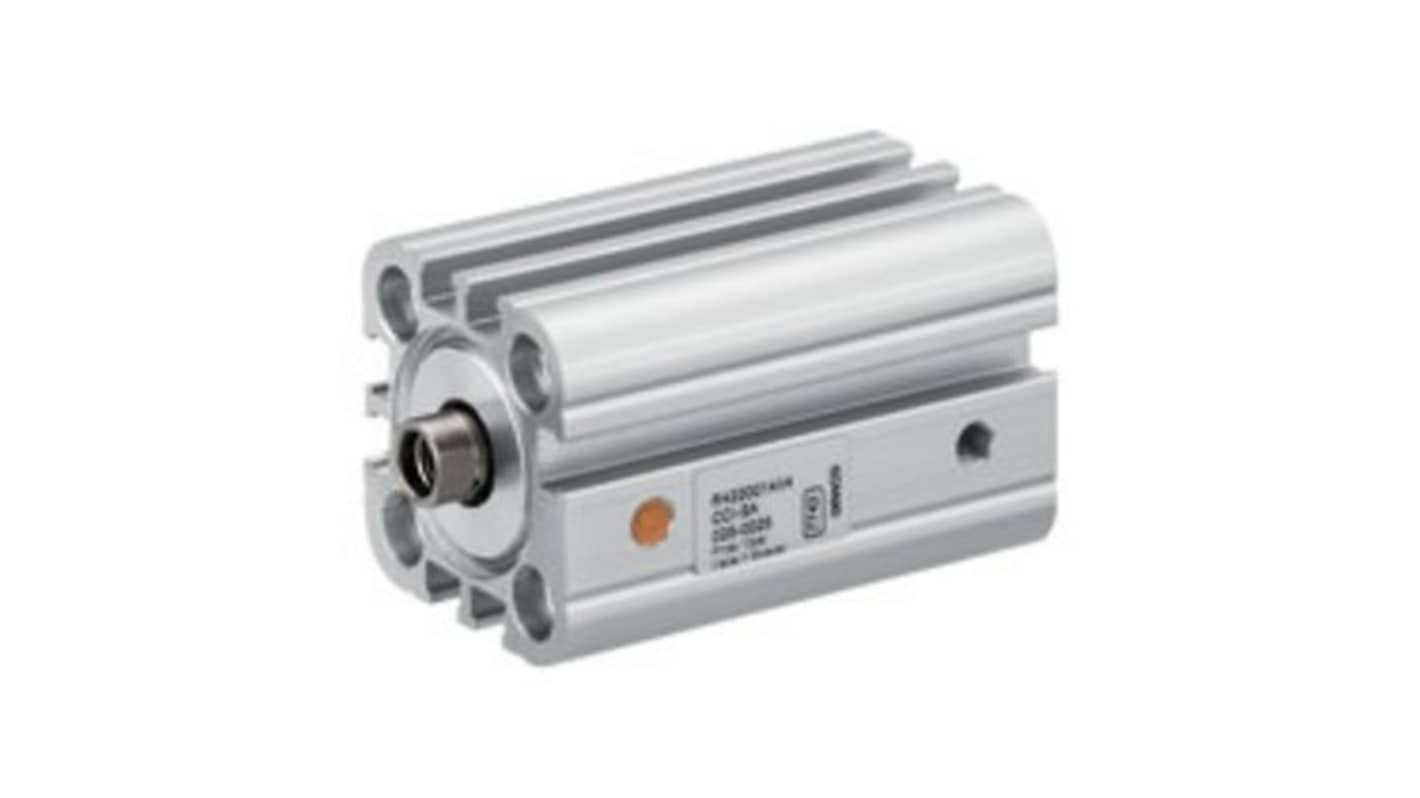

EMERSON – AVENTICS Pneumatic Compact Cylinder - R422001425, 32mm Bore, 20mm Stroke, CCI Series, Single Acting

Subtotal (1 unit)*

£72.64

(exc. VAT)

£87.17

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£72.64

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Manufacturer Series	CCI
	Model Number p	R422001425
	Stroke	20mm
	Bore	32mm
	Action	Single
	Pneumatic Connection	G 1/8
	Port Connection	G 1/8
	Piston Rod Thread Gender	Female
	Cushioning Type	Elastic
	Maximum Operating Pressure	10 bar
	ISO Standard	ISO 21287
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand EMERSON ? AVENTICS
	Manufacturer Series CCI
	Model Number p R422001425
	Stroke 20mm
	Bore 32mm
	Action Single
	Pneumatic Connection G 1/8
	Port Connection G 1/8
	Piston Rod Thread Gender Female
	Cushioning Type Elastic
	Maximum Operating Pressure 10 bar
	ISO Standard ISO 21287
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -20°C
