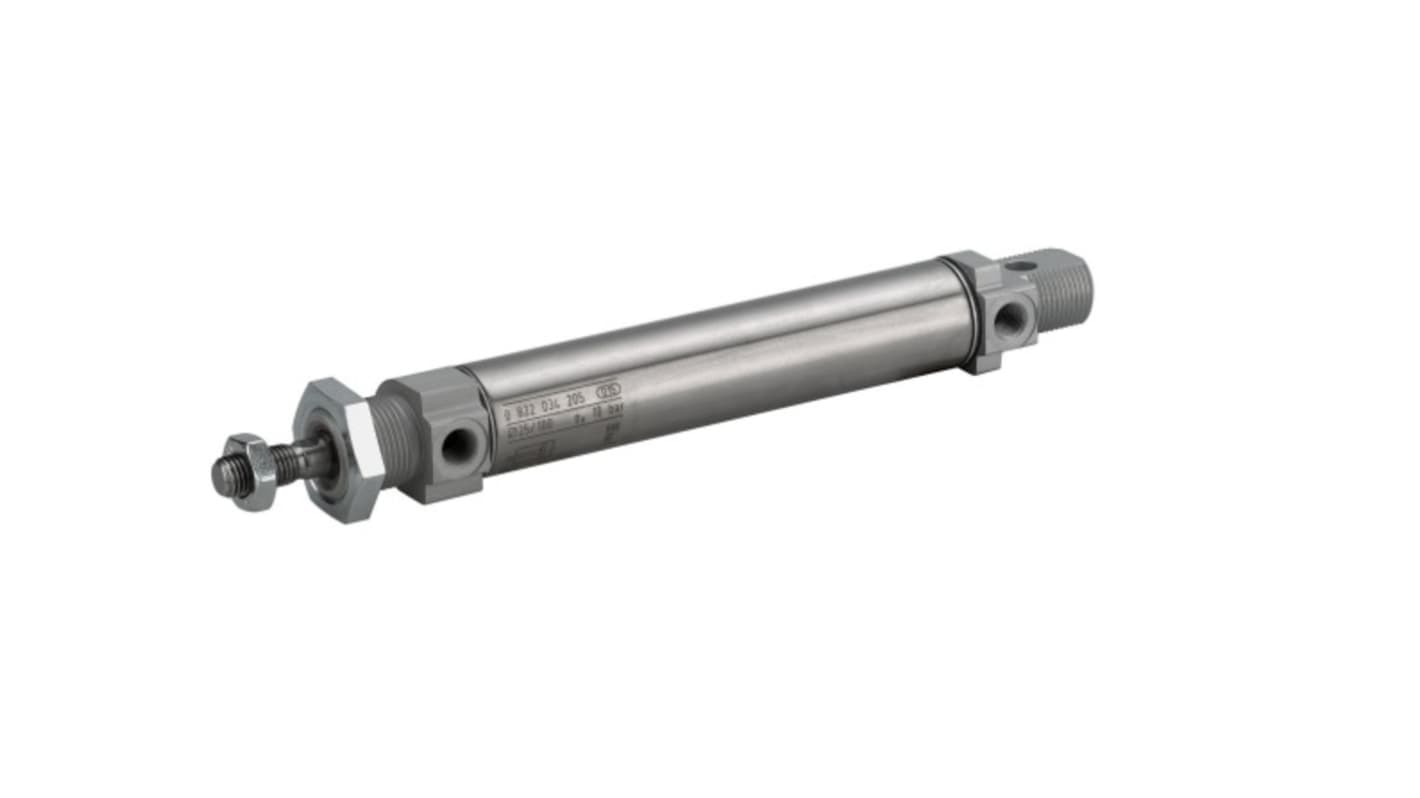

EMERSON – AVENTICS Roundline Cylinder - 0822332505, 16mm Bore, 10mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 274-996
- Mfr. Part No.:
- 0822332501
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£67.89
(exc. VAT)
£81.47
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £67.89 |
*price indicative
- RS Stock No.:
- 274-996
- Mfr. Part No.:
- 0822332501
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | MNI | |
Model Number p | 0822332505 | |
Action | Double | |
Stroke | 10mm | |
Bore | 16mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Model Number p 0822332505 | ||
Action Double | ||
Stroke 10mm | ||
Bore 16mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- HU
The Aventics MNI Series Mini Cylinder offers versatile configurations, including single/through piston rod, elastic/adjusted cushioning, and options for magnetic detection. It features a non rotating piston rod for enhanced stability and precision. Designed for demanding environments, this mini cylinder is also ATEX certified, making it suitable for use in explosive atmospheres.
Robust and space-saving design
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm
Characterized by extreme durability and a long service life
Offers piston diameters from 10 mm to 25 mm
