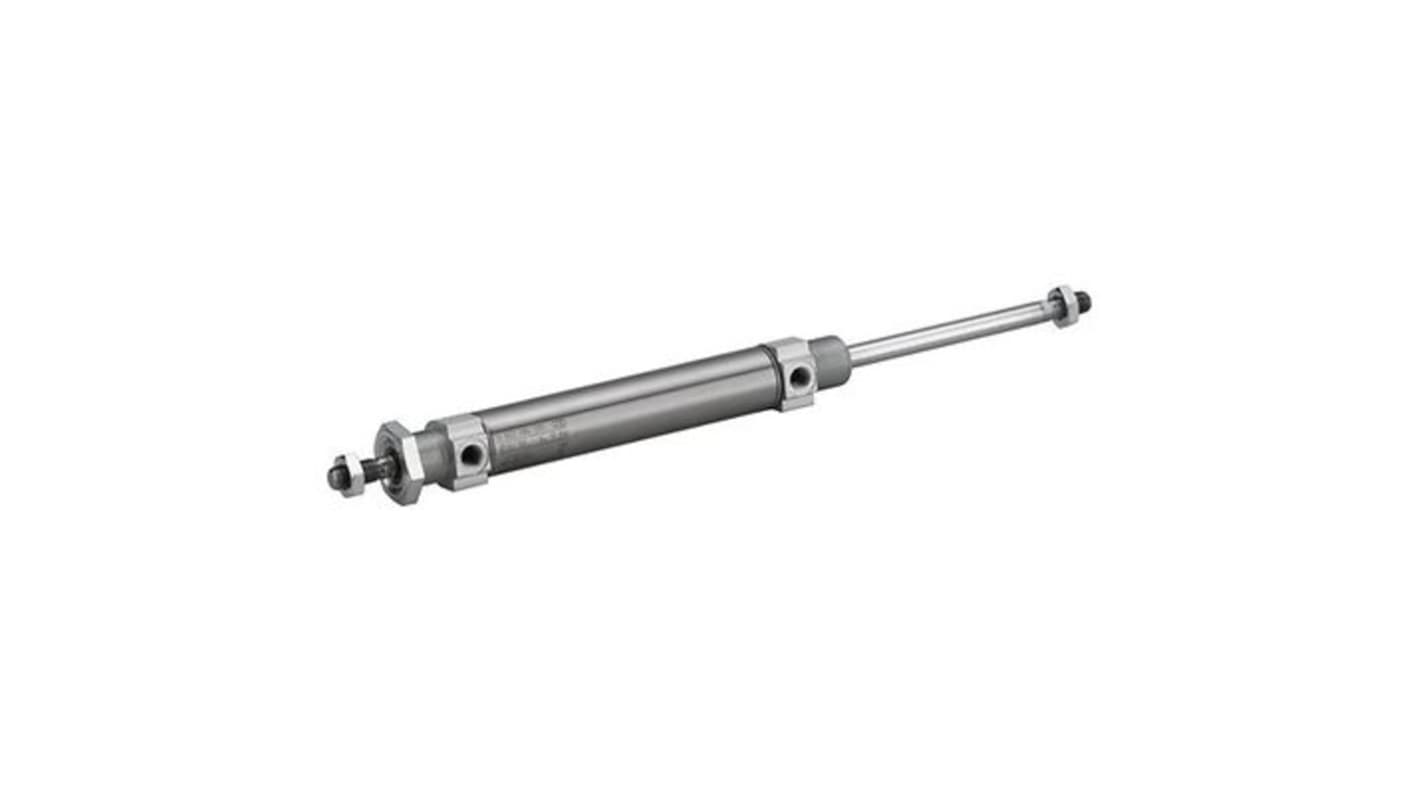

EMERSON – AVENTICS Roundline Cylinder - 0822080201, 10mm Bore, 10mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 274-823
- Mfr. Part No.:
- 0822080201
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£66.71
(exc. VAT)
£80.05
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £66.71 |
*price indicative
- RS Stock No.:
- 274-823
- Mfr. Part No.:
- 0822080201
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | MNI | |
Model Number p | 0822080201 | |
Stroke | 10mm | |
Bore | 10mm | |
Action | Double | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Model Number p 0822080201 | ||
Stroke 10mm | ||
Bore 10mm | ||
Action Double | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- HU
The Aventics mini cylinder from the aventics Series MNI (ISO 6432) is engineered for versatility and durability in general machine construction. With a robust construction and a long service life, it expertly meets the demands of various industrial applications. The double-acting functional principle coupled with elastic cushioning ensures smooth operation and effective performance across a broad range of tasks. Designed to operate under rigorous conditions, it boasts an extensive temperature tolerance and pressure capability. Ideal for utilisation in competitive environments, this innovative product is a reliable choice for enhancing automation efficiency and responsiveness in your operations.
Engineered for double-acting functionality, promoting efficient operation
Elastic cushioning enhances durability while minimising impact wear
Manufactured with stainless steel and brass materials for superior strength
ATEX certification options available for safety in explosive environments
Compact design enables seamless integration into existing systems
Wide operating temperature range accommodates diverse applications
Lightweight construction eases installation and reduces overall system strain
Compatible with various media, ensuring flexibility in usage
Low maintenance requirements support continuous operation
Customisable configurations enhance adaptability for unique project needs
Elastic cushioning enhances durability while minimising impact wear
Manufactured with stainless steel and brass materials for superior strength
ATEX certification options available for safety in explosive environments
Compact design enables seamless integration into existing systems
Wide operating temperature range accommodates diverse applications
Lightweight construction eases installation and reduces overall system strain
Compatible with various media, ensuring flexibility in usage
Low maintenance requirements support continuous operation
Customisable configurations enhance adaptability for unique project needs
