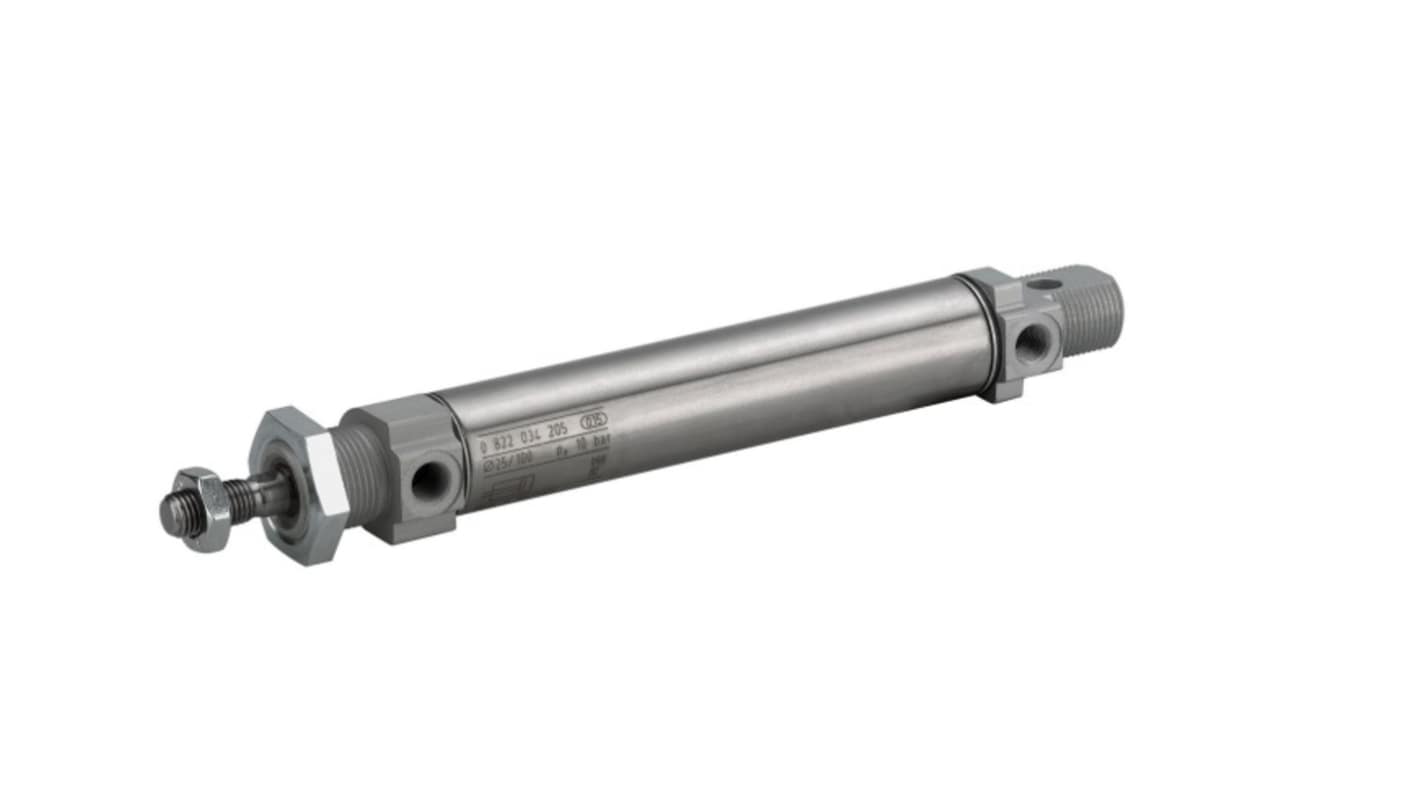

EMERSON – AVENTICS Roundline Cylinder - 0822332201, 16mm Bore, 10mm Stroke, MNI Series, Double Acting
- RS Stock No.:
- 274-984
- Mfr. Part No.:
- 0822332201
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£58.44
(exc. VAT)
£70.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £58.44 |
*price indicative
- RS Stock No.:
- 274-984
- Mfr. Part No.:
- 0822332201
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | MNI | |
Model Number p | 0822332201 | |
Stroke | 10mm | |
Action | Double | |
Bore | 16mm | |
Port Connection | M5 | |
Pneumatic Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series MNI | ||
Model Number p 0822332201 | ||
Stroke 10mm | ||
Action Double | ||
Bore 16mm | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- HU
The Aventics mini cylinder from aventics, part of the Series MNI, represents a pinnacle of engineering excellence for general machine construction. Designed to meet the ISO 6432 standard, it offers a robust construction and exceptional service life, making it a reliable choice for various industrial applications. The double-acting cylinder features elastic cushioning and a magnetic piston, ensuring smooth operation while accommodating a wide range of environmental conditions. With a broad ambient temperature tolerance and the option for ATEX certification, it is built to perform reliably in both standard and hazardous environments. Whether youre looking to enhance operational efficiency or reduce maintenance costs, this mini cylinder stands out as a versatile solution, successfully marrying functionality with durability.
Offers a comprehensive stroke range of up to 800 mm for adaptable performance
Features a compact design that saves valuable installation space
Equipped with a standard industry scraper that enhances longevity
Allowable working pressures range up to 10 bar, offering flexible application options
Incorporates stainless steel and aluminium components for durability and resistance to wear
Fitted with magnetic sensors to enable precise position detection
Capable of withstanding extreme temperatures, from -25 °C to 80 °C, suitable for diverse operational settings
Low impact energy ensures minimal risk during machinery operation
Quick and easy installation reduces downtime and boosts productivity
Features a compact design that saves valuable installation space
Equipped with a standard industry scraper that enhances longevity
Allowable working pressures range up to 10 bar, offering flexible application options
Incorporates stainless steel and aluminium components for durability and resistance to wear
Fitted with magnetic sensors to enable precise position detection
Capable of withstanding extreme temperatures, from -25 °C to 80 °C, suitable for diverse operational settings
Low impact energy ensures minimal risk during machinery operation
Quick and easy installation reduces downtime and boosts productivity
