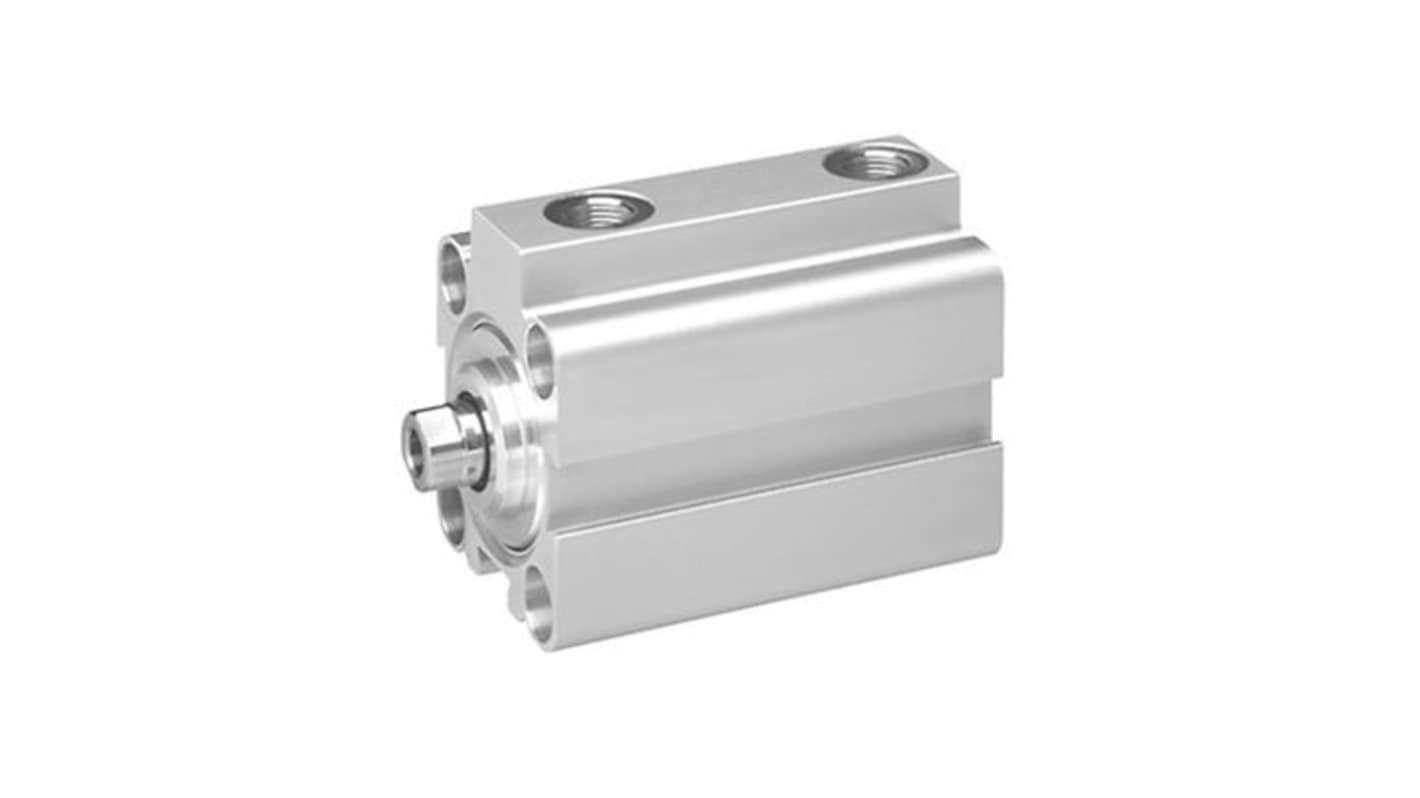

EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010661, 50mm Bore, 10mm Stroke, KHZ Series, Double Acting
- RS Stock No.:
- 273-588
- Mfr. Part No.:
- 0822010661
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£104.12
(exc. VAT)
£124.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £104.12 |
*price indicative
- RS Stock No.:
- 273-588
- Mfr. Part No.:
- 0822010661
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KHZ | |
Model Number p | 0822010661 | |
Bore | 50mm | |
Action | Double | |
Stroke | 10mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Stroke Interval Weight | 0.074 @ 10 mm kg/mm | |
Test Weight | 0.388 kg | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KHZ | ||
Model Number p 0822010661 | ||
Bore 50mm | ||
Action Double | ||
Stroke 10mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 0.074 @ 10 mm kg/mm | ||
Test Weight 0.388 kg | ||
- COO (Country of Origin):
- HU
The Aventics Series KHZ short-stroke cylinder is engineered specifically for compact installation spaces, providing efficient performance without compromise. Crafted for seamless integration within various machinery, it embodies reliability and precision in operation. This double-acting cylinder is designed with elastic cushioning to minimise impact, ensuring longevity and consistent performance even in challenging environments. Its robust construction, utilising quality materials such as aluminium and stainless steel, enhances durability while meeting industry standards for environmental requirements. With a comprehensive range of specifications, this short-stroke cylinder offers optimal functionality, making it an excellent choice for automating complex processes.
Designed for tight installation spaces
Ensures easy and safe machinery integration
Constructed with high-quality materials for enhanced durability
Meets industry-standard environmental requirements
Features elastic cushioning for reduced impact forces
Offers double-acting functionality for versatile application
Capable of operating in extreme temperature ranges
Provides consistent performance under varying pressure conditions
Compatible with a range of accessories for tailored solutions
Ensures easy and safe machinery integration
Constructed with high-quality materials for enhanced durability
Meets industry-standard environmental requirements
Features elastic cushioning for reduced impact forces
Offers double-acting functionality for versatile application
Capable of operating in extreme temperature ranges
Provides consistent performance under varying pressure conditions
Compatible with a range of accessories for tailored solutions
