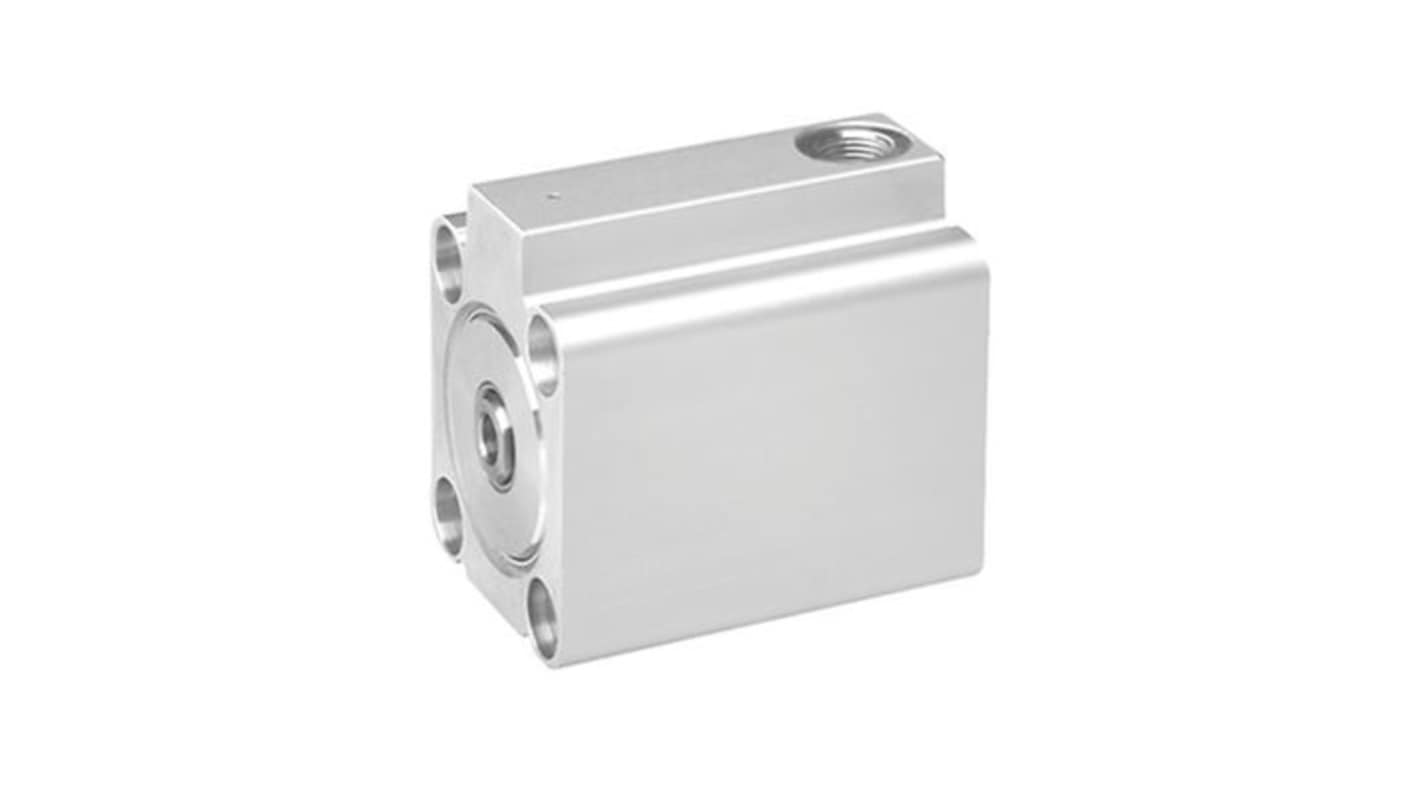

EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822406461, 50mm Bore, 10mm Stroke, KHZ Series, Single Acting
- RS Stock No.:
- 273-657
- Mfr. Part No.:
- 0822406461
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£117.93
(exc. VAT)
£141.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £117.93 |
*price indicative
- RS Stock No.:
- 273-657
- Mfr. Part No.:
- 0822406461
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KHZ | |
Model Number p | 0822406461 | |
Stroke | 10mm | |
Bore | 50mm | |
Action | Single | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +80°C | |
Weight | 490g | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KHZ | ||
Model Number p 0822406461 | ||
Stroke 10mm | ||
Bore 50mm | ||
Action Single | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +80°C | ||
Weight 490g | ||
- COO (Country of Origin):
- HU
The Aventics short-stroke cylinder, Series KHZ, is meticulously designed for operations where space is at a premium, enabling effective integration into compact machinery. This innovative product features a robust single-acting design that retracts effortlessly without requiring pressure, ensuring smooth functionality even in challenging environments. With a piston diameter of 50 mm and a stroke length of 10 mm, it provides exceptional performance while maintaining energy efficiency. The cylinder is constructed to meet stringent industry standards, making it an ideal choice for various applications. Its elastic cushioning and magnetic piston further enhance operational reliability, ensuring that it meets strenuous operational demands while promoting continuous performance in industrial settings.
Compact design for fitting into tight installation spaces
Single-acting piston enhances efficiency by retracting without pressure
Elastic cushioning for reduced mechanical stress and improved longevity
Magnetic piston facilitating easy detection and control
Designed to operate effectively in humid and temperature-variable conditions
Stainless steel piston rod provides enhanced durability
Aluminium construction ensures robust performance without excessive weight
Compliant with environmental and industry standards for operational safety
Single-acting piston enhances efficiency by retracting without pressure
Elastic cushioning for reduced mechanical stress and improved longevity
Magnetic piston facilitating easy detection and control
Designed to operate effectively in humid and temperature-variable conditions
Stainless steel piston rod provides enhanced durability
Aluminium construction ensures robust performance without excessive weight
Compliant with environmental and industry standards for operational safety
