MPN

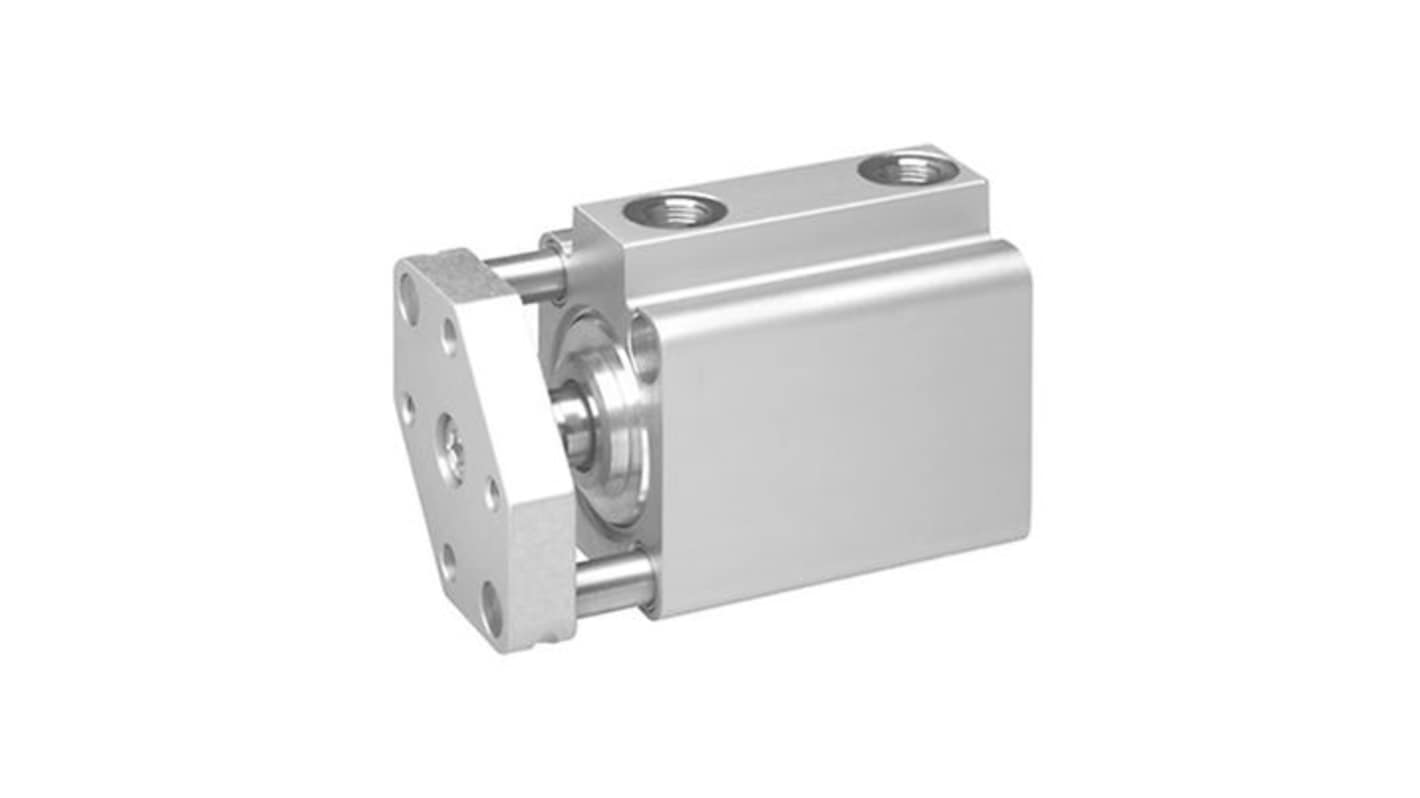

EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010733, 25mm Bore, 20mm Stroke, KHZ Series, Double Acting

Subtotal (1 unit)*

£131.12

(exc. VAT)

£157.34

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£131.12

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	EMERSON ? AVENTICS
	Manufacturer Series	KHZ
	Model Number p	0822010733
	Action	Double
	Stroke	20mm
	Bore	25mm
	Pneumatic Connection	G 1/8
	Port Connection	G 1/8
	Piston Rod Thread Gender	Female
	Cushioning Type	Elastic
	Maximum Operating Pressure	10 bar
	Maximum Operating Temperature	+80°C
	Stroke Interval Weight	0.034 @ 10 mm kg/mm
	Test Weight	0.178 kg
	Minimum Operating Temperature	-25°C

	Select all
	Brand EMERSON ? AVENTICS
	Manufacturer Series KHZ
	Model Number p 0822010733
	Action Double
	Stroke 20mm
	Bore 25mm
	Pneumatic Connection G 1/8
	Port Connection G 1/8
	Piston Rod Thread Gender Female
	Cushioning Type Elastic
	Maximum Operating Pressure 10 bar
	Maximum Operating Temperature +80°C
	Stroke Interval Weight 0.034 @ 10 mm kg/mm
	Test Weight 0.178 kg
	Minimum Operating Temperature -25°C
