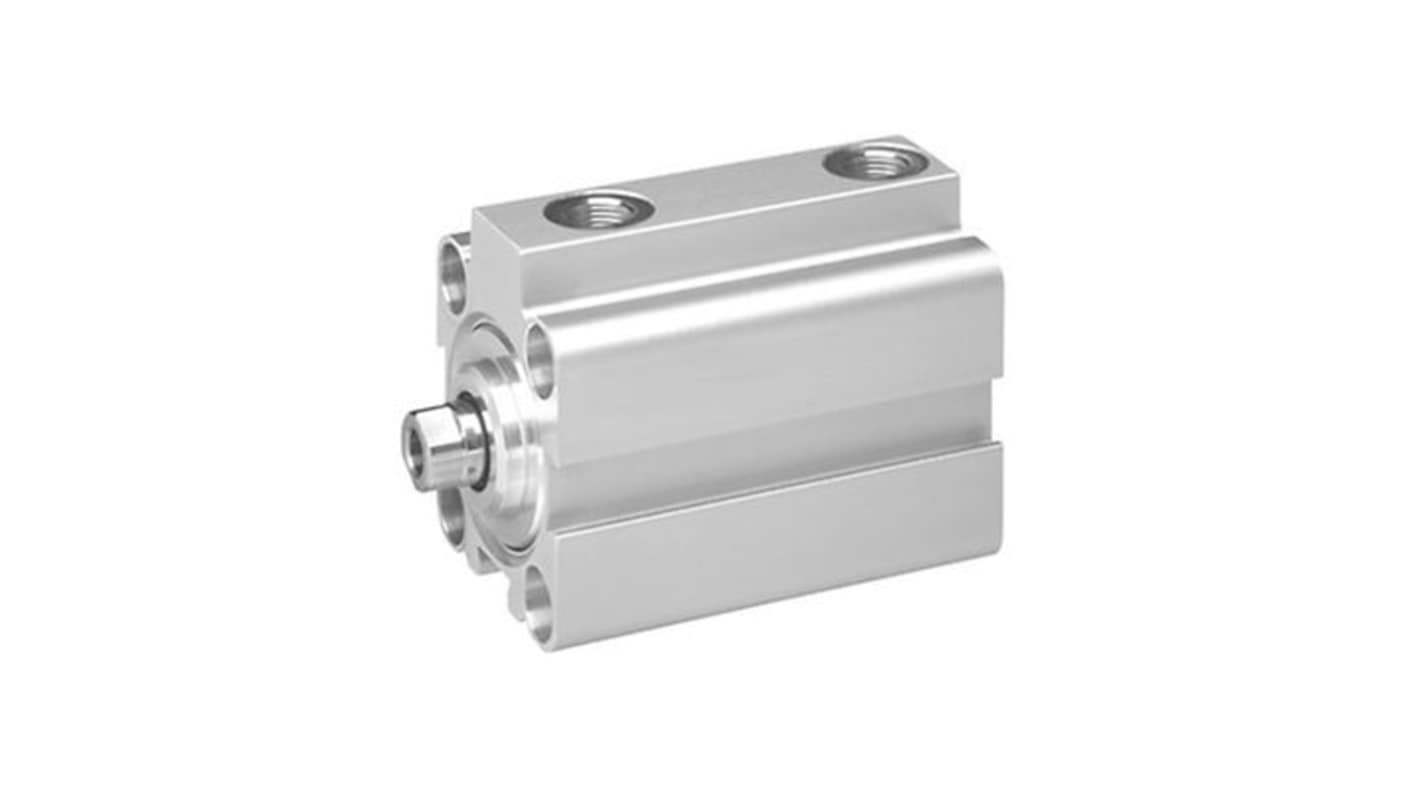

EMERSON – AVENTICS Pneumatic Piston Rod Cylinder - 0822010663, 50mm Bore, 20mm Stroke, KHZ Series, Double Acting
- RS Stock No.:
- 273-590
- Mfr. Part No.:
- 0822010663
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£111.04
(exc. VAT)
£133.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £111.04 |
*price indicative
- RS Stock No.:
- 273-590
- Mfr. Part No.:
- 0822010663
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | KHZ | |
Model Number p | 0822010663 | |
Action | Double | |
Stroke | 20mm | |
Bore | 50mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Female | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -25°C | |
Stroke Interval Weight | 0.074 @ 10 mm kg/mm | |
Test Weight | 0.388 kg | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series KHZ | ||
Model Number p 0822010663 | ||
Action Double | ||
Stroke 20mm | ||
Bore 50mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Female | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -25°C | ||
Stroke Interval Weight 0.074 @ 10 mm kg/mm | ||
Test Weight 0.388 kg | ||
- COO (Country of Origin):
- HU
The Aventics Series KHZ short-stroke cylinder is specifically engineered for applications requiring compact designs without compromising performance. With its innovative double-acting functional principle, this cylinder is ideal for tight installation spaces, providing reliable actuation in diverse industrial environments. Designed to be both effective and efficient, it offers elastic cushioning and a magnetic piston for accurate positioning. This cylinder not only meets industry standards but also ensures easy integration into existing machinery, allowing for seamless upgrades. With a maximum working pressure of 10 bar and a stroke range catering to various needs, it delivers consistent performance while ensuring durability across a range of temperatures and operational conditions. The robust construction from high-quality materials positions this cylinder as a dependable component for any pneumatic system.
Compact design allows for integration in space-constrained environments
Double-acting functionality maximises efficiency and operational flexibility
Elastic cushioning enhances the life expectancy of moving parts
Magnetic piston ensures precise positioning and reliable operation
Constructed from premium materials for enhanced durability and performance
Compatible with a wide temperature range, ensuring adaptability in various settings
Easy installation and maintenance simplify the integration process
Reliable performance under a maximum working pressure of 10 bar
Designed to optimise air consumption and reduce operational costs
Supports both standard and customised configurations for diverse applications
Double-acting functionality maximises efficiency and operational flexibility
Elastic cushioning enhances the life expectancy of moving parts
Magnetic piston ensures precise positioning and reliable operation
Constructed from premium materials for enhanced durability and performance
Compatible with a wide temperature range, ensuring adaptability in various settings
Easy installation and maintenance simplify the integration process
Reliable performance under a maximum working pressure of 10 bar
Designed to optimise air consumption and reduce operational costs
Supports both standard and customised configurations for diverse applications
