EMERSON ? AVENTICS Pneumatic Guided Cylinder - 0822061102, 16mm Bore, 30mm Stroke, GPC Series, Double Acting
- RS Stock No.:
- 272-199
- Mfr. Part No.:
- 0822061102
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£371.48
(exc. VAT)
£445.78
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £371.48 |
*price indicative
- RS Stock No.:
- 272-199
- Mfr. Part No.:
- 0822061102
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | GPC | |
Model Number p | 0822061102 | |
Action | Double | |
Bore | 16mm | |
Stroke | 30mm | |
Port Connection | M5 | |
Pneumatic Connection | M5 | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 10 bar | |
Maximum Operating Temperature | +70°C | |
Piston Speed | 500mm/s | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series GPC | ||
Model Number p 0822061102 | ||
Action Double | ||
Bore 16mm | ||
Stroke 30mm | ||
Port Connection M5 | ||
Pneumatic Connection M5 | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +70°C | ||
Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- HU

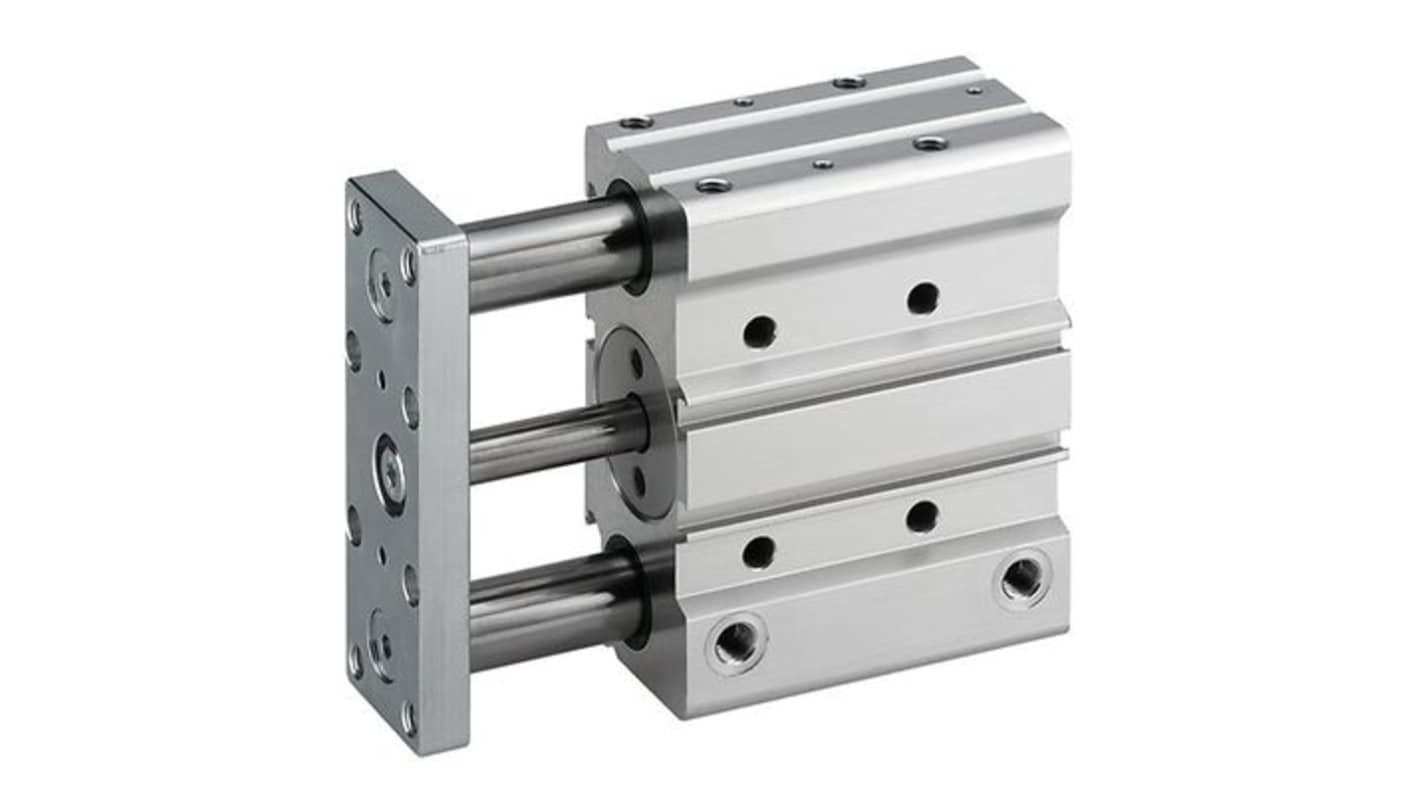

The Aventics Guide Cylinder from the GPC-BV series is engineered for robust performance in demanding industrial applications. This double-acting cylinder features a compact design expertly crafted to handle significant side loads and providing torsional stability. Designed to operate efficiently under various conditions, it delivers durability and precision thanks to its strong aluminium housing and high-quality polyurethane seals. Ideal for compressed air use, this cylinder is perfect for tasks requiring rapid retraction and extraction of loads.
Stainless steel piston rod enhance durability and longevity
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use
