EMERSON ? AVENTICS Pneumatic Guided Cylinder - 0822061004, 16mm Bore, 50mm Stroke, GPC Series, Double Acting
- RS Stock No.:
- 272-192
- Mfr. Part No.:
- 0822061004
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£289.61
(exc. VAT)
£347.53
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £289.61 |
*price indicative
- RS Stock No.:
- 272-192
- Mfr. Part No.:
- 0822061004
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | GPC | |
Model Number p | 0822061004 | |
Stroke | 50mm | |
Bore | 16mm | |
Action | Double | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 8 bar | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -10°C | |
Piston Speed | 500mm/s | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series GPC | ||
Model Number p 0822061004 | ||
Stroke 50mm | ||
Bore 16mm | ||
Action Double | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 8 bar | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -10°C | ||
Piston Speed 500mm/s | ||
- COO (Country of Origin):
- HU

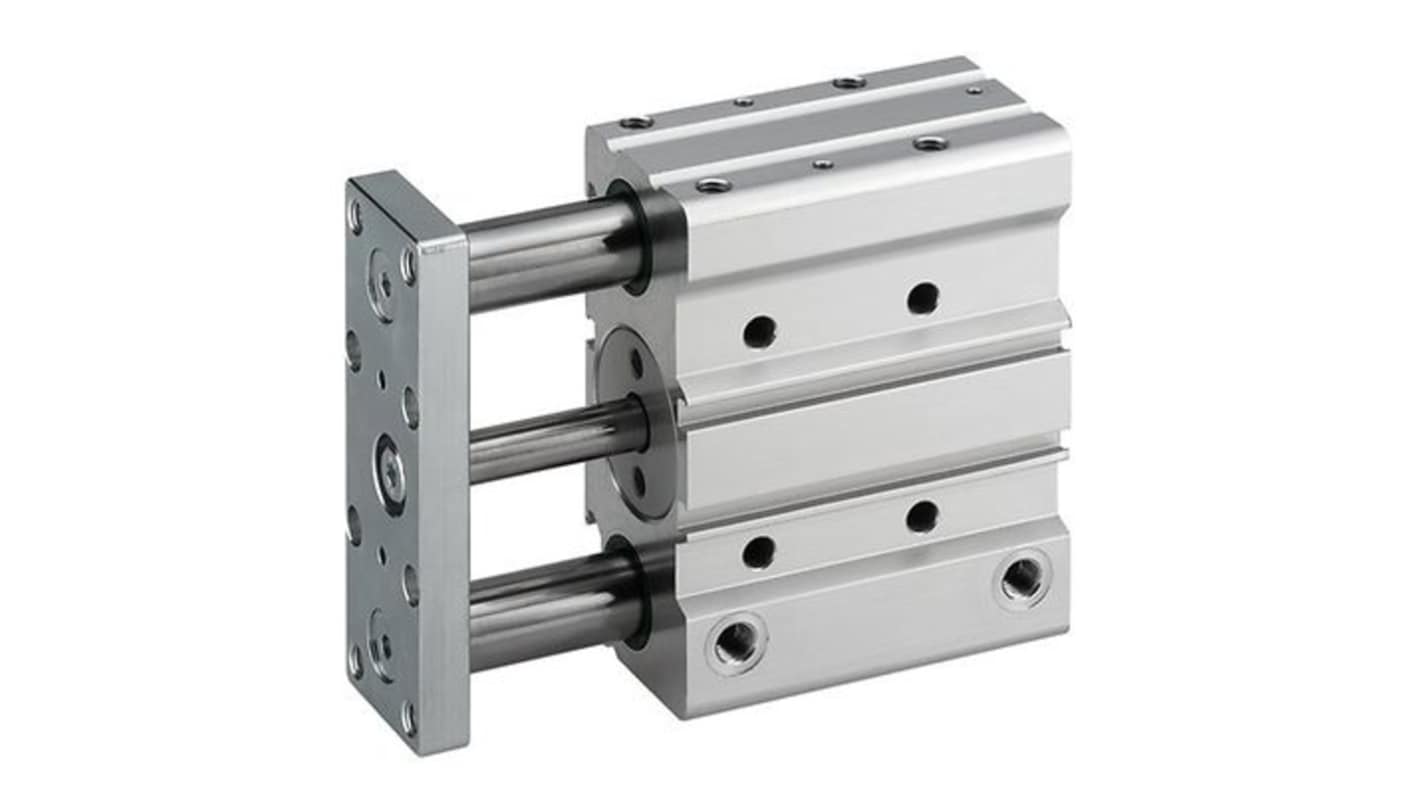

The Aventics Guide Cylinder from the GPC-BV series is engineered for robust performance in demanding industrial applications. This double-acting cylinder features a compact design expertly crafted to handle significant side loads and providing torsional stability. Designed to operate efficiently under various conditions, it delivers durability and precision thanks to its strong aluminium housing and high-quality polyurethane seals. Ideal for compressed air use, this cylinder is perfect for tasks requiring rapid retraction and extraction of loads.
Stainless steel piston rod enhance durability and longevity
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use
Wide operating temperature range accommodates diverse working conditions
Integrated cushioning provides smooth and controlled piston movement
Adaptable design fits various mounting options for versatile use
