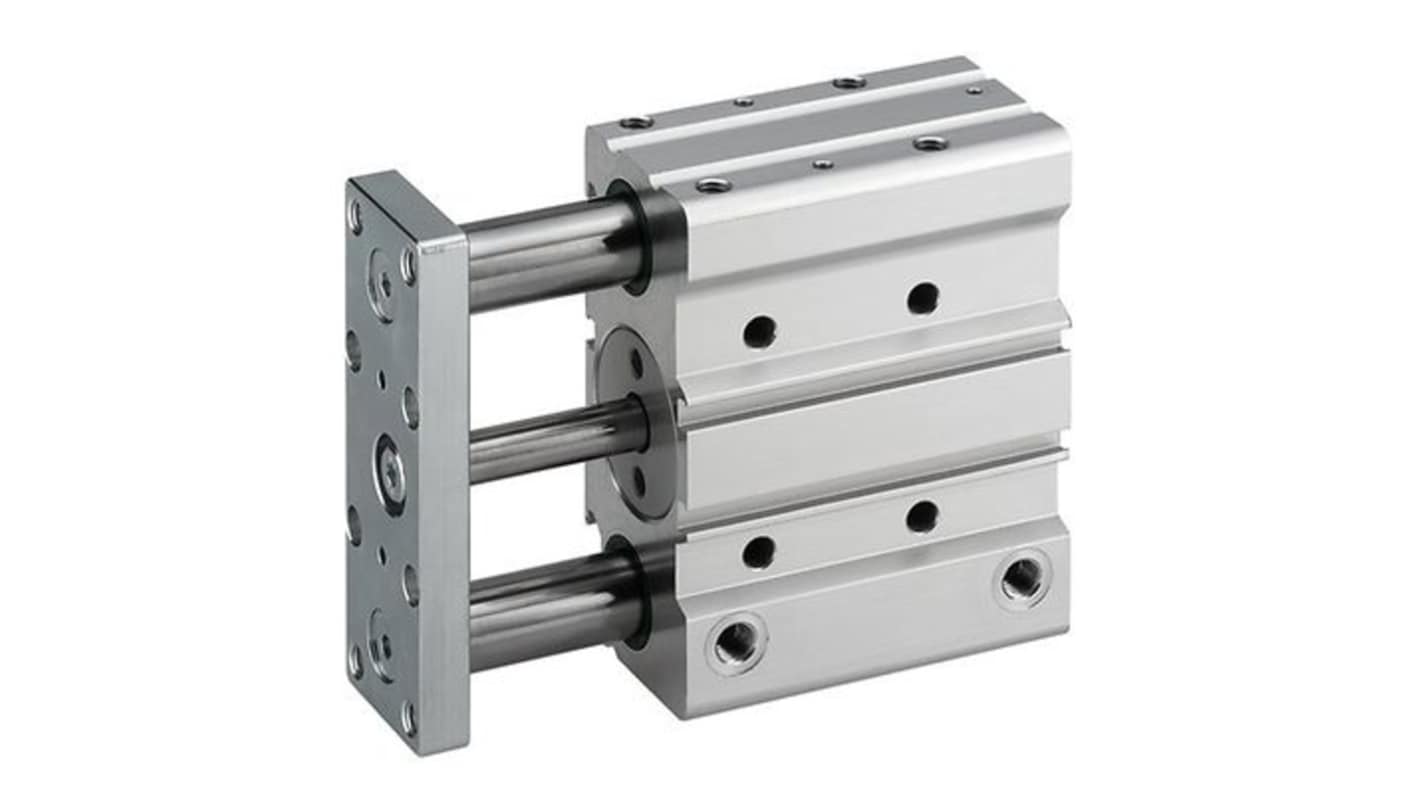

EMERSON – AVENTICS Pneumatic Guided Cylinder - 0822064001, 32mm Bore, 50mm Stroke, GPC Series, Double Acting
- RS Stock No.:
- 272-727
- Mfr. Part No.:
- 0822064001
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£442.88
(exc. VAT)
£531.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £442.88 |
*price indicative
- RS Stock No.:
- 272-727
- Mfr. Part No.:
- 0822064001
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Manufacturer Series | GPC | |
Model Number p | 0822064001 | |
Action | Double | |
Bore | 32mm | |
Stroke | 50mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Cushioning Type | Elastic | |
Maximum Operating Pressure | 8 bar | |
Maximum Operating Temperature | +70°C | |
Piston Speed | 600mm/s | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Manufacturer Series GPC | ||
Model Number p 0822064001 | ||
Action Double | ||
Bore 32mm | ||
Stroke 50mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Cushioning Type Elastic | ||
Maximum Operating Pressure 8 bar | ||
Maximum Operating Temperature +70°C | ||
Piston Speed 600mm/s | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- HU
The Aventics guide cylinder from aventics, part of the Series GPC-BV, embodies a robust design tailored for high-performance applications. With a piston diameter of 32 mm and a maximum stroke of 50 mm, this cylinder is engineered to handle demanding tasks whilst providing excellent side load capacity and torsion protection. The double-acting functional principle ensures efficient operation, making it an ideal solution in industrial environments. Its lightweight yet sturdy aluminium housing, combined with precision-engineered components, not only enhances durability but also simplifies installation and maintenance. The innovative design integrates a magnetic piston for improved performance, adding to its reliability in various applications. This product raises the bar for pneumatic automation by delivering a combination of power, precision, and adaptability.
High side load capacity enhances operational efficiency
Lightweight aluminium housing ensures easy installation
Double-acting functional principle improves performance consistency
Robust design integrates torsion protection for added reliability
Built-in magnetic piston enhances operational effectiveness
Versatile in various industrial applications for enhanced productivity
Low maintenance requirements for ongoing operational savings
Precision-engineered components offer long service life
Lightweight aluminium housing ensures easy installation
Double-acting functional principle improves performance consistency
Robust design integrates torsion protection for added reliability
Built-in magnetic piston enhances operational effectiveness
Versatile in various industrial applications for enhanced productivity
Low maintenance requirements for ongoing operational savings
Precision-engineered components offer long service life
