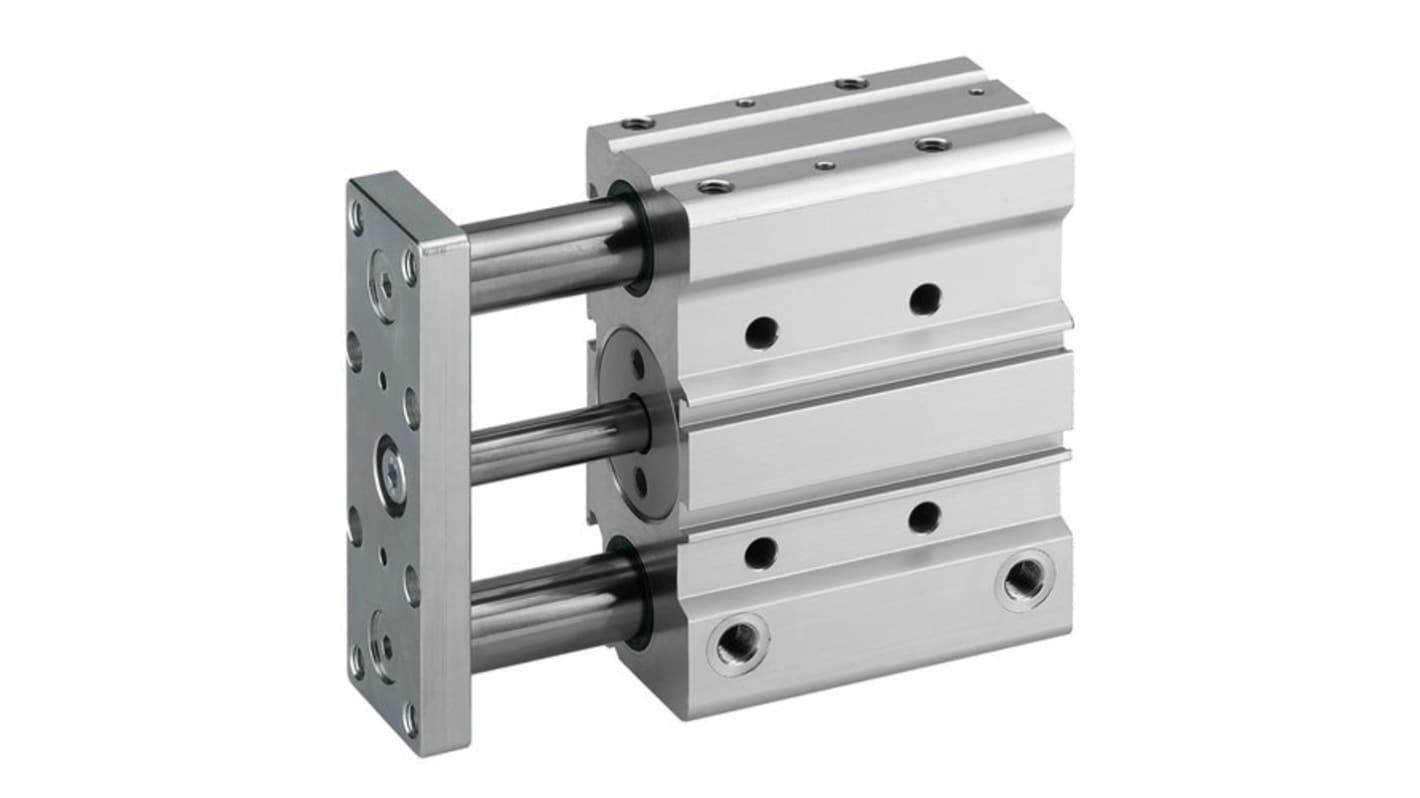

EMERSON – AVENTICS Pneumatic Guided Cylinder - 25 mm Bore, GPC-BV Series, 30 mm Double Acting Acting
- RS Stock No.:
- 703-6337
- Mfr. Part No.:
- 0822063002
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£456.29
(exc. VAT)
£547.55
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £456.29 |
*price indicative
- RS Stock No.:
- 703-6337
- Mfr. Part No.:
- 0822063002
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? AVENTICS | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 25mm | |
| Series | GPC-BV | |
| Action Type | Double Acting | |
| Mount Type | Through Hole | |
| Maximum Operating Pressure | 8 bar | |
| Cushioning Type | Elastic | |
| Body Material | Aluminium | |
| Piston Rod Thread Standard | G | |
| Piston Rod Thread Size | 1/8 in G | |
| Maximum Piston Speed | 0.8mm/s | |
| Minimum Operating Temperature | -10°C | |
| Guide Type | Slide Bearing | |
| Rod Type | Single | |
| Maximum Operating Temperature | 70°C | |
| Height | 95mm | |
| Weight | 1.1kg | |
| Standards/Approvals | No | |
| Width | 43mm | |
| Stroke Length | 30mm | |
| Length | 87.5mm | |
| Select all | ||
|---|---|---|
Brand EMERSON ? AVENTICS | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 25mm | ||
Series GPC-BV | ||
Action Type Double Acting | ||
Mount Type Through Hole | ||
Maximum Operating Pressure 8 bar | ||
Cushioning Type Elastic | ||
Body Material Aluminium | ||
Piston Rod Thread Standard G | ||
Piston Rod Thread Size 1/8 in G | ||
Maximum Piston Speed 0.8mm/s | ||
Minimum Operating Temperature -10°C | ||
Guide Type Slide Bearing | ||
Rod Type Single | ||
Maximum Operating Temperature 70°C | ||
Height 95mm | ||
Weight 1.1kg | ||
Standards/Approvals No | ||
Width 43mm | ||
Stroke Length 30mm | ||
Length 87.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- SE
Bosch Rexroth Series GPC Guide Cylinder
Robust, double-acting guide cylinders with magnetic piston. Bosch Rexroth Guide Cylinders include top and side ports, and feature stainless steel guide rods. The plain-bearing cylinders offer elastic cushioning, and may be directly mounted to one another. Guide cylinders are suitable for use within operating environments from -10 to 70°C.
Bosch Rexroth GPC Guide Cylinder
